DIN Blanks

Description

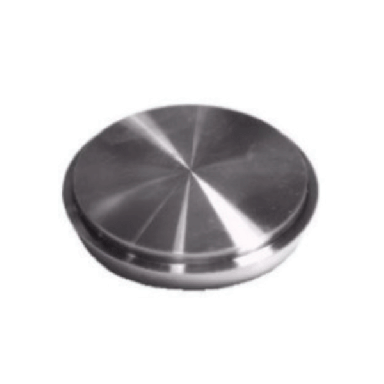

ACL DIN Blanks are manufactured in accordance with DIN 11851 for use in Food & Beverage and Dairy process systems. Used in conjunction with a DIN nut to provide a hygienic end closure for DIN union connections. Produced from 316L stainless steel with a high-quality surface finish.

Specifications

Standard: DIN 11851
Surface finish: 0.8Ra µm minimum
Materials comply with AD2000 (PED) and ASME VIII

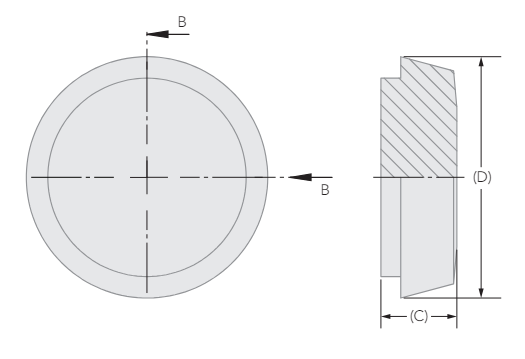

Dimensional Image

Features

Manufactured to DIN 11851 standard
Provides hygienic end closure for DIN union connections
Used in conjunction with DIN nuts
Produced from 316L stainless steel
High-quality surface finish for hygienic compliance
Available in a full range of sizes

Materials

Material: 316L Stainless Steel as standard

Data Center

ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

Industry PART#	Product Name	Standard	Type	Size Metric	Material	Add To Cart LIST PRICE
Hygienic BLDI000130156L	DIN Union (10mm) \| Blank \| 316L	DIN	Blank	DN 10(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (10mm) \| Blank \| 316L Legacy Part Number IE: BKDI0010 Legacy Part Number UK: BKDI0010 Legacy Part Number DK: BKDI0010 Dimensional Image Key: • Length (C) mm: 9 • OD (D) mm: 22.5 • OD (H) mm: 22.5 • Thickness (T) mm: 9 • Length (C) in: 0.35 • OD (D) in: 0.89 • OD 2 (H) in: 0.89" • Thickness (T) in: 0.35"
Hygienic BLDI000190156L	DIN Union (15mm) \| Blank \| 316L	DIN	Blank	DN 15(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (15mm) \| Blank \| 316L Legacy Part Number IE: BKDI0015 Legacy Part Number UK: BKDI0015 Legacy Part Number DK: BKDI0015 Dimensional Image Key: • Length (C) mm: 9 • OD (D) mm: 28.5 • OD (H) mm: 28.5 • Thickness (T) mm: 9 • Length (C) in: 0.35 • OD (D) in: 1.12 • OD 2 (H) in: 1.12" • Thickness (T) in: 0.35"
Hygienic BLDI000230156L	DIN Union (20mm) \| Blank \| 316L	DIN	Blank	DN 20(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (20mm) \| Blank \| 316L Legacy Part Number IE: BKDI0020 Legacy Part Number UK: BKDI0020 Legacy Part Number DK: BKDI0020 Dimensional Image Key: • Length (C) mm: 11 • OD (D) mm: 36.5 • OD (H) mm: 36.5 • Thickness (T) mm: 11 • Length (C) in: 0.43 • OD (D) in: 1.44 • OD 2 (H) in: 1.44" • Thickness (T) in: 0.43"
Hygienic BLDI000290156L	DIN Union (25mm) \| Blank \| 316L	DIN	Blank	DN 25(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (25mm) \| Blank \| 316L Legacy Part Number IE: BKDI0025 Legacy Part Number UK: BKDI0025 Legacy Part Number DK: BKDI0025 Dimensional Image Key: • Length (C) mm: 13 • OD (D) mm: 44 • OD (H) mm: 44 • Thickness (T) mm: 13 • Length (C) in: 0.51 • OD (D) in: 1.73 • OD 2 (H) in: 1.73" • Thickness (T) in: 0.51"
Hygienic BLDI000350156L	DIN Union (32mm) \| Blank \| 316L	DIN	Blank	DN 32(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (32mm) \| Blank \| 316L Legacy Part Number IE: BKDI0032 Legacy Part Number UK: BKDI0032 Legacy Part Number DK: BKDI0032 Dimensional Image Key: • Length (C) mm: 13 • OD (D) mm: 50 • OD (H) mm: 50 • Thickness (T) mm: 13 • Length (C) in: 0.51 • OD (D) in: 1.97 • OD 2 (H) in: 1.97" • Thickness (T) in: 0.51"
Hygienic BLDI000410156L	DIN Union (40mm) \| Blank \| 316L	DIN	Blank	DN 40(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (40mm) \| Blank \| 316L Legacy Part Number IE: BKDI0040 Legacy Part Number UK: BKDI0040 Legacy Part Number DK: BKDI0040 Dimensional Image Key: • Length (C) mm: 13 • OD (D) mm: 56 • OD (H) mm: 56 • Thickness (T) mm: 13 • Length (C) in: 0.51 • OD (D) in: 2.2 • OD 2 (H) in: 2.2" • Thickness (T) in: 0.51"
Hygienic BLDI000530156L	DIN Union (50mm) \| Blank \| 316L	DIN	Blank	DN 50(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (50mm) \| Blank \| 316L Legacy Part Number IE: BKDI0050 Legacy Part Number UK: BKDI0050 Legacy Part Number DK: BKDI0050 Dimensional Image Key: • Length (C) mm: 14 • OD (D) mm: 68.5 • OD (H) mm: 68.5 • Thickness (T) mm: 14 • Length (C) in: 0.55 • OD (D) in: 2.7 • OD 2 (H) in: 2.7" • Thickness (T) in: 0.55"
Hygienic BLDI000700206L	DIN Union (65mm) \| Blank \| 316L	DIN	Blank	DN 60(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (65mm) \| Blank \| 316L Legacy Part Number IE: BKDI0065 Legacy Part Number UK: BKDI0065 Legacy Part Number DK: BKDI0065 Dimensional Image Key: • Length (C) mm: 16 • OD (D) mm: 86 • OD (H) mm: 86 • Thickness (T) mm: 16 • Length (C) in: 0.63 • OD (D) in: 3.39 • OD 2 (H) in: 3.39" • Thickness (T) in: 0.63"
Hygienic BLDI000850206L	DIN Union (80mm) \| Blank \| 316L	DIN	Blank	DN 80(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (80mm) \| Blank \| 316L Legacy Part Number IE: BKDI0080 Legacy Part Number UK: BKDI0080 Legacy Part Number DK: BKDI0080 Dimensional Image Key: • Length (C) mm: 16 • OD (D) mm: 100 • OD (H) mm: 100 • Thickness (T) mm: 16 • Length (C) in: 0.63 • OD (D) in: 3.94 • OD 2 (H) in: 3.94" • Thickness (T) in: 0.63"
Hygienic BLDI001040206L	DIN Union (100mm) \| Blank \| 316L	DIN	Blank	DN 100(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (100mm) \| Blank \| 316L Legacy Part Number IE: BKDI0100 Legacy Part Number UK: BKDI0100 Legacy Part Number DK: BKDI0100 Dimensional Image Key: • Length (C) mm: 20 • OD (D) mm: 121 • OD (H) mm: 121 • Thickness (T) mm: 20 • Length (C) in: 0.79 • OD (D) in: 4.76 • OD 2 (H) in: 4.76" • Thickness (T) in: 0.79"
Hygienic BLDI001290206L	DIN Union (125mm) \| Blank \| 316L	DIN	Blank	DN 125(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (125mm) \| Blank \| 316L Legacy Part Number IE: BKDI0125 Legacy Part Number UK: BKDI0125 Legacy Part Number DK: BKDI0125 Dimensional Image Key: • Length (C) mm: 22 • OD (D) mm: 150 • OD (H) mm: 150 • Thickness (T) mm: 22 • Length (C) in: 0.87 • OD (D) in: 5.91 • OD 2 (H) in: 5.91" • Thickness (T) in: 0.87"
Hygienic BLDI001540206L	DIN Union (150mm) \| Blank \| 316L	DIN	Blank	DN 150(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (150mm) \| Blank \| 316L Legacy Part Number IE: BKDI0150 Legacy Part Number UK: BKDI0150 Legacy Part Number DK: BKDI0150 Dimensional Image Key: • Length (C) mm: 24 • OD (D) mm: 176 • OD (H) mm: 176 • Thickness (T) mm: 24 • Length (C) in: 0.94 • OD (D) in: 6.93 • OD 2 (H) in: 6.93" • Thickness (T) in: 0.94"
