DIN Liners

Description

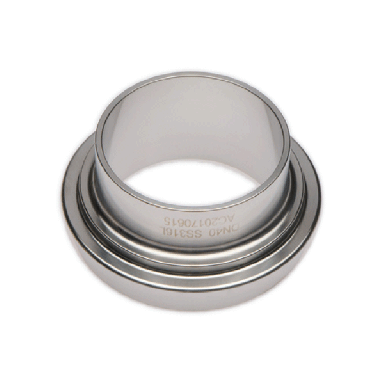

ACL DIN Liners are manufactured in accordance with DIN 11851 for use in Food & Beverage and Dairy process systems. Liners provide the weld end of the DIN union assembly and are produced from 316L stainless steel bar or tube stock with surface finishes meeting or exceeding the DIN standard requirements.

Specifications

Standard: DIN 11851
Surface finish: 0.8Ra µm minimum (internal)
Materials comply with AD2000 (PED) and ASME VIII

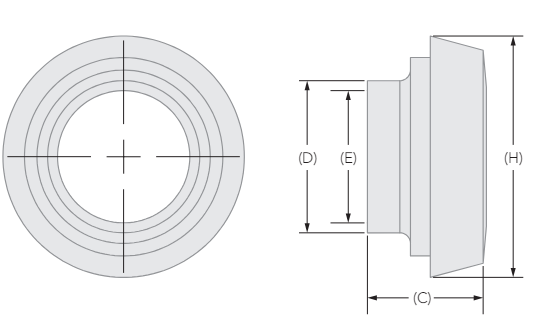

Dimensional Image

Features

Manufactured to DIN 11851 standard
Produced from 316L stainless steel
Internal surface finish to 0.8Ra µm or better
Flatness and circularity within tight tolerances
Full laser marking for traceability
Available in a full range of sizes

Materials

Material: 316L Stainless Steel as standard

Data Center

ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

Industry PART#	Product Name	Standard	Type	Size Metric	Material	Add To Cart LIST PRICE
Hygienic LIDI000130156L	DIN Union (10mm) \| Liner \| 316L	DIN	Liner	DN 10(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (10mm) \| Liner \| 316L Legacy Part Number IE: LIDI0010 Legacy Part Number UK: LIDI0010 Legacy Part Number DK: LIDI0010 Dimensional Image Key: • Length (C) mm: 17 • OD 1 (D) mm: 13 • ID (E) mm: 10 • OD 2 (H) mm: 22.2 • OD (H) mm: 13 • ID (D) mm: 10 • ID (E) in: 0.39" • Length (C) in: 0.67" • OD 1 (D) in: 0.51 • OD 2 (H) in: 0.51" • OD (H) in: 0.87" • ID (D) in: 0.39" • ID (mm): 10
Hygienic LIDI000190156L	DIN Union (15mm) \| Liner \| 316L	DIN	Liner	DN 15(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (15mm) \| Liner \| 316L Legacy Part Number IE: LIDI0015 Legacy Part Number UK: LIDI0015 Legacy Part Number DK: LIDI0015 Dimensional Image Key: • Length (C) mm: 17 • OD 1 (D) mm: 19 • ID (E) mm: 16 • OD 2 (H) mm: 28.2 • OD (H) mm: 19 • ID (D) mm: 16 • ID (E) in: 0.63" • Length (C) in: 0.67" • OD 1 (D) in: 0.75 • OD 2 (H) in: 0.75" • OD (H) in: 1.11" • ID (D) in: 0.63" • ID (mm): 16
Hygienic LIDI000230156L	DIN Union (20mm) \| Liner \| 316L	DIN	Liner	DN 20(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (20mm) \| Liner \| 316L Legacy Part Number IE: LIDI0020 Legacy Part Number UK: LIDI0020 Legacy Part Number DK: LIDI0020 Dimensional Image Key: • Length (C) mm: 18 • OD 1 (D) mm: 23 • ID (E) mm: 20 • OD 2 (H) mm: 36.3 • OD (H) mm: 23 • ID (D) mm: 20 • ID (E) in: 0.79" • Length (C) in: 0.71" • OD 1 (D) in: 0.91 • OD 2 (H) in: 0.91" • OD (H) in: 1.43" • ID (D) in: 0.79" • ID (mm): 20
Hygienic LIDI000290156L	DIN Union (25mm) \| Liner \| 316L	DIN	Liner	DN 25(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (25mm) \| Liner \| 316L Legacy Part Number IE: LIDI0025 Legacy Part Number UK: LIDI0025 Legacy Part Number DK: LIDI0025 Dimensional Image Key: • Length (C) mm: 22 • OD 1 (D) mm: 29 • ID (E) mm: 26 • OD 2 (H) mm: 44 • OD (H) mm: 29 • ID (D) mm: 26 • ID (E) in: 1.02" • Length (C) in: 0.87" • OD 1 (D) in: 1.14 • OD 2 (H) in: 1.14" • OD (H) in: 1.73" • ID (D) in: 1.02" • ID (mm): 26
Hygienic LIDI000350156L	DIN Union (32mm) \| Liner \| 316L	DIN	Liner	DN 32(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (32mm) \| Liner \| 316L Legacy Part Number IE: LIDI0032 Legacy Part Number UK: LIDI0032 Legacy Part Number DK: LIDI0032 Dimensional Image Key: • Length (C) mm: 25 • OD 1 (D) mm: 35 • ID (E) mm: 32 • OD 2 (H) mm: 50 • OD (H) mm: 35 • ID (D) mm: 32 • ID (E) in: 1.26" • Length (C) in: 0.98" • OD 1 (D) in: 1.38 • OD 2 (H) in: 1.38" • OD (H) in: 1.97" • ID (D) in: 1.26" • ID (mm): 32
Hygienic LIDI000410156L	DIN Union (40mm) \| Liner \| 316L	DIN	Liner	DN 40(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (40mm) \| Liner \| 316L Legacy Part Number IE: LIDI0040 Legacy Part Number UK: LIDI0040 Legacy Part Number DK: LIDI0040 Dimensional Image Key: • Length (C) mm: 26 • OD 1 (D) mm: 41 • ID (E) mm: 38 • OD 2 (H) mm: 56 • OD (H) mm: 41 • ID (D) mm: 38 • ID (E) in: 1.5" • Length (C) in: 1.02" • OD 1 (D) in: 1.61 • OD 2 (H) in: 1.61" • OD (H) in: 2.2" • ID (D) in: 1.5" • ID (mm): 38
Hygienic LIDI000530156L	DIN Union (50mm) \| Liner \| 316L	DIN	Liner	DN 50(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (50mm) \| Liner \| 316L Legacy Part Number IE: LIDI0050 Legacy Part Number UK: LIDI0050 Legacy Part Number DK: LIDI0050 Dimensional Image Key: • Length (C) mm: 28 • OD 1 (D) mm: 53 • ID (E) mm: 50 • OD 2 (H) mm: 68.5 • OD (H) mm: 53 • ID (D) mm: 50 • ID (E) in: 1.97" • Length (C) in: 1.1" • OD 1 (D) in: 2.09 • OD 2 (H) in: 2.09" • OD (H) in: 2.7" • ID (D) in: 1.97" • ID (mm): 50
Hygienic LIDI000700206L	DIN Union (65mm) \| Liner \| 316L	DIN	Liner	DN 65(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (65mm) \| Liner \| 316L Legacy Part Number IE: LIDI0065 Legacy Part Number UK: LIDI0065 Legacy Part Number DK: LIDI0065 Dimensional Image Key: • Length (C) mm: 32 • OD 1 (D) mm: 70 • ID (E) mm: 66 • OD 2 (H) mm: 86 • OD (H) mm: 70 • ID (D) mm: 66 • ID (E) in: 2.6" • Length (C) in: 1.26" • OD 1 (D) in: 2.76 • OD 2 (H) in: 2.76" • OD (H) in: 3.39" • ID (D) in: 2.6" • ID (mm): 66
Hygienic LIDI000850206L	DIN Union (80mm) \| Liner \| 316L	DIN	Liner	DN 80(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (80mm) \| Liner \| 316L Legacy Part Number IE: LIDI0080 Legacy Part Number UK: LIDI0080 Legacy Part Number DK: LIDI0080 Dimensional Image Key: • Length (C) mm: 37 • OD 1 (D) mm: 85 • ID (E) mm: 81 • OD 2 (H) mm: 100 • OD (H) mm: 85 • ID (D) mm: 81 • ID (E) in: 3.19" • Length (C) in: 1.46" • OD 1 (D) in: 3.35 • OD 2 (H) in: 3.35" • OD (H) in: 3.94" • ID (D) in: 3.19" • ID (mm): 81
Hygienic LIDI001040206L	DIN Union (100mm) \| Liner \| 316L	DIN	Liner	DN 100(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (100mm) \| Liner \| 316L Legacy Part Number IE: LIDI0100 Legacy Part Number UK: LIDI0100 Legacy Part Number DK: LIDI0100 Dimensional Image Key: • Length (C) mm: 44 • OD 1 (D) mm: 104 • ID (E) mm: 100 • OD 2 (H) mm: 121 • OD (H) mm: 104 • ID (D) mm: 100 • ID (E) in: 3.94" • Length (C) in: 1.73" • OD 1 (D) in: 4.09 • OD 2 (H) in: 4.09" • OD (H) in: 4.76" • ID (D) in: 3.94" • ID (mm): 100
Hygienic LIDI001290206L	DIN Union (125mm) \| Liner \| 316L	DIN	Liner	DN 125(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (125mm) \| Liner \| 316L Legacy Part Number IE: LIDI0125 Legacy Part Number UK: LIDI0125 Legacy Part Number DK: LIDI0125 Dimensional Image Key: • Length (C) mm: 34 • OD 1 (D) mm: 129 • ID (E) mm: 125 • OD 2 (H) mm: 150 • OD (H) mm: 129 • ID (D) mm: 125 • ID (E) in: 4.92" • Length (C) in: 1.34" • OD 1 (D) in: 5.08 • OD 2 (H) in: 5.08" • OD (H) in: 5.91" • ID (D) in: 4.92" • ID (mm): 125
Hygienic LIDI001540206L	DIN Union (150mm) \| Liner \| 316L	DIN	Liner	DN 150(DIN)	316L	Contact Customer Service For Access To Availability & Ordering
View Page DIN Union (150mm) \| Liner \| 316L Legacy Part Number IE: LIDI0150 Legacy Part Number UK: LIDI0150 Legacy Part Number DK: LIDI0150 Dimensional Image Key: • Length (C) mm: 37 • OD 1 (D) mm: 154 • ID (E) mm: 150 • OD 2 (H) mm: 176 • OD (H) mm: 154 • ID (D) mm: 150 • ID (E) in: 5.91" • Length (C) in: 1.46" • OD 1 (D) in: 6.06 • OD 2 (H) in: 6.06" • OD (H) in: 6.93" • ID (D) in: 5.91" • ID (mm): 150
