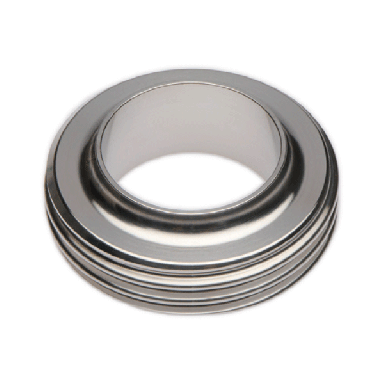

    SMS Male Long & Short


    SMS Male Long & Short
    Description

    ACL SMS Male fittings are manufactured in accordance with SMS 1145 and are available in both long and short configurations to suit different installation requirements in Food & Beverage and Dairy process systems. Produced from 316L stainless steel with surface finishes meeting or exceeding the SMS standard.

    Specifications
    • Standard: SMS 1145
    • Surface finish: 0.8Ra µm minimum
    • Materials comply with AD2000 (PED) and ASME VIII

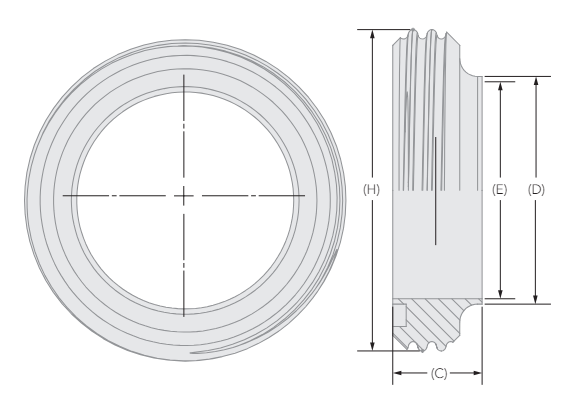

    Dimensional Image
    Features
    • Manufactured to SMS 1145 standard
    • Available in long and short configurations
    • Produced from 316L stainless steel
    • High-quality internal and external surface finish
    • Flatness of sealing face meets or exceeds guidelines
    • Full laser marking for traceability
    • Available in a full range of sizes
    Materials
    • Material: 316L Stainless Steel as standard
    SMS Fittings / SMS Male Long & Short
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings
    SMS Male Long & Short SMS Male Long & Short
    SMS Liners Long & Short SMS Liners Long & Short SMS Nuts SMS Nuts SMS Blanks SMS Blanks SMS Blind Nuts, with Chain SMS Blind Nuts, with Chain SMS Union Gasket, Unlipped SMS Union Gasket, Unlipped
    Total: 12
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) ID (mm) ID (in) OD (mm) OD (in) Flange (mm) Flange (in) Neck (mm) Neck (in) Height (mm) Height (in) Face (mm) Face (in) Weight
    NISMLV0250126L
    		SMS Union (1") | Male Thread Liner / Nipple (Long) | 316L SMS Male Thread Liner / Nipple - Long 316L 1.4404 S31603 1" 0.89" 25 0.98" 0.580000
    dimensional image
    View Page → SMS Union (1") | Male Thread Liner / Nipple (Long) | 316L Legacy Part Number IE:  NISML0100 Legacy Part Number UK:  NISML0100 Legacy Part Number DK:  NISML0100 Dimensional Image Key:
    • Length (C) mm:   19
    • ID (E) mm:   22.6
    • OD 2 (H) mm:   39.8
    • OD (D) mm:   25
    • OD (H) mm:   25
    • ID (D) mm:   22.6
    • ID (E) in:   0.89"
    • Length (C) in:   0.75"
    • OD 1 (D) in:   0.98
    • OD 2 (H) in:   0.98"
    • OD (H) in:   1.57"
    • ID (D) in:   0.89"
    • ID mm:   22.6
    NISMLV0380126L
    		SMS Union (1 1/2") | Male Thread Liner / Nipple (Long) | 316L SMS Male Thread Liner / Nipple - Long 316L 1.4404 S31603 1 1/2" 1.4" 38 1.5" 0.300000
    dimensional image
    View Page → SMS Union (1 1/2") | Male Thread Liner / Nipple (Long) | 316L Legacy Part Number IE:  NISML0150 Legacy Part Number UK:  NISML0150 Legacy Part Number DK:  NISML0150 Dimensional Image Key:
    • Length (C) mm:   23
    • ID (E) mm:   35.6
    • OD 2 (H) mm:   59.8
    • OD (D) mm:   38
    • OD (H) mm:   38
    • ID (D) mm:   35.6
    • ID (E) in:   1.4"
    • Length (C) in:   0.91"
    • OD 1 (D) in:   1.5
    • OD 2 (H) in:   1.5"
    • OD (H) in:   2.35"
    • ID (D) in:   1.4"
    • ID mm:   35.6
    NISMLV0510126L
    		SMS Union (2") | Male Thread Liner / Nipple (Long) | 316L SMS Male Thread Liner / Nipple - Long 316L 1.4404 S31603 2" 1.91" 51 2.01" 0.350000
    dimensional image
    View Page → SMS Union (2") | Male Thread Liner / Nipple (Long) | 316L Legacy Part Number IE:  NISML0200 Legacy Part Number UK:  NISML0200 Legacy Part Number DK:  NISML0200 Dimensional Image Key:
    • Length (C) mm:   23
    • ID (E) mm:   48.6
    • OD 2 (H) mm:   69.8
    • OD (D) mm:   51
    • OD (H) mm:   51
    • ID (D) mm:   48.6
    • ID (E) in:   1.91"
    • Length (C) in:   0.91"
    • OD 1 (D) in:   2.01
    • OD 2 (H) in:   2.01"
    • OD (H) in:   2.75"
    • ID (D) in:   1.91"
    • ID mm:   48.6
    NISMLV0630166L
    		SMS Union (2 1/2") | Male Thread Liner / Nipple (Long) | 316L SMS Male Thread Liner / Nipple - Long 316L 1.4404 S31603 2 1/2" 2.37" 63.5 2.5" 0.450000
    dimensional image
    View Page → SMS Union (2 1/2") | Male Thread Liner / Nipple (Long) | 316L Legacy Part Number IE:  NISML0250 Legacy Part Number UK:  NISML0250 Legacy Part Number DK:  NISML0250 Dimensional Image Key:
    • Length (C) mm:   27
    • ID (E) mm:   60.3
    • OD 2 (H) mm:   84.8
    • OD (D) mm:   63.5
    • OD (H) mm:   63.5
    • ID (D) mm:   60.3
    • ID (E) in:   2.37"
    • Length (C) in:   1.06"
    • OD 1 (D) in:   2.5
    • OD 2 (H) in:   2.5"
    • OD (H) in:   3.34"
    • ID (D) in:   2.37"
    • ID mm:   60.3
    NISMLV0760206L
    		SMS Union (3") | Male Thread Liner / Nipple (Long) | 316L SMS Male Thread Liner / Nipple - Long 316L 1.4404 S31603 3" 2.76" 76.1 3" 0.600000
    dimensional image
    View Page → SMS Union (3") | Male Thread Liner / Nipple (Long) | 316L Legacy Part Number IE:  NISML0300 Legacy Part Number UK:  NISML0300 Legacy Part Number DK:  NISML0300 Dimensional Image Key:
    • Length (C) mm:   27
    • ID (E) mm:   70.1
    • OD 2 (H) mm:   97.8
    • OD (D) mm:   76.1
    • OD (H) mm:   76.1
    • ID (D) mm:   70.1
    • ID (E) in:   2.76"
    • Length (C) in:   1.06"
    • OD 1 (D) in:   3
    • OD 2 (H) in:   3"
    • OD (H) in:   3.85"
    • ID (D) in:   2.76"
    • ID mm:   70.1
    NISMLV1010206L
    		SMS Union (4") | Male Thread Liner / Nipple (Long) | 316L SMS Male Thread Liner / Nipple - Long 316L 1.4404 S31603 4" 3.84" 101.6 4" 0.750000
    dimensional image
    View Page → SMS Union (4") | Male Thread Liner / Nipple (Long) | 316L Legacy Part Number IE:  NISML0400 Legacy Part Number UK:  NISML0400 Legacy Part Number DK:  NISML0400 Dimensional Image Key:
    • Length (C) mm:   30
    • ID (E) mm:   97.6
    • OD 2 (H) mm:   132
    • OD (D) mm:   101.6
    • OD (H) mm:   101.6
    • ID (D) mm:   97.6
    • ID (E) in:   3.84"
    • Length (C) in:   1.18"
    • OD 1 (D) in:   4
    • OD 2 (H) in:   4"
    • OD (H) in:   5.2"
    • ID (D) in:   3.84"
    • ID mm:   97.6
    NISM000250126L
    		SMS Union (1") | Male Thread Liner / Nipple (Short) | 316L SMS Male Thread Liner / Nipple - Short 316L 1.4404 S31603 1" 0.89" 25 0.98" 0.300000
    dimensional image
    View Page → SMS Union (1") | Male Thread Liner / Nipple (Short) | 316L Legacy Part Number IE:  NISM0100 Legacy Part Number UK:  NISM0100 Legacy Part Number DK:  NISM0100 Dimensional Image Key:
    • Length (C) mm:   15
    • ID (E) mm:   22.6
    • OD 2 (H) mm:   39.8
    • OD (D) mm:   25
    • OD (H) mm:   25
    • ID (D) mm:   22.6
    • ID (E) in:   0.89"
    • Length (C) in:   0.59"
    • OD 1 (D) in:   0.98
    • OD 2 (H) in:   0.98"
    • OD (H) in:   1.57"
    • ID (D) in:   0.89"
    • ID mm:   22.6
    NISM000380126L
    		SMS Union (1 1/2") | Male Thread Liner / Nipple (Short) | 316L SMS Male Thread Liner / Nipple - Short 316L 1.4404 S31603 1 1/2" 1.4" 38 1.5" 0.350000
    dimensional image
    View Page → SMS Union (1 1/2") | Male Thread Liner / Nipple (Short) | 316L Legacy Part Number IE:  NISM0150 Legacy Part Number UK:  NISM0150 Legacy Part Number DK:  NISM0150 Dimensional Image Key:
    • Length (C) mm:   20
    • ID (E) mm:   35.6
    • OD 2 (H) mm:   59.8
    • OD (D) mm:   38
    • OD (H) mm:   38
    • ID (D) mm:   35.6
    • ID (E) in:   1.4"
    • Length (C) in:   0.79"
    • OD 1 (D) in:   1.5
    • OD 2 (H) in:   1.5"
    • OD (H) in:   2.35"
    • ID (D) in:   1.4"
    • ID mm:   35.6
    NISM000510126L
    		SMS Union (2") | Male Thread Liner / Nipple (Short) | 316L SMS Male Thread Liner / Nipple - Short 316L 1.4404 S31603 2" 1.91" 51 2.01" 0.200000
    dimensional image
    View Page → SMS Union (2") | Male Thread Liner / Nipple (Short) | 316L Legacy Part Number IE:  NISM0200 Legacy Part Number UK:  NISM0200 Legacy Part Number DK:  NISM0200 Dimensional Image Key:
    • Length (C) mm:   20
    • ID (E) mm:   48.6
    • OD 2 (H) mm:   69.8
    • OD (D) mm:   51
    • OD (H) mm:   51
    • ID (D) mm:   48.6
    • ID (E) in:   1.91"
    • Length (C) in:   0.79"
    • OD 1 (D) in:   2.01
    • OD 2 (H) in:   2.01"
    • OD (H) in:   2.75"
    • ID (D) in:   1.91"
    • ID mm:   48.6
    NISM000630166L
    		SMS Union (2 1/2") | Male Thread Liner / Nipple (Short) | 316L SMS Male Thread Liner / Nipple - Short 316L 1.4404 S31603 2 1/2" 2.37" 63.5 2.5" 0.600000
    dimensional image
    View Page → SMS Union (2 1/2") | Male Thread Liner / Nipple (Short) | 316L Legacy Part Number IE:  NISM0250 Legacy Part Number UK:  NISM0250 Legacy Part Number DK:  NISM0250 Dimensional Image Key:
    • Length (C) mm:   24
    • ID (E) mm:   60.3
    • OD 2 (H) mm:   84.8
    • OD (D) mm:   63.5
    • OD (H) mm:   63.5
    • ID (D) mm:   60.3
    • ID (E) in:   2.37"
    • Length (C) in:   0.94"
    • OD 1 (D) in:   2.5
    • OD 2 (H) in:   2.5"
    • OD (H) in:   3.34"
    • ID (D) in:   2.37"
    • ID mm:   60.3
    NISM000760206L
    		SMS Union (3") | Male Thread Liner / Nipple (Short) | 316L SMS Male Thread Liner / Nipple - Short 316L 1.4404 S31603 3" 2.76" 76.1 3" 0.750000
    dimensional image
    View Page → SMS Union (3") | Male Thread Liner / Nipple (Short) | 316L Legacy Part Number IE:  NISM0300 Legacy Part Number UK:  NISM0300 Legacy Part Number DK:  NISM0300 Dimensional Image Key:
    • Length (C) mm:   24
    • ID (E) mm:   70.1
    • OD 2 (H) mm:   97.8
    • OD (D) mm:   76.1
    • OD (H) mm:   76.1
    • ID (D) mm:   70.1
    • ID (E) in:   2.76"
    • Length (C) in:   0.94"
    • OD 1 (D) in:   3
    • OD 2 (H) in:   3"
    • OD (H) in:   3.85"
    • ID (D) in:   2.76"
    • ID mm:   70.1
    NISM001010206L
    		SMS Union (4") | Male Thread Liner / Nipple (Short) | 316L SMS Male Thread Liner / Nipple - Short 316L 1.4404 S31603 4" 3.84" 101.6 4" 0.900000
    dimensional image
    View Page → SMS Union (4") | Male Thread Liner / Nipple (Short) | 316L Legacy Part Number IE:  NISM0400 Legacy Part Number UK:  NISM0400 Legacy Part Number DK:  NISM0400 Dimensional Image Key:
    • Length (C) mm:   25
    • ID (E) mm:   97.6
    • OD 2 (H) mm:   132
    • OD (D) mm:   101.6
    • OD (H) mm:   101.6
    • ID (D) mm:   97.6
    • ID (E) in:   3.84"
    • Length (C) in:   0.98"
    • OD 1 (D) in:   4
    • OD 2 (H) in:   4"
    • OD (H) in:   5.2"
    • ID (D) in:   3.84"
    • ID mm:   97.6
