Type ASME VIII 316

Description

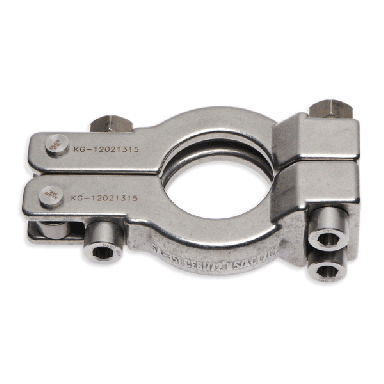

ASME VIII pressure vessel 316 clamps are made from 316 / 1.4408 stainless steel and are available in ½” – 12 5/8” sizes. Made for normal to heavy duty applications, ASME VIII 316 clamps are corrosion resistant, high quality surface finish (for cleanability).

Specifications

Heavy duty design
Very high FOS Calculated to ASME VIII APP 24
Segments connected by hinge for safety and for ease of control during assembly
Tested by TUV, Forbairt, FORCE

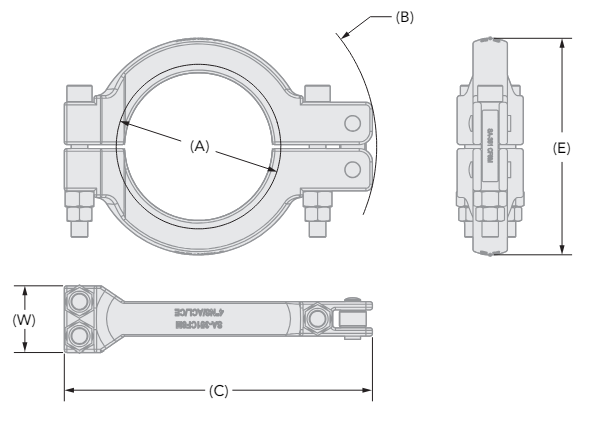

Dimensional Image

Features

Material: 316 / 1.4401
Application: Pressure Vessel, Pharmaceutical
Hinge Layout: Hinge Plate & Safety Bolt

Tri-Clamps / Type ASME VIII 316

Select Series Tri-Clamps

Type ASME VIII 316

Type SH (Single-Bolt | Double-Hinge) 316

Type SL 304

Type SH (Double Bolt) 316

Euro-Pure® 316

Type SSH (Brass Nuts) 304

3 Segment 304

13MHHM Nylon

Industry PART#	Product Name	Type	Material Grade	EN Standard	ASTM Standard	Size (in)	Size (DIN)	Size (ISO)	Closing Mechanism	Nut Type	Safety	Pressure Rating (bar)	Pressure Rating (psi)	Flange A (mm)	Flange A (in)	Width (mm)	Width (in)	Weight
Pharmaceutical ASHX0005006	Tri-Clamp (1" - 1 1/2") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	1" - 1 1/2"	DN 25-40	DN 15-20-25	3-Bolt & Locking Nut	Hex Nut	No	167	2422.13	50.5	1.99"	50	1.97"	1.812000
View Page → Tri-Clamp (1" - 1 1/2") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305403 Legacy Part Number IE: CL.AS8.0100 Legacy Part Number UK: CL.AS8.0100 - 1" ASME VIII CLAMP 316 Legacy Part Number DK: CLAS80100 Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 2" B in: 3.35" B mm: 85 C mm: 145 C in: 5.71" W mm: 50 W in: 1.97"
Pharmaceutical ASHX0006406	Tri-Clamp (2") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	2"	DN 50	DN 32-40	3-Bolt & Locking Nut	Hex Nut	No	90	1305.34	64	2.52"	50	1.97"	1.960000
View Page → Tri-Clamp (2") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305410 Legacy Part Number IE: CL.AS8.0200 Legacy Part Number UK: CL.AS8.0200 - 2" ASME VIII CLAMP 316 Legacy Part Number DK: CLAS80200 Dimensional Image Key: Flange (A) mm: 64 Flange (A) in: 2 1/2" B in: 3.82" B mm: 97 C mm: 163 C in: 6.42" W mm: 50 W in: 1.97"
Pharmaceutical ASHX0009106	Tri-Clamp (3") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	3"	DN 65	DN 65	3-Bolt & Locking Nut	Hex Nut	No	90	1305.34	91	3.58"	50	1.97"	2.962000
View Page → Tri-Clamp (3") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305434 Legacy Part Number IE: CL.AS8.0300 Legacy Part Number UK: CL.AS8.0300 - 3" ASME VIII CLAMP 316 Legacy Part Number DK: CLAS80300 Dimensional Image Key: Flange (A) mm: 91 Flange (A) in: 3 1/2" B in: 4.53" B mm: 115 C mm: 203 C in: 7.99" W mm: 50 W in: 1.97"
Pharmaceutical ASHX0011906	Tri-Clamp (4") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	4"	DN 100		3-Bolt & Locking Nut	Hex Nut	No	57	826.72	119	4.69"	50	1.97"	3.702000
View Page → Tri-Clamp (4") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305458 Legacy Part Number IE: CL.AS8.0400 Legacy Part Number UK: CL.AS8.0400 - 4" ASME VIII CLAMP 316 Legacy Part Number DK: CLAS80400 Dimensional Image Key: Flange (A) mm: 119 Flange (A) in: 4 3/4" B in: 5.31" B mm: 135 C mm: 233 C in: 9.17" W mm: 50 W in: 1.97"
Pharmaceutical ASHX0016706	Tri-Clamp (6") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	6"			3-Bolt & Locking Nut	Hex Nut	No	22	319.08	167	6.57"	50	1.97"	4.672000
View Page → Tri-Clamp (6") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305496 Legacy Part Number IE: CL.AS8.0600 Legacy Part Number UK: CL.AS8.0600 - 6" ASME VIII CLAMP 316 Legacy Part Number DK: CLAS80600 Dimensional Image Key: Flange (A) mm: 167 Flange (A) in: 6 5/8" B in: 6.30" B mm: 160 C mm: 281 C in: 11.06" W mm: 50 W in: 1.97"
Pharmaceutical ASHX0018306	Tri-Clamp (6 5/8") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	6 5/8"	DN 150	DN 150	3-Bolt & Locking Nut	Hex Nut	No	22	319.08	183	7.2"	50	1.97"	4.938000
View Page → Tri-Clamp (6 5/8") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305502 Legacy Part Number IE: CL.AS8.0658 Legacy Part Number UK: CL.AS8.0658 - 6 5/8" ASME VIII CLAMP 316 Legacy Part Number DK: CLAS80658 Dimensional Image Key: Flange (A) mm: 183 Flange (A) in: 7 1/4" B in: 6.69" B mm: 170 C mm: 300 C in: 11.81" W mm: 50 W in: 1.97"
Pharmaceutical ASHX0021706	Tri-Clamp (8") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	8"			3-Bolt & Locking Nut	Hex Nut	No	15	217.56	217.4	8.56"	50	1.97"	5.466000
View Page → Tri-Clamp (8") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305519 Legacy Part Number IE: CL.AS8.0800 Legacy Part Number UK: CL.AS8.0800 - 8" ASME VIII CLAMP (316) Legacy Part Number DK: CLAS80800 Dimensional Image Key: Flange (A) mm: 217.4 Flange (A) in: 8 1/2" B in: 7.28" B mm: 185 C mm: 333 C in: 13.11" W mm: 50 W in: 1.97"
Pharmaceutical ASHX0023306	Tri-Clamp (8 5/8") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	8 5/8"	DN 200	DN 200	3-Bolt & Locking Nut	Hex Nut	No	12	174.05	233.5	9.19"	50	1.97"	6.120000
View Page → Tri-Clamp (8 5/8") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305526 Legacy Part Number IE: CL.AS8.0858 Legacy Part Number UK: CL.AS8.0858 - 8 5/8" ASME VIII CLAMP 316 Legacy Part Number DK: CLAS80858 Dimensional Image Key: Flange (A) mm: 233.5 Flange (A) in: 9 1/8" B in: 7.56" B mm: 192 C mm: 349 C in: 13.74" W mm: 50 W in: 1.97"
Pharmaceutical ASHX0026806	Tri-Clamp (10") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	10"	DN 250		3-Bolt & Locking Nut	Hex Nut	No	10	145.04	268	10.55"	50	1.97"	6.302000
View Page → Tri-Clamp (10") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305533 Legacy Part Number IE: CL.AS8.1000 Legacy Part Number UK: CL.AS8.1000 - 10" ASME VIII CLAMP 316 Legacy Part Number DK: CLAS81000 Dimensional Image Key: Flange (A) mm: 268 Flange (A) in: 10 1/2" B in: 8.27" B mm: 210 C mm: 385 C in: 15.16" W mm: 50 W in: 1.97"
Pharmaceutical ASHX0031906	Tri-Clamp (12") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut	ASME VII	316	1.4408	J92900	12"	DN 300		3-Bolt & Locking Nut	Hex Nut	No	7	101.53	319	12.56"	50	1.97"	7.020000
View Page → Tri-Clamp (12") \| Type ASME VII \| Stainless Steel 316 \| Hex Nut GTIN: 840384305557 Legacy Part Number IE: CL.AS8.1200 Legacy Part Number UK: CL.AS8.1200 - 12" ASME VIII CLAMP 316 Legacy Part Number DK: CLAS81200 Dimensional Image Key: Flange (A) mm: 319 Flange (A) in: 12 1/2" B in: 9.25" B mm: 235 C mm: 433 C in: 17.05" W mm: 50 W in: 1.97"
