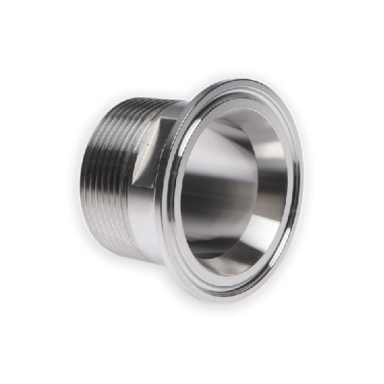

    NPT Male Metric


    NPT Male Metric
    Description

    ACL NPT Male Adapters (Metric) are produced in the UK and designed for Pharmaceutical, Food & Beverage, Dairy and Chemical applications. These adapters provide a reliable connection between NPT threaded fittings and hygienic metric tube systems. Sizes range from 1/2" to 2" from stock, with bespoke sizes available on request.

    All adapters are laser marked with material grade and heat number. 3.1 material certification is available online and a Declaration of Conformity is issued as standard.

    Specifications
    • Materials are AD2000 (PED) and ASME VIII
    • Surface finish is 0.8Ra µm minimum
    • Sizes: 1/2" to 2" (stock); larger sizes bespoke
    • Thread form: NPT to ANSI/ASME B1.20.1

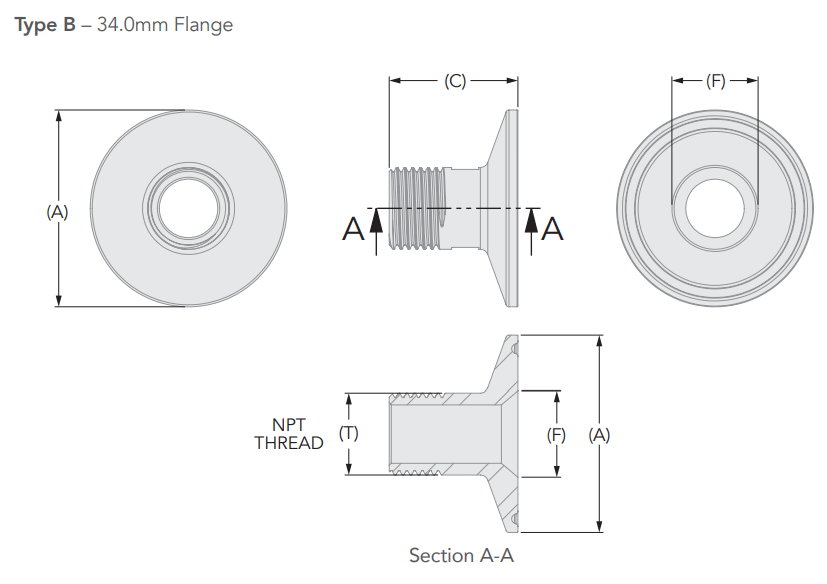

    Dimensional Image
    Features
    • Produced in the UK
    • Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm
    • Flatness of sealing face meets or exceeds guidelines
    • Full laser marking for traceability
    • 3.1 material certification available online
    Materials
    • Material: 316L Stainless Steel as standard
    • Alternative materials available on request
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    Adapters / NPT Male Metric
    Adapters Adapters Hose Adapters Hose Adapters Reducers Reducers Union Fittings Union Fittings Blanks Blanks
    NPT Male Metric NPT Male Metric
    BSP Male Imperial BSP Male Imperial BSP Male Metric BSP Male Metric BSP Female Imperial BSP Female Imperial BSP Female Metric BSP Female Metric NPT Male Imperial NPT Male Imperial NPT Female Imperial NPT Female Imperial NPT Female Metric NPT Female Metric
    Total: 24
    Industry
    PART#    		 Product
    Name    		 Standard Type Gender Material Grade EN Standard ASTM Standard Size (in) Size (DIN) Flange (mm) Flange (in) Connection (in) ID (mm) ID (in) Length (mm) Length (in) Weight
    ADPAMN013635006L
    		Adaptor (DN 10) | Male NPT (1/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 10 1/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Male NPT (1/4" Thread) | 316L Legacy Part Number IE:  AM.NPT.D10.025 Legacy Part Number UK:  AM.NPT.D10.025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.39"
    ADPAMN013952006L
    		Adaptor (DN 10) | Male NPT (3/8" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 10 3/8" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Male NPT (3/8" Thread) | 316L Legacy Part Number IE:  AM.NPT.D10.038 Legacy Part Number UK:  AM.NPT.D10.038 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.39"
    ADPAMN013127006L
    		Adaptor (DN 10) | Male NPT (1/2" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 10 1/2" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Male NPT (1/2" Thread) | 316L Legacy Part Number IE:  AM.NPT.D10.050 Legacy Part Number UK:  AM.NPT.D10.050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.39"
    ADPAMN013195006L
    		Adaptor (DN 10) | Male NPT (3/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 10 3/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Male NPT (3/4" Thread) | 316L Legacy Part Number IE:  AM.NPT.D10.075 Legacy Part Number UK:  AM.NPT.D10.075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.39"
    ADPAMN019635006L
    		Adaptor (DN 15) | Male NPT (1/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 15 1/4" 30 1.18" 0.038700
    dimensional image
    View Page → Adaptor (DN 15) | Male NPT (1/4" Thread) | 316L Legacy Part Number IE:  AM.NPT.D15.025 Legacy Part Number UK:  AM.NPT.D15.025 - DIN 15 to 1/4" NPT MALE Legacy Part Number DK:  AMNPTD15025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.63"
    ADPAMN019127006L
    		Adaptor (DN 15) | Male NPT (3/8" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 15 3/8" 30 1.18" 0.052800
    dimensional image
    View Page → Adaptor (DN 15) | Male NPT (3/8" Thread) | 316L Legacy Part Number IE:  AM.NPT.D15.038 Legacy Part Number UK:  AM.NPT.D15.050 - DIN 15 to 1/2" NPT MALE Legacy Part Number DK:  AMNPTD15050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.63"
    ADPAMN019195006L
    		Adaptor (DN 15) | Male NPT (1/2" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 15 1/2" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 15) | Male NPT (1/2" Thread) | 316L Legacy Part Number IE:  AM.NPT.D15.050 Legacy Part Number UK:  AM.NPT.D15.050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.63"
    ADPAMN023635006L
    		Adaptor (DN 15) | Male NPT (3/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 15 3/4" 30 1.18" 0.035400
    dimensional image
    View Page → Adaptor (DN 15) | Male NPT (3/4" Thread) | 316L Legacy Part Number IE:  AM.NPT.D15.075 Legacy Part Number UK:  AM.NPT.D20.025 - DIN 20 to 1/4" NPT MALE Legacy Part Number DK:  AMNPTD20025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.63"
    ADPAMN023952006L
    		Adaptor (DN 20) | Male NPT (1/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 20 1/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Male NPT (1/4" Thread) | 316L Legacy Part Number IE:  AM.NPT.D20.025 Legacy Part Number UK:  AM.NPT.D20.025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.79"
    ADPAMN023127006L
    		Adaptor (DN 20) | Male NPT (3/8" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 20 3/8" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Male NPT (3/8" Thread) | 316L Legacy Part Number IE:  AM.NPT.D20.038 Legacy Part Number UK:  AM.NPT.D20.038 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.79"
    ADPAMN023195006L
    		Adaptor (DN 20) | Male NPT (1/2" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 20 1/2" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Male NPT (1/2" Thread) | 316L Legacy Part Number IE:  AM.NPT.D20.050 Legacy Part Number UK:  AM.NPT.D20.050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.79"
    ADPAMN023025006L
    		Adaptor (DN 20) | Male NPT (3/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 20 3/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Male NPT (3/4" Thread) | 316L Legacy Part Number IE:  AM.NPT.D20.075 Legacy Part Number UK:  AM.NPT.D20.075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.79"
    ADADMN013635006L
    		Adaptor (DN 10) | Male NPT (1/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 10 1/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Male NPT (1/4" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D10.025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .25"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADMN013952006L
    		Adaptor (DN 10) | Male NPT (3/8" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 10 3/8" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Male NPT (3/8" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D10.038 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .375"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADMN013127006L
    		Adaptor (DN 10) | Male NPT (1/2" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 10 1/2" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Male NPT (1/2" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D10.050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .5"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADMN013195006L
    		Adaptor (DN 10) | Male NPT (3/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 10 3/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Male NPT (3/4" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D10.075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .75"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADMN019635006L
    		Adaptor (DN 15) | Male NPT (1/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 15 1/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 15) | Male NPT (1/4" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D15.025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .25"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADMN019127006L
    		Adaptor (DN 15) | Male NPT (3/8" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 15 3/8" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 15) | Male NPT (3/8" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D15.038 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .375"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADMN019195006L
    		Adaptor (DN 15) | Male NPT (1/2" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 15 1/2" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 15) | Male NPT (1/2" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D15.050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .5"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADMN023635006L
    		Adaptor (DN 15) | Male NPT (3/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 15 3/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 15) | Male NPT (3/4" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D15.075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .75"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADMN023952006L
    		Adaptor (DN 20) | Male NPT (1/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 20 1/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Male NPT (1/4" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D20.025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .25"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    ADADMN023127006L
    		Adaptor (DN 20) | Male NPT (3/8" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 20 3/8" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Male NPT (3/8" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D20.038 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .375"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    ADADMN023195006L
    		Adaptor (DN 20) | Male NPT (1/2" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 20 1/2" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Male NPT (1/2" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D20.050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .5"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    ADADMN023025006L
    		Adaptor (DN 20) | Male NPT (3/4" Thread) | 316L NPT Metric Male 316L 1.4404 ˜ SS2348 DN 20 3/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Male NPT (3/4" Thread) | 316L Legacy Part Number IE:  AMD.NPT.D20.075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .75"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    Adaptor (DN 10) | Male NPT (1/4
    Adaptor (DN 10) | Male NPT (1/4" Thread) | 316L
    Pharmaceutical
    ADPAMN013635006L
    Adaptor (DN 10) | Male NPT (3/8
    Adaptor (DN 10) | Male NPT (3/8" Thread) | 316L
    Pharmaceutical
    ADPAMN013952006L
    Adaptor (DN 10) | Male NPT (1/2
    Adaptor (DN 10) | Male NPT (1/2" Thread) | 316L
    Pharmaceutical
    ADPAMN013127006L
    Adaptor (DN 10) | Male NPT (3/4
    Adaptor (DN 10) | Male NPT (3/4" Thread) | 316L
    Pharmaceutical
    ADPAMN013195006L
    Adaptor (DN 15) | Male NPT (1/4
    Adaptor (DN 15) | Male NPT (1/4" Thread) | 316L
    Pharmaceutical
    ADPAMN019635006L
    Adaptor (DN 15) | Male NPT (3/8
    Adaptor (DN 15) | Male NPT (3/8" Thread) | 316L
    Pharmaceutical
    ADPAMN019127006L
    Adaptor (DN 15) | Male NPT (1/2
    Adaptor (DN 15) | Male NPT (1/2" Thread) | 316L
    Pharmaceutical
    ADPAMN019195006L
    Adaptor (DN 15) | Male NPT (3/4
    Adaptor (DN 15) | Male NPT (3/4" Thread) | 316L
    Pharmaceutical
    ADPAMN023635006L
    Adaptor (DN 20) | Male NPT (1/4
    Adaptor (DN 20) | Male NPT (1/4" Thread) | 316L
    Pharmaceutical
    ADPAMN023952006L
    Adaptor (DN 20) | Male NPT (3/8
    Adaptor (DN 20) | Male NPT (3/8" Thread) | 316L
    Pharmaceutical
    ADPAMN023127006L
    Adaptor (DN 20) | Male NPT (1/2
    Adaptor (DN 20) | Male NPT (1/2" Thread) | 316L
    Pharmaceutical
    ADPAMN023195006L
    Adaptor (DN 20) | Male NPT (3/4
    Adaptor (DN 20) | Male NPT (3/4" Thread) | 316L
    Pharmaceutical
    ADPAMN023025006L
    Adaptor (DN 10) | Male NPT (1/4
    Adaptor (DN 10) | Male NPT (1/4" Thread) | 316L
    Hygienic
    ADADMN013635006L
    Adaptor (DN 10) | Male NPT (3/8
    Adaptor (DN 10) | Male NPT (3/8" Thread) | 316L
    Hygienic
    ADADMN013952006L
    Adaptor (DN 10) | Male NPT (1/2
    Adaptor (DN 10) | Male NPT (1/2" Thread) | 316L
    Hygienic
    ADADMN013127006L
    Adaptor (DN 10) | Male NPT (3/4
    Adaptor (DN 10) | Male NPT (3/4" Thread) | 316L
    Hygienic
    ADADMN013195006L
    Adaptor (DN 15) | Male NPT (1/4
    Adaptor (DN 15) | Male NPT (1/4" Thread) | 316L
    Hygienic
    ADADMN019635006L
    Adaptor (DN 15) | Male NPT (3/8
    Adaptor (DN 15) | Male NPT (3/8" Thread) | 316L
    Hygienic
    ADADMN019127006L
    Adaptor (DN 15) | Male NPT (1/2
    Adaptor (DN 15) | Male NPT (1/2" Thread) | 316L
    Hygienic
    ADADMN019195006L
    Adaptor (DN 15) | Male NPT (3/4
    Adaptor (DN 15) | Male NPT (3/4" Thread) | 316L
    Hygienic
    ADADMN023635006L
    Adaptor (DN 20) | Male NPT (1/4
    Adaptor (DN 20) | Male NPT (1/4" Thread) | 316L
    Hygienic
    ADADMN023952006L
    Adaptor (DN 20) | Male NPT (3/8
    Adaptor (DN 20) | Male NPT (3/8" Thread) | 316L
    Hygienic
    ADADMN023127006L
    Adaptor (DN 20) | Male NPT (1/2
    Adaptor (DN 20) | Male NPT (1/2" Thread) | 316L
    Hygienic
    ADADMN023195006L
    Adaptor (DN 20) | Male NPT (3/4
    Adaptor (DN 20) | Male NPT (3/4" Thread) | 316L
    Hygienic
    ADADMN023025006L
