    BSP Female Imperial


    BSP Female Imperial
    Description
    BSP Female Adapters Imperial; flatness of sealing face meets or exceeds guidelines​. Designed for Pharma (F&B / Dairy / Chem ) applications. Sizes 1/2" to 2" (Stock) <2" (Bespoke).
    Specifications
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​

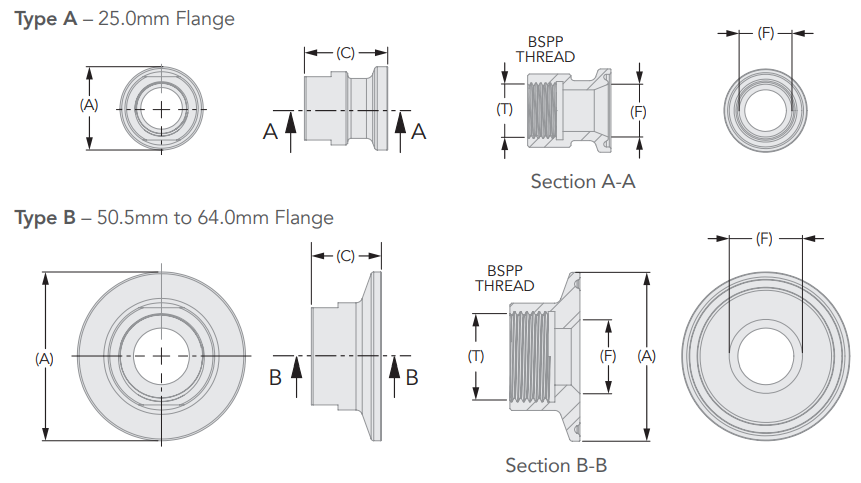

    Dimensional Image
    Features
    • Produced in the UK​
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    Adapters / BSP Female Imperial
    Adapters Adapters Hose Adapters Hose Adapters Reducers Reducers Union Fittings Union Fittings Blanks Blanks
    BSP Female Imperial BSP Female Imperial
    BSP Male Imperial BSP Male Imperial BSP Male Metric BSP Male Metric BSP Female Metric BSP Female Metric NPT Male Imperial NPT Male Imperial NPT Male Metric NPT Male Metric NPT Female Imperial NPT Female Imperial NPT Female Metric NPT Female Metric
    Total: 54
    Industry
    PART#    		 Product
    Name    		 Standard Type Gender Material Grade EN Standard ASTM Standard Size (in) Size (DIN) Flange (mm) Flange (in) Connection (in) ID (mm) ID (in) Length (mm) Length (in) Weight
    ADPAFB127317006L
    		Adaptor (1/2") | Female BSP (1/8" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1/2" 1/8" 25 0.98" 0.050300
    dimensional image
    View Page → Adaptor (1/2") | Female BSP (1/8" Thread) | 316L Legacy Part Number IE:  AF.050.018 Legacy Part Number UK:  AF.050.018 - 1/2" FERRULE x 1/8" BSP Legacy Part Number DK:  AF050018 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   25
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .125"
    • Thread (T):   1/8"
    • Mating (M) in:   0.39"
    ADPAFB127635006L
    		Adaptor (1/2") | Female BSP (1/4" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1/2" 1/4" 25 0.98" 0.042900
    dimensional image
    View Page → Adaptor (1/2") | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AF.050.025 Legacy Part Number UK:  AF.050.025 - 1/2" FERRULE x 1/4" BSPF Legacy Part Number DK:  AF050025 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   25
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.39"
    ADPAFB127952006L
    		Adaptor (1/2") | Female BSP (3/8" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1/2" 3/8" 25 0.98" 0.041000
    dimensional image
    View Page → Adaptor (1/2") | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AF.050.038 Legacy Part Number UK:  AF.050.038 - 1/2" FERRULE x 3/8" BSP Legacy Part Number DK:  AF050038 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   25
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.39"
    ADPAFB127127006L
    		Adaptor (1/2") | Female BSP (1/2" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1/2" 1/2" 30 1.18" 0.075600
    dimensional image
    View Page → Adaptor (1/2") | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AF.050.050 Legacy Part Number UK:  AF.050.050 - 1/2" FERRULE x 1/2" BSP Legacy Part Number DK:  AF050050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   25
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.39"
    ADPAFB127195006L
    		Adaptor (1/2") | Female BSP (3/4" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1/2" 3/4" 30 1.18" 0.066100
    dimensional image
    View Page → Adaptor (1/2") | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AF.050.075 Legacy Part Number UK:  AF.050.075 - 1/2" FERRULE x 3/4" BSP Legacy Part Number DK:  AF050075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   25
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.39"
    ADPAFB195317006L
    		Adaptor (3/4") | Female BSP (1/8" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 3/4" 1/8" 25 0.98" 0.046200
    dimensional image
    View Page → Adaptor (3/4") | Female BSP (1/8" Thread) | 316L Legacy Part Number IE:  AF.075.018 Legacy Part Number UK:  AF.075.018 - 3/4" FERRULE X 1/8" BSP Legacy Part Number DK:  AF075018 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   25
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .125"
    • Thread (T):   1/8"
    • Mating (M) in:   0.63"
    ADPAFB195635006L
    		Adaptor (3/4") | Female BSP (1/4" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 3/4" 1/4" 25 0.98" 0.039900
    dimensional image
    View Page → Adaptor (3/4") | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AF.075.025 Legacy Part Number UK:  AF.075.025 - 3/4" FERRULE x 1/4" BSP Legacy Part Number DK:  AF075025 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   25
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.63"
    ADPAFB195952006L
    		Adaptor (3/4") | Female BSP (3/8" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 3/4" 3/8" 25 0.98" 0.035400
    dimensional image
    View Page → Adaptor (3/4") | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AF.075.038 Legacy Part Number UK:  AF.075.038 - 3/4" FERRULE x 3/8" BSP Legacy Part Number DK:  AF075038 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   25
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.63"
    ADPAFB195127006L
    		Adaptor (3/4") | Female BSP (1/2" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 3/4" 1/2" 30 1.18" 0.065100
    dimensional image
    View Page → Adaptor (3/4") | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AF.075.050 Legacy Part Number UK:  AF.075.050 - 3/4" FERRULE x 1/2" BSP Legacy Part Number DK:  AF075050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   25
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.63"
    ADPAFB195195006L
    		Adaptor (3/4") | Female BSP (3/4" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 3/4" 3/4" 30 1.18" 0.064000
    dimensional image
    View Page → Adaptor (3/4") | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AF.075.075 Legacy Part Number UK:  AF.075.075 - 3/4" FERRULE x 3/4" BSP Legacy Part Number DK:  AF075075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   25
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.63"
    ADPAFB025317006L
    		Adaptor (1") | Female BSP (1/8" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1" 1/8" 25 0.98" 0.100900
    dimensional image
    View Page → Adaptor (1") | Female BSP (1/8" Thread) | 316L Legacy Part Number IE:  AF.100.018 Legacy Part Number UK:  AF.100.018 - 1" FERRULE x 1/8" BSP FEMALE Legacy Part Number DK:  AF100018 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   22
    • Ferrule Connection (T):   .125"
    • Thread (T):   1/8"
    • Mating (M) in:   0.87"
    ADPAFB025635006L
    		Adaptor (1") | Female BSP (1/4" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1" 1/4" 25 0.98" 0.094900
    dimensional image
    View Page → Adaptor (1") | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AF.100.025 Legacy Part Number UK:  AF.100.025 - 1" FERRULE x 1/4" BSP FEMALE Legacy Part Number DK:  AF100025 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   22
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.87"
    ADPAFB025952006L
    		Adaptor (1") | Female BSP (3/8" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1" 3/8" 25 0.98" 0.097300
    dimensional image
    View Page → Adaptor (1") | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AF.100.038 Legacy Part Number UK:  AF.100.038 - 1" FERRULE x 3/8" BSP FEMALE Legacy Part Number DK:  AF100038 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   22
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.87"
    ADPAFB025127006L
    		Adaptor (1") | Female BSP (1/2" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1" 1/2" 25 0.98" 0.115400
    dimensional image
    View Page → Adaptor (1") | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AF.100.050 Legacy Part Number UK:  AF.100.050 - 1" FERRULE x 1/2" BSP FEMALE Legacy Part Number DK:  AF100050 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   22
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.87"
    ADPAFB025195006L
    		Adaptor (1") | Female BSP (3/4" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1" 3/4" 25 0.98" 0.111500
    dimensional image
    View Page → Adaptor (1") | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AF.100.075 Legacy Part Number UK:  AF.100.075 - 1" FERRULE x 3/4" BSP FEMALE Legacy Part Number DK:  AF100075 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   22
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.87"
    ADPAFB025025006L
    		Adaptor (1") | Female BSP (1" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1" 1" 25 0.98" 0.118400
    dimensional image
    View Page → Adaptor (1") | Female BSP (1" Thread) | 316L Legacy Part Number IE:  AF.100.100 Legacy Part Number UK:  AF.100.100 - 1" FERRULE x 1" BSP FEMALE Legacy Part Number DK:  AF100100 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   22
    • Ferrule Connection (T):   1"
    • Thread (T):   1"
    • Mating (M) in:   0.87"
    ADPAFB038317006L
    		Adaptor (1 1/2") | Female BSP (1/8" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1 1/2" 1/8" 25 0.98" 0.092900
    dimensional image
    View Page → Adaptor (1 1/2") | Female BSP (1/8" Thread) | 316L Legacy Part Number IE:  AF.150.018 Legacy Part Number UK:  AF.150.018 - 1.1/2" FER to 1/8" BSP FEMALE Legacy Part Number DK:  AF150018 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   35
    • Ferrule Connection (T):   .125"
    • Thread (T):   1/8"
    • Mating (M) in:   1.38"
    ADPAFB038635006L
    		Adaptor (1 1/2") | Female BSP (1/4" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1 1/2" 1/4" 25 0.98" 0.099100
    dimensional image
    View Page → Adaptor (1 1/2") | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AF.150.025 Legacy Part Number UK:  AF.150.025 - 1 1/2" FER x 1/4" BSP FEMALE Legacy Part Number DK:  AF150025 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   35
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   1.38"
    ADPAFB038952006L
    		Adaptor (1 1/2") | Female BSP (3/8" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1 1/2" 3/8" 25 0.98" 0.090700
    dimensional image
    View Page → Adaptor (1 1/2") | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AF.150.038 Legacy Part Number UK:  AF.150.038 - 1 1/2" FER x 3/8" BSP FEMALE Legacy Part Number DK:  AF150038 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   35
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   1.38"
    ADPAFB038127006L
    		Adaptor (1 1/2") | Female BSP (1/2" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1 1/2" 1/2" 25 0.98" 0.115400
    dimensional image
    View Page → Adaptor (1 1/2") | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AF.150.050 Legacy Part Number UK:  AF.150.050 - 1 1/2" FER x 1/2" BSP FEMALE Legacy Part Number DK:  AF150050 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   35
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   1.38"
    ADPAFB038195006L
    		Adaptor (1 1/2") | Female BSP (3/4" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1 1/2" 3/4" 25 0.98" 0.097400
    dimensional image
    View Page → Adaptor (1 1/2") | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AF.150.075 Legacy Part Number UK:  AF.150.075 - 1 1/2" FER x 3/4" BSP FEMALE Legacy Part Number DK:  AF150075 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   35
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   1.38"
    ADPAFB038025006L
    		Adaptor (1 1/2") | Female BSP (1" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 1 1/2" 1" 25 0.98" 0.085600
    dimensional image
    View Page → Adaptor (1 1/2") | Female BSP (1" Thread) | 316L Legacy Part Number IE:  AF.150.100 Legacy Part Number UK:  AF.150.100 - 1 1/2" FERRULE x 1" BSP Legacy Part Number DK:  AF150100 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   50.5
    • Mating (F) mm:   35
    • Ferrule Connection (T):   1"
    • Thread (T):   1"
    • Mating (M) in:   1.38"
    ADPAFB051127006L
    		Adaptor (2") | Female BSP (1/2" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 2" 1/2" 25 0.98" 0.152000
    dimensional image
    View Page → Adaptor (2") | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AF.200.050 Legacy Part Number UK:  AF.200.050 - 2" FERRULE x 1/2" BSP FEMALE Legacy Part Number DK:  AF200050 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   64
    • Mating (F) mm:   47.6
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   1.87"
    ADPAFB051195006L
    		Adaptor (2") | Female BSP (3/4" Thread) | 316L BSP Imperial Female 316L 1.4404 ˜ SS2348 2" 3/4" 25 0.98" 0.176300
    dimensional image
    View Page → Adaptor (2") | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AF.200.075 Legacy Part Number UK:  AF.200.075 - 2" FERRULE x 3/4" BSP FEMALE Legacy Part Number DK:  AF200075 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   64
    • Mating (F) mm:   47.6
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   1.87"
