    BSP Female Metric


    BSP Female Metric
    Description
    BSP Female Adapters Metric; flatness of sealing face meets or exceeds guidelines​. Designed for Pharma (F&B / Dairy / Chem ) applications. Sizes 1/2" to 2" (Stock) <2" (Bespoke).
    Specifications
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​

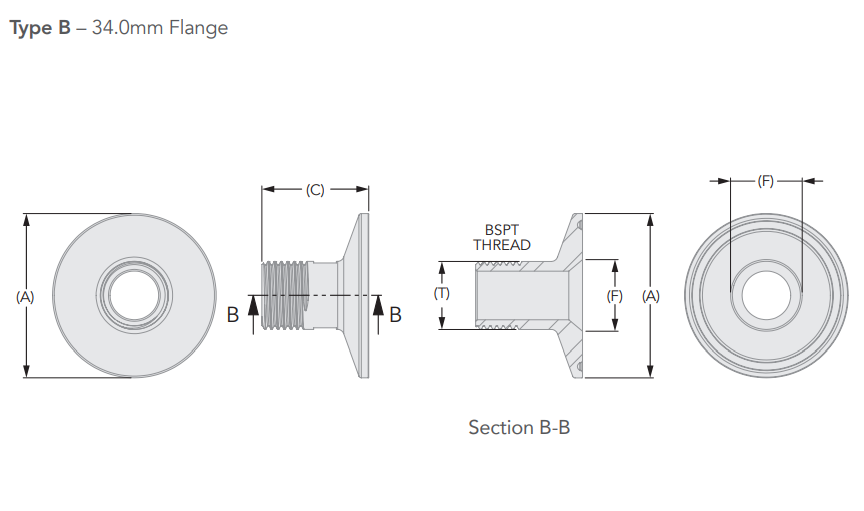

    Dimensional Image
    Features
    • Produced in the UK​
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    Adapters / BSP Female Metric
    Adapters Adapters Hose Adapters Hose Adapters Reducers Reducers Union Fittings Union Fittings Blanks Blanks
    BSP Female Metric BSP Female Metric
    BSP Male Imperial BSP Male Imperial BSP Male Metric BSP Male Metric BSP Female Imperial BSP Female Imperial NPT Male Imperial NPT Male Imperial NPT Male Metric NPT Male Metric NPT Female Imperial NPT Female Imperial NPT Female Metric NPT Female Metric
    Total: 24
    Industry
    PART#    		 Product
    Name    		 Standard Type Gender Material Grade EN Standard ASTM Standard Size (in) Size (DIN) Flange (mm) Flange (in) Connection (in) ID (mm) ID (in) Length (mm) Length (in) Weight
    ADPAFB013635006L
    		Adaptor (DN 10) | Female BSP (1/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 10 1/4" 25 0.98" 0.078500
    dimensional image
    View Page → Adaptor (DN 10) | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AF.D10.025 Legacy Part Number UK:  AF.D10.025 - DIN 10 FER x 1/4" BSP FEMALE Legacy Part Number DK:  AFD10025 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.39"
    ADPAFB013952006L
    		Adaptor (DN 10) | Female BSP (3/8" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 10 3/8" 25 0.98" 0.061000
    dimensional image
    View Page → Adaptor (DN 10) | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AF.D10.038 Legacy Part Number UK:  AF.D10.038 - DIN 10 FER x 3/8" BSP FEMALE Legacy Part Number DK:  AFD10038 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.39"
    ADPAFB013127006L
    		Adaptor (DN 10) | Female BSP (1/2" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 10 1/2" 30 1.18" 0.072000
    dimensional image
    View Page → Adaptor (DN 10) | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AF.D10.050 Legacy Part Number UK:  AF.D10.050 - DIN 10 FER x 1/2" BSP FEMALE Legacy Part Number DK:  AFD10050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.39"
    ADPAFB013195006L
    		Adaptor (DN 10) | Female BSP (3/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 10 3/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AF.D10.075 Legacy Part Number UK:  AF.D10.075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.39"
    ADPAFB019635006L
    		Adaptor (DN 15) | Female BSP (1/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 15 1/4" 25 0.98" 0.072000
    dimensional image
    View Page → Adaptor (DN 15) | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AF.D15.025 Legacy Part Number UK:  AF.D15.025 - DIN 15 FER x 1/4" BSP FEMALE Legacy Part Number DK:  AFD15025 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.63"
    ADPAFB019127006L
    		Adaptor (DN 15) | Female BSP (3/8" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 15 3/8" 25 0.98" 0.080600
    dimensional image
    View Page → Adaptor (DN 15) | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AF.D15.038 Legacy Part Number UK:  AF.D15.050 - DIN 15 FER x 1/2" BSP FEMALE Legacy Part Number DK:  AFD15050 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.63"
    ADPAFB019195006L
    		Adaptor (DN 15) | Female BSP (1/2" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 15 1/2" 30 1.18" 0.079300
    dimensional image
    View Page → Adaptor (DN 15) | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AF.D15.050 Legacy Part Number UK:  AF.D15.075 - DN15 FERRULE to 3/4" BSP F Legacy Part Number DK:  AFD15075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.63"
    ADPAFB023635006L
    		Adaptor (DN 15) | Female BSP (3/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 15 3/4" 30 1.18" 0.080600
    dimensional image
    View Page → Adaptor (DN 15) | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AF.D15.075 Legacy Part Number UK:  AF.D20.025 - DIN 20 FER x 1/4" BSP FEMALE Legacy Part Number DK:  AFD20025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.63"
    ADPAFB023952006L
    		Adaptor (DN 20) | Female BSP (1/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 20 1/4" 25 0.98" 0.080600
    dimensional image
    View Page → Adaptor (DN 20) | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AF.D20.025 Legacy Part Number UK:  AF.D20.038 - DIN 20 FER x 3/8" BSP FEMALE Legacy Part Number DK:  AFD20038 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.79"
    ADPAFB023127006L
    		Adaptor (DN 20) | Female BSP (3/8" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 20 3/8" 25 0.98" 0.079300
    dimensional image
    View Page → Adaptor (DN 20) | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AF.D20.038 Legacy Part Number UK:  AF.D20.050 - DIN 20 FERRULE x 1/2" BSP T Legacy Part Number DK:  AFD20050 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.79"
    ADPAFB023195006L
    		Adaptor (DN 20) | Female BSP (1/2" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 20 1/2" 30 1.18" 0.082800
    dimensional image
    View Page → Adaptor (DN 20) | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AF.D20.050 Legacy Part Number UK:  AF.D20.075 - DIN 20 FER x 3/4" BSP FEMALE Legacy Part Number DK:  AFD20075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.79"
    ADPAFB023025006L
    		Adaptor (DN 20) | Female BSP (3/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 20 3/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AF.D20.075 Legacy Part Number UK:  AF.D20.075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.79"
    ADADFB013635006L
    		Adaptor (DN 10) | Female BSP (1/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 10 1/4" 25 0.98" 0.078500
    dimensional image
    View Page → Adaptor (DN 10) | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AFD.D10.025 Legacy Part Number DK:  AFDD10025 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .25"
    • Mating (F) in:   0.39
    • Length (C) in:   0.98
    • Mating (M) in:   0.39"
    ADADFB013952006L
    		Adaptor (DN 10) | Female BSP (3/8" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 10 3/8" 25 0.98" 0.061000
    dimensional image
    View Page → Adaptor (DN 10) | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AFD.D10.038 Legacy Part Number DK:  AFDD10038 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .375"
    • Mating (F) in:   0.39
    • Length (C) in:   0.98
    • Mating (M) in:   0.39"
    ADADFB013127006L
    		Adaptor (DN 10) | Female BSP (1/2" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 10 1/2" 30 1.18" 0.072000
    dimensional image
    View Page → Adaptor (DN 10) | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AFD.D10.050 Legacy Part Number DK:  AFDD10050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .5"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADFB013195006L
    		Adaptor (DN 10) | Female BSP (3/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 10 3/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 10) | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AFD.D10.075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .75"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADFB019635006L
    		Adaptor (DN 15) | Female BSP (1/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 15 1/4" 25 0.98" 0.072000
    dimensional image
    View Page → Adaptor (DN 15) | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AFD.D15.025 Legacy Part Number DK:  AFDD15025 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .25"
    • Mating (F) in:   0.63
    • Length (C) in:   0.98
    • Mating (M) in:   0.63"
    ADADFB019127006L
    		Adaptor (DN 15) | Female BSP (3/8" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 15 3/8" 25 0.98" 0.080600
    dimensional image
    View Page → Adaptor (DN 15) | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AFD.D15.038 Legacy Part Number DK:  AFDD15050 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .375"
    • Mating (F) in:   0.63
    • Length (C) in:   0.98
    • Mating (M) in:   0.63"
    ADADFB019195006L
    		Adaptor (DN 15) | Female BSP (1/2" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 15 1/2" 30 1.18" 0.079300
    dimensional image
    View Page → Adaptor (DN 15) | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AFD.D15.050 Legacy Part Number DK:  AFDD15075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .5"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADFB023635006L
    		Adaptor (DN 15) | Female BSP (3/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 15 3/4" 30 1.18" 0.080600
    dimensional image
    View Page → Adaptor (DN 15) | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AFD.D15.075 Legacy Part Number DK:  AFDD20025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .75"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADFB023952006L
    		Adaptor (DN 20) | Female BSP (1/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 20 1/4" 25 0.98" 0.080600
    dimensional image
    View Page → Adaptor (DN 20) | Female BSP (1/4" Thread) | 316L Legacy Part Number IE:  AFD.D20.025 Legacy Part Number DK:  AFDD20038 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .25"
    • Mating (F) in:   0.79
    • Length (C) in:   0.98
    • Mating (M) in:   0.79"
    ADADFB023127006L
    		Adaptor (DN 20) | Female BSP (3/8" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 20 3/8" 25 0.98" 0.079300
    dimensional image
    View Page → Adaptor (DN 20) | Female BSP (3/8" Thread) | 316L Legacy Part Number IE:  AFD.D20.038 Legacy Part Number DK:  AFDD20050 Dimensional Image Key:
    • Length (C) mm:   25
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .375"
    • Mating (F) in:   0.79
    • Length (C) in:   0.98
    • Mating (M) in:   0.79"
    ADADFB023195006L
    		Adaptor (DN 20) | Female BSP (1/2" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 20 1/2" 30 1.18" 0.082800
    dimensional image
    View Page → Adaptor (DN 20) | Female BSP (1/2" Thread) | 316L Legacy Part Number IE:  AFD.D20.050 Legacy Part Number DK:  AFDD20075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .5"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    ADADFB023025006L
    		Adaptor (DN 20) | Female BSP (3/4" Thread) | 316L BSP Metric Female 316L 1.4404 ˜ SS2348 DN 20 3/4" 30 1.18" 0.000000
    dimensional image
    View Page → Adaptor (DN 20) | Female BSP (3/4" Thread) | 316L Legacy Part Number IE:  AFD.D20.075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .75"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    Adaptor (DN 10) | Female BSP (1/4
    Adaptor (DN 10) | Female BSP (1/4" Thread) | 316L
    Pharmaceutical
    ADPAFB013635006L
    Adaptor (DN 10) | Female BSP (3/8
    Adaptor (DN 10) | Female BSP (3/8" Thread) | 316L
    Pharmaceutical
    ADPAFB013952006L
    Adaptor (DN 10) | Female BSP (1/2
    Adaptor (DN 10) | Female BSP (1/2" Thread) | 316L
    Pharmaceutical
    ADPAFB013127006L
    Adaptor (DN 10) | Female BSP (3/4
    Adaptor (DN 10) | Female BSP (3/4" Thread) | 316L
    Pharmaceutical
    ADPAFB013195006L
    Adaptor (DN 15) | Female BSP (1/4
    Adaptor (DN 15) | Female BSP (1/4" Thread) | 316L
    Pharmaceutical
    ADPAFB019635006L
    Adaptor (DN 15) | Female BSP (3/8
    Adaptor (DN 15) | Female BSP (3/8" Thread) | 316L
    Pharmaceutical
    ADPAFB019127006L
    Adaptor (DN 15) | Female BSP (1/2
    Adaptor (DN 15) | Female BSP (1/2" Thread) | 316L
    Pharmaceutical
    ADPAFB019195006L
    Adaptor (DN 15) | Female BSP (3/4
    Adaptor (DN 15) | Female BSP (3/4" Thread) | 316L
    Pharmaceutical
    ADPAFB023635006L
    Adaptor (DN 20) | Female BSP (1/4
    Adaptor (DN 20) | Female BSP (1/4" Thread) | 316L
    Pharmaceutical
    ADPAFB023952006L
    Adaptor (DN 20) | Female BSP (3/8
    Adaptor (DN 20) | Female BSP (3/8" Thread) | 316L
    Pharmaceutical
    ADPAFB023127006L
    Adaptor (DN 20) | Female BSP (1/2
    Adaptor (DN 20) | Female BSP (1/2" Thread) | 316L
    Pharmaceutical
    ADPAFB023195006L
    Adaptor (DN 20) | Female BSP (3/4
    Adaptor (DN 20) | Female BSP (3/4" Thread) | 316L
    Pharmaceutical
    ADPAFB023025006L
    Adaptor (DN 10) | Female BSP (1/4
    Adaptor (DN 10) | Female BSP (1/4" Thread) | 316L
    Hygienic
    ADADFB013635006L
    Adaptor (DN 10) | Female BSP (3/8
    Adaptor (DN 10) | Female BSP (3/8" Thread) | 316L
    Hygienic
    ADADFB013952006L
    Adaptor (DN 10) | Female BSP (1/2
    Adaptor (DN 10) | Female BSP (1/2" Thread) | 316L
    Hygienic
    ADADFB013127006L
    Adaptor (DN 10) | Female BSP (3/4
    Adaptor (DN 10) | Female BSP (3/4" Thread) | 316L
    Hygienic
    ADADFB013195006L
    Adaptor (DN 15) | Female BSP (1/4
    Adaptor (DN 15) | Female BSP (1/4" Thread) | 316L
    Hygienic
    ADADFB019635006L
    Adaptor (DN 15) | Female BSP (3/8
    Adaptor (DN 15) | Female BSP (3/8" Thread) | 316L
    Hygienic
    ADADFB019127006L
    Adaptor (DN 15) | Female BSP (1/2
    Adaptor (DN 15) | Female BSP (1/2" Thread) | 316L
    Hygienic
    ADADFB019195006L
    Adaptor (DN 15) | Female BSP (3/4
    Adaptor (DN 15) | Female BSP (3/4" Thread) | 316L
    Hygienic
    ADADFB023635006L
    Adaptor (DN 20) | Female BSP (1/4
    Adaptor (DN 20) | Female BSP (1/4" Thread) | 316L
    Hygienic
    ADADFB023952006L
    Adaptor (DN 20) | Female BSP (3/8
    Adaptor (DN 20) | Female BSP (3/8" Thread) | 316L
    Hygienic
    ADADFB023127006L
    Adaptor (DN 20) | Female BSP (1/2
    Adaptor (DN 20) | Female BSP (1/2" Thread) | 316L
    Hygienic
    ADADFB023195006L
    Adaptor (DN 20) | Female BSP (3/4
    Adaptor (DN 20) | Female BSP (3/4" Thread) | 316L
    Hygienic
    ADADFB023025006L
