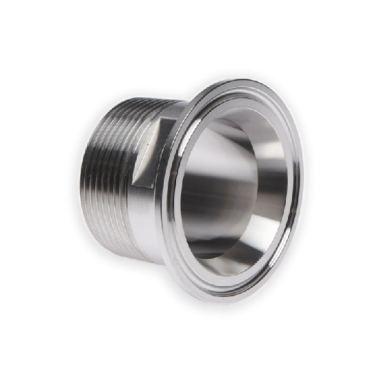

    BSP Male Metric


    BSP Male Metric
    Description
    BSP Male Adapters Metric; flatness of sealing face meets or exceeds guidelines​. Designed for Pharma (F&B / Dairy / Chem ) applications. Sizes 1/2" to 2" (Stock) <2" (Bespoke).
    Specifications
    • Materials are AD2000 (PED) and ASME VIII​
    • Surface finish is 0.8Ra um minimum​

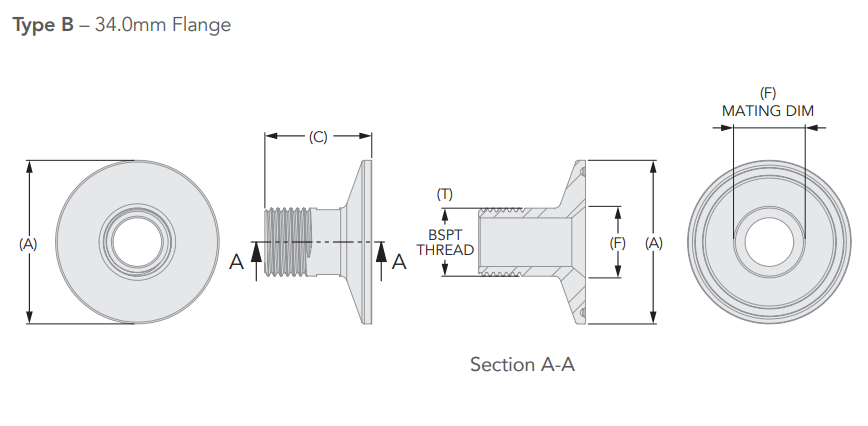

    Dimensional Image
    Features
    • Produced in the UK​
    • Quality checks by ACL are at the highest level for fitting manufacturers:​ JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm​
    Adapters / BSP Male Metric
    Adapters Adapters Hose Adapters Hose Adapters Reducers Reducers Union Fittings Union Fittings Blanks Blanks
    BSP Male Metric BSP Male Metric
    BSP Male Imperial BSP Male Imperial BSP Female Imperial BSP Female Imperial BSP Female Metric BSP Female Metric NPT Male Imperial NPT Male Imperial NPT Male Metric NPT Male Metric NPT Female Imperial NPT Female Imperial NPT Female Metric NPT Female Metric
    Total: 24
    Industry
    PART#    		 Product
    Name    		 Standard Type Gender Material Grade EN Standard ASTM Standard Size (in) Size (DIN) Flange (mm) Flange (in) Connection (in) ID (mm) ID (in) Length (mm) Length (in) Weight
    ADADMB013635006L
    		Adaptor (DN 10) | Male BSP (1/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 10 1/4" 30 1.18" 0.041600
    dimensional image
    View Page → Adaptor (DN 10) | Male BSP (1/4" Thread) | 316L GTIN:  840384329331 Legacy Part Number DK:  AMDD10025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .25"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADMB013952006L
    		Adaptor (DN 10) | Male BSP (3/8" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 10 3/8" 30 1.18" 0.053100
    dimensional image
    View Page → Adaptor (DN 10) | Male BSP (3/8" Thread) | 316L GTIN:  840384329348 Legacy Part Number DK:  AMDD10038 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .375"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADMB013127006L
    		Adaptor (DN 10) | Male BSP (1/2" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 10 1/2" 30 1.18" 0.073700
    dimensional image
    View Page → Adaptor (DN 10) | Male BSP (1/2" Thread) | 316L GTIN:  840384329355 Legacy Part Number DK:  AMDD10050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .5"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADMB013195006L
    		Adaptor (DN 10) | Male BSP (3/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 10 3/4" 30 1.18" 0.100700
    dimensional image
    View Page → Adaptor (DN 10) | Male BSP (3/4" Thread) | 316L GTIN:  840384329362 Legacy Part Number DK:  AMDD10075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .75"
    • Mating (F) in:   0.39
    • Length (C) in:   1.18
    • Mating (M) in:   0.39"
    ADADMB019635006L
    		Adaptor (DN 15) | Male BSP (1/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 15 1/4" 30 1.18" 0.038700
    dimensional image
    View Page → Adaptor (DN 15) | Male BSP (1/4" Thread) | 316L GTIN:  840384329379 Legacy Part Number DK:  AMDD15025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .25"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADMB019127006L
    		Adaptor (DN 15) | Male BSP (3/8" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 15 3/8" 30 1.18" 0.052800
    dimensional image
    View Page → Adaptor (DN 15) | Male BSP (3/8" Thread) | 316L GTIN:  840384329386 Legacy Part Number DK:  AMDD15050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .375"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADMB019195006L
    		Adaptor (DN 15) | Male BSP (1/2" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 15 1/2" 30 1.18" 0.075100
    dimensional image
    View Page → Adaptor (DN 15) | Male BSP (1/2" Thread) | 316L GTIN:  840384329393 Legacy Part Number DK:  AMDD15075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .5"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADMB023635006L
    		Adaptor (DN 15) | Male BSP (3/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 15 3/4" 30 1.18" 0.035400
    dimensional image
    View Page → Adaptor (DN 15) | Male BSP (3/4" Thread) | 316L GTIN:  840384329409 Legacy Part Number DK:  AMDD20025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .75"
    • Mating (F) in:   0.63
    • Length (C) in:   1.18
    • Mating (M) in:   0.63"
    ADADMB023952006L
    		Adaptor (DN 20) | Male BSP (1/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 20 1/4" 30 1.18" 0.045800
    dimensional image
    View Page → Adaptor (DN 20) | Male BSP (1/4" Thread) | 316L GTIN:  840384329416 Legacy Part Number DK:  AMDD20038 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .25"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    ADADMB023127006L
    		Adaptor (DN 20) | Male BSP (3/8" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 20 3/8" 30 1.18" 0.051200
    dimensional image
    View Page → Adaptor (DN 20) | Male BSP (3/8" Thread) | 316L GTIN:  840384329423 Legacy Part Number DK:  AMDD20050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .375"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    ADADMB023195006L
    		Adaptor (DN 20) | Male BSP (1/2" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 20 1/2" 30 1.18" 0.051200
    dimensional image
    View Page → Adaptor (DN 20) | Male BSP (1/2" Thread) | 316L GTIN:  840384329430 Legacy Part Number DK:  AMDD20075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .5"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    ADADMB023025006L
    		Adaptor (DN 20) | Male BSP (3/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 20 3/4" 30 1.18" 0.138000
    dimensional image
    View Page → Adaptor (DN 20) | Male BSP (3/4" Thread) | 316L GTIN:  840384329447 Legacy Part Number DK:  AMDD20100 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .75"
    • Mating (F) in:   0.79
    • Length (C) in:   1.18
    • Mating (M) in:   0.79"
    ADPAMB013635006L
    		Adaptor (DN 10) | Male BSP (1/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 10 1/4" 30 1.18" 0.041600
    dimensional image
    View Page → Adaptor (DN 10) | Male BSP (1/4" Thread) | 316L GTIN:  840384322110 Legacy Part Number UK:  AM.D10.025 - DIN 10 FERRULE x 1/4" BSP T Legacy Part Number DK:  AMD10025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.39"
    ADPAMB013952006L
    		Adaptor (DN 10) | Male BSP (3/8" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 10 3/8" 30 1.18" 0.053100
    dimensional image
    View Page → Adaptor (DN 10) | Male BSP (3/8" Thread) | 316L GTIN:  840384322127 Legacy Part Number UK:  AM.D10.038 - DIN 10 FERRULE x 3/8" BSP T Legacy Part Number DK:  AMD10038 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.39"
    ADPAMB013127006L
    		Adaptor (DN 10) | Male BSP (1/2" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 10 1/2" 30 1.18" 0.073700
    dimensional image
    View Page → Adaptor (DN 10) | Male BSP (1/2" Thread) | 316L GTIN:  840384322134 Legacy Part Number UK:  AM.D10.050 - DIN 10 FERRULE x 1/2" BSP T Legacy Part Number DK:  AMD10050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.39"
    ADPAMB013195006L
    		Adaptor (DN 10) | Male BSP (3/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 10 3/4" 30 1.18" 0.100700
    dimensional image
    View Page → Adaptor (DN 10) | Male BSP (3/4" Thread) | 316L GTIN:  840384322141 Legacy Part Number UK:  AM.D10.075 - DN10 FERR x 3/4" BSP T MALE Legacy Part Number DK:  AMD10075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   10
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.39"
    ADPAMB019635006L
    		Adaptor (DN 15) | Male BSP (1/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 15 1/4" 30 1.18" 0.038700
    dimensional image
    View Page → Adaptor (DN 15) | Male BSP (1/4" Thread) | 316L GTIN:  840384322158 Legacy Part Number UK:  AM.D15.025 - DIN 15 FERRULE x 1/4" BSP T Legacy Part Number DK:  AMD15025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.63"
    ADPAMB019127006L
    		Adaptor (DN 15) | Male BSP (3/8" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 15 3/8" 30 1.18" 0.052800
    dimensional image
    View Page → Adaptor (DN 15) | Male BSP (3/8" Thread) | 316L GTIN:  840384322165 Legacy Part Number UK:  AM.D15.050 - DIN 15 FERRULE x 1/2" BSP T Legacy Part Number DK:  AMD15050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.63"
    ADPAMB019195006L
    		Adaptor (DN 15) | Male BSP (1/2" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 15 1/2" 30 1.18" 0.075100
    dimensional image
    View Page → Adaptor (DN 15) | Male BSP (1/2" Thread) | 316L GTIN:  840384322172 Legacy Part Number UK:  AM.D15.075 - DIN 15 FER x 3/4" BSP T MALE Legacy Part Number DK:  AMD15075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.63"
    ADPAMB023635006L
    		Adaptor (DN 15) | Male BSP (3/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 15 3/4" 30 1.18" 0.035400
    dimensional image
    View Page → Adaptor (DN 15) | Male BSP (3/4" Thread) | 316L GTIN:  840384322189 Legacy Part Number UK:  AM.D20.025 - DIN 20 FERRULE x 1/4" BSP T Legacy Part Number DK:  AMD20025 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   16
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.63"
    ADPAMB023952006L
    		Adaptor (DN 20) | Male BSP (1/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 20 1/4" 30 1.18" 0.045800
    dimensional image
    View Page → Adaptor (DN 20) | Male BSP (1/4" Thread) | 316L GTIN:  840384322196 Legacy Part Number UK:  AM.D20.038 - DIN 20 FERRULE X 3/8" BSP Legacy Part Number DK:  AMD20038 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .25"
    • Thread (T):   1/4"
    • Mating (M) in:   0.79"
    ADPAMB023127006L
    		Adaptor (DN 20) | Male BSP (3/8" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 20 3/8" 30 1.18" 0.051200
    dimensional image
    View Page → Adaptor (DN 20) | Male BSP (3/8" Thread) | 316L GTIN:  840384322202 Legacy Part Number UK:  AM.D20.050 - DIN 20 FERRULE x 1/2" BSP T Legacy Part Number DK:  AMD20050 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .375"
    • Thread (T):   3/8"
    • Mating (M) in:   0.79"
    ADPAMB023195006L
    		Adaptor (DN 20) | Male BSP (1/2" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 20 1/2" 30 1.18" 0.051200
    dimensional image
    View Page → Adaptor (DN 20) | Male BSP (1/2" Thread) | 316L GTIN:  840384322219 Legacy Part Number UK:  AM.D20.075 - DIN 20 FERRULE X 3/4" BSP T Legacy Part Number DK:  AMD20075 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .5"
    • Thread (T):   1/2"
    • Mating (M) in:   0.79"
    ADPAMB023025006L
    		Adaptor (DN 20) | Male BSP (3/4" Thread) | 316L BSP Metric Male 316L 1.4404 ˜ SS2348 DN 20 3/4" 30 1.18" 0.138000
    dimensional image
    View Page → Adaptor (DN 20) | Male BSP (3/4" Thread) | 316L GTIN:  840384322226 Legacy Part Number UK:  AM.D20.100 - DIN 20 FERRULE x 1" BSP T Legacy Part Number DK:  AMD20100 Dimensional Image Key:
    • Length (C) mm:   30
    • Flange (A) mm:   34
    • Mating (F) mm:   20
    • Ferrule Connection (T):   .75"
    • Thread (T):   3/4"
    • Mating (M) in:   0.79"
    Adaptor (DN 10) | Male BSP (1/4
    Adaptor (DN 10) | Male BSP (1/4" Thread) | 316L
    Hygienic
    ADADMB013635006L
    Adaptor (DN 10) | Male BSP (3/8
    Adaptor (DN 10) | Male BSP (3/8" Thread) | 316L
    Hygienic
    ADADMB013952006L
    Adaptor (DN 10) | Male BSP (1/2
    Adaptor (DN 10) | Male BSP (1/2" Thread) | 316L
    Hygienic
    ADADMB013127006L
    Adaptor (DN 10) | Male BSP (3/4
    Adaptor (DN 10) | Male BSP (3/4" Thread) | 316L
    Hygienic
    ADADMB013195006L
    Adaptor (DN 15) | Male BSP (1/4
    Adaptor (DN 15) | Male BSP (1/4" Thread) | 316L
    Hygienic
    ADADMB019635006L
    Adaptor (DN 15) | Male BSP (3/8
    Adaptor (DN 15) | Male BSP (3/8" Thread) | 316L
    Hygienic
    ADADMB019127006L
    Adaptor (DN 15) | Male BSP (1/2
    Adaptor (DN 15) | Male BSP (1/2" Thread) | 316L
    Hygienic
    ADADMB019195006L
    Adaptor (DN 15) | Male BSP (3/4
    Adaptor (DN 15) | Male BSP (3/4" Thread) | 316L
    Hygienic
    ADADMB023635006L
    Adaptor (DN 20) | Male BSP (1/4
    Adaptor (DN 20) | Male BSP (1/4" Thread) | 316L
    Hygienic
    ADADMB023952006L
    Adaptor (DN 20) | Male BSP (3/8
    Adaptor (DN 20) | Male BSP (3/8" Thread) | 316L
    Hygienic
    ADADMB023127006L
    Adaptor (DN 20) | Male BSP (1/2
    Adaptor (DN 20) | Male BSP (1/2" Thread) | 316L
    Hygienic
    ADADMB023195006L
    Adaptor (DN 20) | Male BSP (3/4
    Adaptor (DN 20) | Male BSP (3/4" Thread) | 316L
    Hygienic
    ADADMB023025006L
    Adaptor (DN 10) | Male BSP (1/4
    Adaptor (DN 10) | Male BSP (1/4" Thread) | 316L
    Pharmaceutical
    ADPAMB013635006L
    Adaptor (DN 10) | Male BSP (3/8
    Adaptor (DN 10) | Male BSP (3/8" Thread) | 316L
    Pharmaceutical
    ADPAMB013952006L
    Adaptor (DN 10) | Male BSP (1/2
    Adaptor (DN 10) | Male BSP (1/2" Thread) | 316L
    Pharmaceutical
    ADPAMB013127006L
    Adaptor (DN 10) | Male BSP (3/4
    Adaptor (DN 10) | Male BSP (3/4" Thread) | 316L
    Pharmaceutical
    ADPAMB013195006L
    Adaptor (DN 15) | Male BSP (1/4
    Adaptor (DN 15) | Male BSP (1/4" Thread) | 316L
    Pharmaceutical
    ADPAMB019635006L
    Adaptor (DN 15) | Male BSP (3/8
    Adaptor (DN 15) | Male BSP (3/8" Thread) | 316L
    Pharmaceutical
    ADPAMB019127006L
    Adaptor (DN 15) | Male BSP (1/2
    Adaptor (DN 15) | Male BSP (1/2" Thread) | 316L
    Pharmaceutical
    ADPAMB019195006L
    Adaptor (DN 15) | Male BSP (3/4
    Adaptor (DN 15) | Male BSP (3/4" Thread) | 316L
    Pharmaceutical
    ADPAMB023635006L
    Adaptor (DN 20) | Male BSP (1/4
    Adaptor (DN 20) | Male BSP (1/4" Thread) | 316L
    Pharmaceutical
    ADPAMB023952006L
    Adaptor (DN 20) | Male BSP (3/8
    Adaptor (DN 20) | Male BSP (3/8" Thread) | 316L
    Pharmaceutical
    ADPAMB023127006L
    Adaptor (DN 20) | Male BSP (1/2
    Adaptor (DN 20) | Male BSP (1/2" Thread) | 316L
    Pharmaceutical
    ADPAMB023195006L
    Adaptor (DN 20) | Male BSP (3/4
    Adaptor (DN 20) | Male BSP (3/4" Thread) | 316L
    Pharmaceutical
    ADPAMB023025006L
