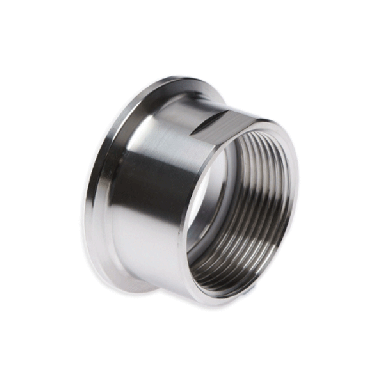

    NPT Female Imperial


    NPT Female Imperial
    Description

    ACL NPT Female Adapters (Imperial) are produced in the UK and designed for Pharmaceutical, Food & Beverage, Dairy and Chemical applications. These adapters provide a reliable connection between NPT female threaded fittings and hygienic imperial tube systems. Sizes range from 1/2" to 2" from stock, with bespoke sizes available on request.

    All adapters are laser marked with material grade and heat number. 3.1 material certification is available online and a Declaration of Conformity is issued as standard.

    Specifications
    • Materials are AD2000 (PED) and ASME VIII
    • Surface finish is 0.8Ra µm minimum
    • Sizes: 1/2" to 2" (stock); larger sizes bespoke
    • Thread form: NPT to ANSI/ASME B1.20.1

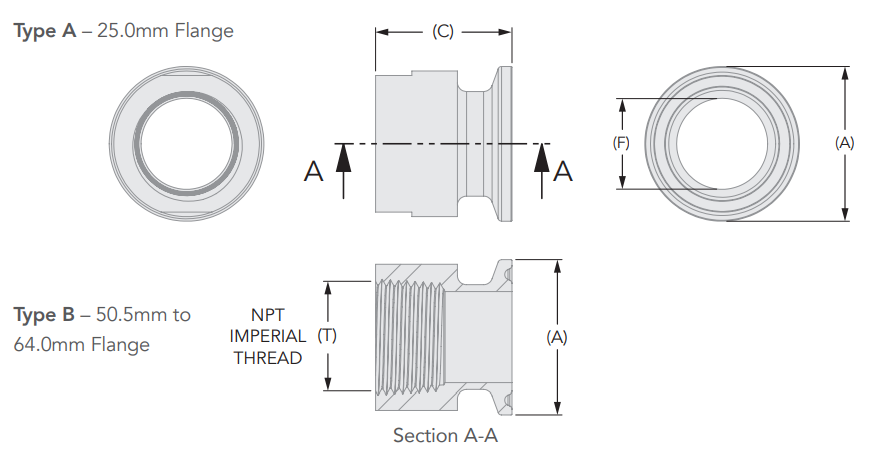

    Dimensional Image
    Features
    • Produced in the UK
    • Quality checks by ACL are at the highest level for fitting manufacturers: JS12 & JS13 tolerances are checked by scanning CMM and reported by SPC
    • Circularity of components is within 0.1mm
    • Flatness of sealing face meets or exceeds guidelines
    • Full laser marking for traceability
    • 3.1 material certification available online
    Materials
    • Material: 316L Stainless Steel as standard
    • Alternative materials available on request
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    Total: 54
    Industry
    PART#    		 Product
    Name    		 Standard Type Size Imperial Size Metric Size ISO Size 2 Imperial Size 2 Metric Flange Flange 1 Gender Material Connection
    Add
    To Cart     LIST
    PRICE
    Pharmaceutical
    ADPAFN127317006L
    		Adaptor (1/2") | Female NPT (1/8" Thread) | 316L NPT Imperial 1/2" 0.98" 25 Female 316L 1/8"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (1/2") | Female NPT (1/8" Thread) | 316L Legacy Part Number IE:   AF.NPT.050.018 Legacy Part Number UK:   AF.NPT.050.018 - 1/2" FERRULE x 1/8" NPT Legacy Part Number DK:   AFNPT050018
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .125"
    • • Thread (T):  1/8"
    • • Mating (M) in:  0.39"
    Pharmaceutical
    ADPAFN127635006L
    		Adaptor (1/2") | Female NPT (1/4" Thread) | 316L NPT Imperial 1/2" 0.98" 25 Female 316L 1/4"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (1/2") | Female NPT (1/4" Thread) | 316L Legacy Part Number IE:   AF.NPT.050.025 Legacy Part Number UK:   AF.NPT.050.025 - 1/2" FERRULE x 1/4" NPT Legacy Part Number DK:   AFNPT050025
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .25"
    • • Thread (T):  1/4"
    • • Mating (M) in:  0.39"
    Pharmaceutical
    ADPAFN127952006L
    		Adaptor (1/2") | Female NPT (3/8" Thread) | 316L NPT Imperial 1/2" 0.98" 25 Female 316L 3/8"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (1/2") | Female NPT (3/8" Thread) | 316L Legacy Part Number IE:   AF.NPT.050.038 Legacy Part Number UK:   AF.NPT.050.038 - 1/2" FERRULE x 3/8" NPT Legacy Part Number DK:   AFNPT050038
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .375"
    • • Thread (T):  3/8"
    • • Mating (M) in:  0.39"
    Pharmaceutical
    ADPAFN127127006L
    		Adaptor (1/2") | Female NPT (1/2" Thread) | 316L NPT Imperial 1/2" 0.98" 25 Female 316L 1/2"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (1/2") | Female NPT (1/2" Thread) | 316L Legacy Part Number IE:   AF.NPT.050.050 Legacy Part Number UK:   AF.NPT.050.050 - 1/2" FERRULE x 1/2" NPT Legacy Part Number DK:   AFNPT050050
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .5"
    • • Thread (T):  1/2"
    • • Mating (M) in:  0.39"
    Pharmaceutical
    ADPAFN127195006L
    		Adaptor (1/2") | Female NPT (3/4" Thread) | 316L NPT Imperial 1/2" 0.98" 25 Female 316L 3/4"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (1/2") | Female NPT (3/4" Thread) | 316L Legacy Part Number IE:   AF.NPT.050.075 Legacy Part Number UK:   AF.NPT.050.075 - 1/2" FERRULE to 3/4" NPT Legacy Part Number DK:   AFNPT050075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  25
    • • Mating (F) mm:  10
    • • Ferrule Connection (T):  .75"
    • • Thread (T):  3/4"
    • • Mating (M) in:  0.39"
    Pharmaceutical
    ADPAFN195317006L
    		Adaptor (3/4") | Female NPT (1/8" Thread) | 316L NPT Imperial 3/4" 0.98" 25 Female 316L 1/8"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (3/4") | Female NPT (1/8" Thread) | 316L Legacy Part Number IE:   AF.NPT.075.018 Legacy Part Number UK:   AF.NPT.075.018
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .125"
    • • Thread (T):  1/8"
    • • Mating (M) in:  0.63"
    Pharmaceutical
    ADPAFN195635006L
    		Adaptor (3/4") | Female NPT (1/4" Thread) | 316L NPT Imperial 3/4" 0.98" 25 Female 316L 1/4"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (3/4") | Female NPT (1/4" Thread) | 316L Legacy Part Number IE:   AF.NPT.075.025 Legacy Part Number UK:   AF.NPT.075.025 - 3/4" FERRULE - 1/4" NPT Legacy Part Number DK:   AFNPT075025
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .25"
    • • Thread (T):  1/4"
    • • Mating (M) in:  0.63"
    Pharmaceutical
    ADPAFN195952006L
    		Adaptor (3/4") | Female NPT (3/8" Thread) | 316L NPT Imperial 3/4" 0.98" 25 Female 316L 3/8"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (3/4") | Female NPT (3/8" Thread) | 316L Legacy Part Number IE:   AF.NPT.075.038 Legacy Part Number UK:   AF.NPT.075.038 - 3/4" FERRULE x 3/8" NPT Legacy Part Number DK:   AFNPT075038
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .375"
    • • Thread (T):  3/8"
    • • Mating (M) in:  0.63"
    Pharmaceutical
    ADPAFN195127006L
    		Adaptor (3/4") | Female NPT (1/2" Thread) | 316L NPT Imperial 3/4" 0.98" 25 Female 316L 1/2"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (3/4") | Female NPT (1/2" Thread) | 316L Legacy Part Number IE:   AF.NPT.075.050 Legacy Part Number UK:   AF.NPT.075.050 - 3/4" TO 1/2" NPT FEMALE
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .5"
    • • Thread (T):  1/2"
    • • Mating (M) in:  0.63"
    Pharmaceutical
    ADPAFN195195006L
    		Adaptor (3/4") | Female NPT (3/4" Thread) | 316L NPT Imperial 3/4" 0.98" 25 Female 316L 3/4"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (3/4") | Female NPT (3/4" Thread) | 316L Legacy Part Number IE:   AF.NPT.075.075 Legacy Part Number UK:   AF.NPT.075.075 - 3/4" FERRULE x 3/4" NPT-F Legacy Part Number DK:   AFNPT075075
    Dimensional Image Key:
    • • Length (C) mm:  30
    • • Flange (A) mm:  25
    • • Mating (F) mm:  16
    • • Ferrule Connection (T):  .75"
    • • Thread (T):  3/4"
    • • Mating (M) in:  0.63"
    Pharmaceutical
    ADPAFN025317006L
    		Adaptor (1") | Female NPT (1/8" Thread) | 316L NPT Imperial 1" 1.99" 50.5 Female 316L 1/8"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (1") | Female NPT (1/8" Thread) | 316L Legacy Part Number IE:   AF.NPT.100.018 Legacy Part Number UK:   AF.NPT.100.018
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  50.5
    • • Mating (F) mm:  22
    • • Ferrule Connection (T):  .125"
    • • Thread (T):  1/8"
    • • Mating (M) in:  0.87"
    Pharmaceutical
    ADPAFN025635006L
    		Adaptor (1") | Female NPT (1/4" Thread) | 316L NPT Imperial 1" 1.99" 50.5 Female 316L 1/4"(in)
    Contact Customer Service For
    Access To Availability & Ordering
    dimensional image
    View Page
     Adaptor (1") | Female NPT (1/4" Thread) | 316L Legacy Part Number IE:   AF.NPT.100.025 Legacy Part Number UK:   AF.NPT.100.025 - 1" FERRULE X 1/4" NPT Legacy Part Number DK:   AFNPT100025
    Dimensional Image Key:
    • • Length (C) mm:  25
    • • Flange (A) mm:  50.5
    • • Mating (F) mm:  22
    • • Ferrule Connection (T):  .25"
    • • Thread (T):  1/4"
    • • Mating (M) in:  0.87"
