    Description

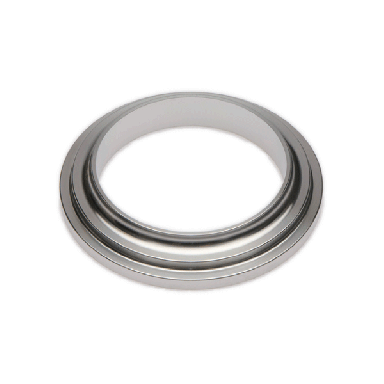

    ACL DS Liners provide the weld end of the DS union assembly and are produced from 316L stainless steel bar or tube stock for use in Food & Beverage and Dairy process systems. Surface finishes meet or exceed industry requirements for hygienic applications.

    Specifications
    • Surface finish: 0.8Ra µm minimum (internal)
    • Materials comply with AD2000 (PED) and ASME VIII

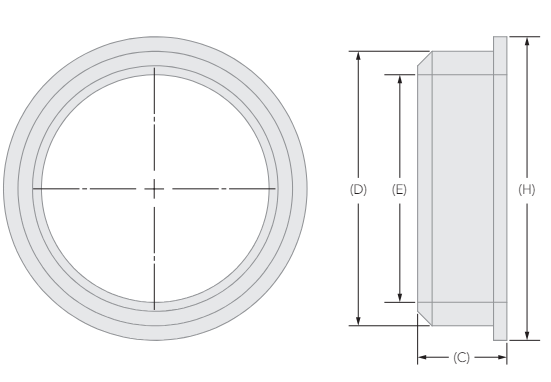

    Dimensional Image
    Features
    • Produced from 316L stainless steel
    • Internal surface finish to 0.8Ra µm or better
    • Flatness and circularity within tight tolerances
    • Full laser marking for traceability
    • Available in a full range of sizes
    Materials
    • Material: 316L Stainless Steel as standard
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    DS Fittings / DS Liners
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings
    DS Liners DS Liners
    DS Male DS Male DS Nuts DS Nuts DS Blanks DS Blanks DS Blind Nuts, with Chain DS Blind Nuts, with Chain DS Union Gaskets DS Union Gaskets
    Total: 6
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) ID (mm) ID (in) OD (mm) OD (in) Flange (mm) Flange (in) Neck (mm) Neck (in) Height (mm) Height (in) Face (mm) Face (in) Weight
    LIDS000250126L
    		DS Union (1") | Liner | 316L DS Liner 316L 1.4404 S31603 1" 0.89" 25 0.98" 0.300000
    dimensional image
    View Page → DS Union (1") | Liner | 316L Legacy Part Number IE:  LI.DS.0100 Legacy Part Number UK:  LI.DS.0100 Legacy Part Number DK:  LIDS0100 Dimensional Image Key:
    • Length (C) mm:   11
    • ID (E) mm:   22.6
    • OD 2 (H) mm:   40
    • OD (D) mm:   25
    • OD (H) mm:   25
    • ID (D) mm:   22.6
    • ID (E) in:   0.89"
    • Length (C) in:   0.43"
    • OD 1 (D) in:   0.98
    • OD 2 (H) in:   0.98"
    • OD (H) in:   1.57"
    • ID (D) in:   0.89"
    • ID mm:   22.6
    LIDS000380126L
    		DS Union (1 1/2") | Liner | 316L DS Liner 316L 1.4404 S31603 1 1/2" 1.4" 38 1.5" 0.350000
    dimensional image
    View Page → DS Union (1 1/2") | Liner | 316L Legacy Part Number IE:  LI.DS.0150 Legacy Part Number UK:  LI.DS.0150 Legacy Part Number DK:  LIDS0150 Dimensional Image Key:
    • Length (C) mm:   11
    • ID (E) mm:   35.6
    • OD 2 (H) mm:   54
    • OD (D) mm:   38
    • OD (H) mm:   38
    • ID (D) mm:   35.6
    • ID (E) in:   1.4"
    • Length (C) in:   0.43"
    • OD 1 (D) in:   1.5
    • OD 2 (H) in:   1.5"
    • OD (H) in:   2.13"
    • ID (D) in:   1.4"
    • ID mm:   35.6
    LIDS000510126L
    		DS Union (2") | Liner | 316L DS Liner 316L 1.4404 S31603 2" 1.91" 51 2.01" 0.450000
    dimensional image
    View Page → DS Union (2") | Liner | 316L Legacy Part Number IE:  LI.DS.0200 Legacy Part Number UK:  LI.DS.0200 Legacy Part Number DK:  LIDS0200 Dimensional Image Key:
    • Length (C) mm:   11
    • ID (E) mm:   48.6
    • OD 2 (H) mm:   68
    • OD (D) mm:   51
    • OD (H) mm:   51
    • ID (D) mm:   48.6
    • ID (E) in:   1.91"
    • Length (C) in:   0.43"
    • OD 1 (D) in:   2.01
    • OD 2 (H) in:   2.01"
    • OD (H) in:   2.68"
    • ID (D) in:   1.91"
    • ID mm:   48.6
    LIDS000630166L
    		DS Union (2 1/2") | Liner | 316L DS Liner 316L 1.4404 S31603 2 1/2" 2.37" 63.5 2.5" 0.600000
    dimensional image
    View Page → DS Union (2 1/2") | Liner | 316L Legacy Part Number IE:  LI.DS.0250 Legacy Part Number UK:  LI.DS.0250 Legacy Part Number DK:  LIDS0250 Dimensional Image Key:
    • Length (C) mm:   12
    • ID (E) mm:   60.3
    • OD 2 (H) mm:   84
    • OD (D) mm:   63.5
    • OD (H) mm:   63.5
    • ID (D) mm:   60.3
    • ID (E) in:   2.37"
    • Length (C) in:   0.47"
    • OD 1 (D) in:   2.5
    • OD 2 (H) in:   2.5"
    • OD (H) in:   3.31"
    • ID (D) in:   2.37"
    • ID mm:   60.3
    LIDS000760206L
    		DS Union (3") | Liner | 316L DS Liner 316L 1.4404 S31603 3" 2.84" 76.1 3" 0.750000
    dimensional image
    View Page → DS Union (3") | Liner | 316L Legacy Part Number IE:  LI.DS.0300 Legacy Part Number UK:  LI.DS.0300 Legacy Part Number DK:  LIDS0300 Dimensional Image Key:
    • Length (C) mm:   12
    • ID (E) mm:   72.1
    • OD 2 (H) mm:   96
    • OD (D) mm:   76.1
    • OD (H) mm:   76.1
    • ID (D) mm:   72.1
    • ID (E) in:   2.84"
    • Length (C) in:   0.47"
    • OD 1 (D) in:   3
    • OD 2 (H) in:   3"
    • OD (H) in:   3.78"
    • ID (D) in:   2.84"
    • ID mm:   72.1
    LIDS001010206L
    		DS Union (4") | Liner | 316L DS Liner 316L 1.4404 S31603 4" 3.84" 101.6 4" 0.900000
    dimensional image
    View Page → DS Union (4") | Liner | 316L Legacy Part Number IE:  LI.DS.0400 Legacy Part Number UK:  LI.DS.0400 Legacy Part Number DK:  LIDS0400 Dimensional Image Key:
    • Length (C) mm:   12
    • ID (E) mm:   97.6
    • OD 2 (H) mm:   124
    • OD (D) mm:   101.6
    • OD (H) mm:   101.6
    • ID (D) mm:   97.6
    • ID (E) in:   3.84"
    • Length (C) in:   0.47"
    • OD 1 (D) in:   4
    • OD 2 (H) in:   4"
    • OD (H) in:   4.88"
    • ID (D) in:   3.84"
    • ID mm:   97.6
