DS Blind Nuts, with Chain

Description

ACL DS Blind Nuts with Chain are manufactured for use in Food & Beverage and Dairy process systems. The integral chain retains the blind nut when the fitting is open, preventing loss and maintaining hygiene. Produced from 316L stainless steel.

Specifications

Surface finish: 0.8Ra µm minimum
Materials comply with AD2000 (PED) and ASME VIII

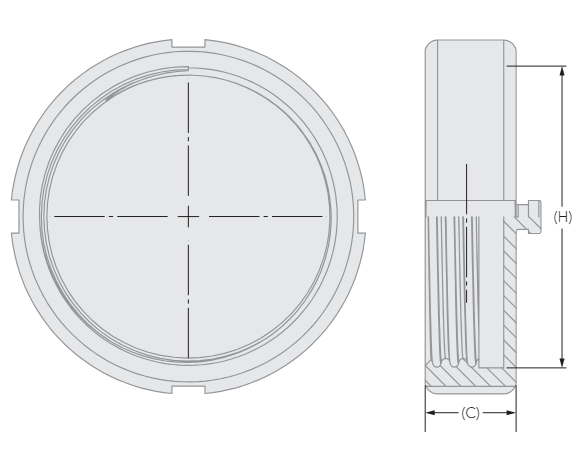

Dimensional Image

Features

Integral chain retains blind nut during maintenance
Prevents loss of blind nut in process environments
Produced from 316L stainless steel
High-quality surface finish for hygienic compliance
Available in a full range of sizes

Materials

Material: 316L Stainless Steel (nut and chain)

Data Center

ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

Industry PART#	Product Name	Standard	Type	Material Grade	EN Standard	ASTM Standard	Size (in)	OD (mm)	OD (in)	Weight
Hygienic BNDS000250126L	DS Union (1") \| Blind Nut \| 316L	DS	Blind Nut	316L	1.4404	S31603	1"	44	1.73"	0.300000
View Page → DS Union (1") \| Blind Nut \| 316L Legacy Part Number IE: BO.DS.0100 Legacy Part Number UK: BO.DS.0100 Legacy Part Number DK: BODS0100 Dimensional Image Key: Length (C) mm: 20 OD (H) mm: 44 Length (C) in: 0.79" OD 2 (H) in: 1.73" ID (H) in: 1.73
Hygienic BNDS000380126L	DS Union (1 1/2") \| Blind Nut \| 316L	DS	Blind Nut	316L	1.4404	S31603	1 1/2"	58	2.28"	0.400000
View Page → DS Union (1 1/2") \| Blind Nut \| 316L Legacy Part Number IE: BO.DS.0150 Legacy Part Number UK: BO.DS.0150 Legacy Part Number DK: BODS0150 Dimensional Image Key: Length (C) mm: 20 OD (H) mm: 58 Length (C) in: 0.79" OD 2 (H) in: 2.28" ID (H) in: 2.28
Hygienic BNDS000510126L	DS Union (2") \| Blind Nut \| 316L	DS	Blind Nut	316L	1.4404	S31603	2"	72	2.83"	0.400000
View Page → DS Union (2") \| Blind Nut \| 316L Legacy Part Number IE: BO.DS.0200 Legacy Part Number UK: BO.DS.0200 Legacy Part Number DK: BODS0200 Dimensional Image Key: Length (C) mm: 22 OD (H) mm: 72 Length (C) in: 0.87" OD 2 (H) in: 2.83" ID (H) in: 2.83
Hygienic BNDS000630166L	DS Union (2 1/2") \| Blind Nut \| 316L	DS	Blind Nut	316L	1.4404	S31603	2 1/2"	88	3.46"	0.400000
View Page → DS Union (2 1/2") \| Blind Nut \| 316L Legacy Part Number IE: BO.DS.0250 Legacy Part Number UK: BO.DS.0250 Legacy Part Number DK: BODS0250 Dimensional Image Key: Length (C) mm: 24 OD (H) mm: 88 Length (C) in: 0.94" OD 2 (H) in: 3.46" ID (H) in: 3.46
Hygienic BNDS000760206L	DS Union (3") \| Blind Nut \| 316L	DS	Blind Nut	316L	1.4404	S31603	3"	100	3.94"	0.500000
View Page → DS Union (3") \| Blind Nut \| 316L Legacy Part Number IE: BO.DS.0300 Legacy Part Number UK: BO.DS.0300 Legacy Part Number DK: BODS0300 Dimensional Image Key: Length (C) mm: 25 OD (H) mm: 100 Length (C) in: 0.98" OD 2 (H) in: 3.94" ID (H) in: 3.94
Hygienic BNDS001010206L	DS Union (4") \| Blind Nut \| 316L	DS	Blind Nut	316L	1.4404	S31603	4"	130	5.12"	0.500000
View Page → DS Union (4") \| Blind Nut \| 316L Legacy Part Number IE: BO.DS.0400 Legacy Part Number UK: BO.DS.0400 Legacy Part Number DK: BODS0400 Dimensional Image Key: Length (C) mm: 28 OD (H) mm: 130 Length (C) in: 1.1" OD 2 (H) in: 5.12" ID (H) in: 5.12

DS Union (1") | Blind Nut | 316L
Hygienic
BNDS000250126L

DS Union (1 1/2") | Blind Nut | 316L
Hygienic
BNDS000380126L

DS Union (2") | Blind Nut | 316L
Hygienic
BNDS000510126L

DS Union (2 1/2") | Blind Nut | 316L
Hygienic
BNDS000630166L

DS Union (3") | Blind Nut | 316L
Hygienic
BNDS000760206L

DS Union (4") | Blind Nut | 316L
Hygienic
BNDS001010206L
