DS Blanks

Description

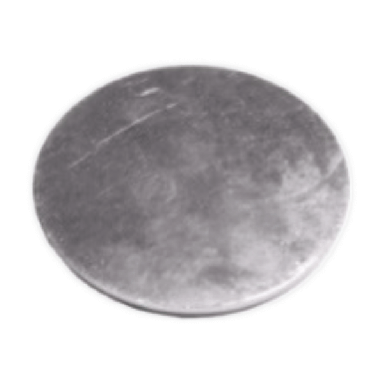

ACL DS Blanks are used in conjunction with DS nuts to provide a hygienic end closure for DS union connections in Food & Beverage and Dairy process systems. Produced from 316L stainless steel with a high-quality surface finish.

Specifications

Surface finish: 0.8Ra µm minimum
Materials comply with AD2000 (PED) and ASME VIII

Dimensional Image

Features

Provides hygienic end closure for DS union connections
Used in conjunction with DS nuts
Produced from 316L stainless steel
High-quality surface finish for hygienic compliance
Available in a full range of sizes

Materials

Material: 316L Stainless Steel as standard

Data Center

ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

Industry PART#	Product Name	Standard	Type	Material Grade	EN Standard	ASTM Standard	Size (in)	OD (mm)	OD (in)	Weight
Hygienic BLDS000250126L	DS Union (1") \| Blank \| 316L	DS	Blank	316L	1.4404	S31603	1"	40	1.57"	0.300000
View Page → DS Union (1") \| Blank \| 316L Legacy Part Number IE: BK.DS.0100 Legacy Part Number UK: BK.DS.0100 Legacy Part Number DK: BKDS0100 Dimensional Image Key: OD (H) mm: 40 Thickness (T) mm: 3 OD 2 (H) in: 1.57" Thickness (T) in: 0.12" OD (H) in: 1.57
Hygienic BLDS000380126L	DS Union (1 1/2") \| Blank \| 316L	DS	Blank	316L	1.4404	S31603	1 1/2"	54	2.13"	0.400000
View Page → DS Union (1 1/2") \| Blank \| 316L Legacy Part Number IE: BK.DS.0150 Legacy Part Number UK: BK.DS.0150 Legacy Part Number DK: BKDS0150 Dimensional Image Key: OD (H) mm: 54 Thickness (T) mm: 3 OD 2 (H) in: 2.13" Thickness (T) in: 0.12" OD (H) in: 2.13
Hygienic BLDS000510126L	DS Union (2") \| Blank \| 316L	DS	Blank	316L	1.4404	S31603	2"	68	2.68"	0.400000
View Page → DS Union (2") \| Blank \| 316L Legacy Part Number IE: BK.DS.0200 Legacy Part Number UK: BK.DS.0200 Legacy Part Number DK: BKDS0200 Dimensional Image Key: OD (H) mm: 68 Thickness (T) mm: 3 OD 2 (H) in: 2.68" Thickness (T) in: 0.12" OD (H) in: 2.68
Hygienic BLDS000630166L	DS Union (2 1/2") \| Blank \| 316L	DS	Blank	316L	1.4404	S31603	2 1/2"	84	3.31"	0.400000
View Page → DS Union (2 1/2") \| Blank \| 316L Legacy Part Number IE: BK.DS.0250 Legacy Part Number UK: BK.DS.0250 Legacy Part Number DK: BKDS0250 Dimensional Image Key: OD (H) mm: 84 Thickness (T) mm: 4 OD 2 (H) in: 3.31" Thickness (T) in: 0.16" OD (H) in: 3.31
Hygienic BLDS000760206L	DS Union (3") \| Blank \| 316L	DS	Blank	316L	1.4404	S31603	3"	96	3.78"	0.500000
View Page → DS Union (3") \| Blank \| 316L Legacy Part Number IE: BK.DS.0300 Legacy Part Number UK: BK.DS.0300 Legacy Part Number DK: BKDS0300 Dimensional Image Key: OD (H) mm: 96 Thickness (T) mm: 4 OD 2 (H) in: 3.78" Thickness (T) in: 0.16" OD (H) in: 3.78
Hygienic BLDS001010206L	DS Union (4") \| Blank \| 316L	DS	Blank	316L	1.4404	S31603	4"	124	4.88"	0.500000
View Page → DS Union (4") \| Blank \| 316L Legacy Part Number IE: BK.DS.0400 Legacy Part Number UK: BK.DS.0400 Legacy Part Number DK: BKDS0400 Dimensional Image Key: OD (H) mm: 124 Thickness (T) mm: 4 OD 2 (H) in: 4.88" Thickness (T) in: 0.16" OD (H) in: 4.88
