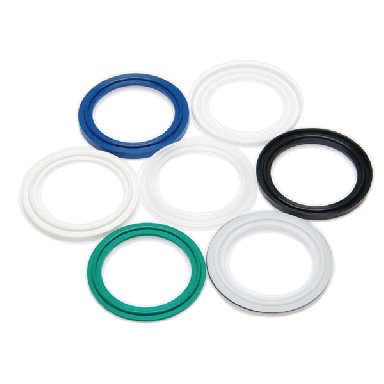

    Mini Series (Metric & Imperial)


    Mini Series (Metric & Imperial)
    Description
    Mini Series Gaskets Metric and Imperial, creating an airtight fit between parts.
    Specifications
    • BS / DIN / SMS / ISO – all standards are available
    • All gaskets are FDA tested. Some are USP VI <87> <88> ​

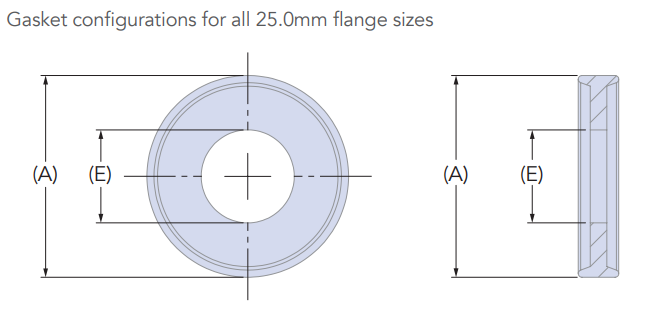

    Dimensional Image
    Features
    • Mesh gaskets inners are interchangeable (reducing end user cost)​
    • Full range of common materials and colours are available​
    • Unlipped gaskets are available for all stock items​
    • Full range of temperatures and chemical compatibility can be covered​
    Additional Material Codes

    Not finding what you're looking for? These material codes are available on request, contact us to inquire:

    Material Type Ordering Code
    EPDM BlueEU
    EPDM BlackEK
    Silicone WhiteSW
    Silicone TranslucentST
    FKM GreenVG
    FKM BlackFB
    PTFE SolidPS
    PTFE Envelope (Viton®)PE
    PTFE Envelope (EPDM)PZ
    NitrileNT
    Tri-Clamp Gaskets / Mini Series (Metric & Imperial)
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets
    Mini Series (Metric & Imperial) Mini Series (Metric & Imperial)
    BS 4825 BS 4825 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 DIN 32676 DIN 32676 ISO 1127 Standard ISO 1127 Standard ISO 2037 Series 1 & 2 ISO 2037 Series 1 & 2 Metal Detectable (EPDM Blue / EPDM Black) Metal Detectable (EPDM Blue / EPDM Black) ISO 1127 Variations ISO 1127 Variations
    Total: 22
    Industry
    PART#    		 Product
    Name    		 Standard Type Size (in) Size (DN) Size (mm) Material Grade Flange A (mm) Flange A (in) ID (mm) ID (in)
    GDULM2025006EK
    		Gasket (4mm) | Mini Series - Metric | EPDM Black (FDA) Mini Series - Metric 4 EPDM Black (FDA) 22.00 0.87" 0.25"
    dimensional image
    View Page → Gasket (4mm) | Mini Series - Metric | EPDM Black (FDA) Legacy Part Number IE:  GK.MS.04 Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   4
    • Actual ID (V) mm:   6.32
    • ID (E) in:   0.16"
    • Actual ID (V) in:   0.25
    • ID mm:   6.32
    GDULM2025008EK
    		Gasket (6mm) | Mini Series - Metric | EPDM Black (FDA) Mini Series - Metric 6 EPDM Black (FDA) 22.00 0.87" 0.29"
    dimensional image
    View Page → Gasket (6mm) | Mini Series - Metric | EPDM Black (FDA) Legacy Part Number IE:  GK.MS.06 Legacy Part Number UK:  GK.MS.06.EK - MINI SERIES 6mm EPDM BLACK - Legacy Part Number DK:  GKMS06EK Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   6
    • Actual ID (V) mm:   7.32
    • ID (E) in:   0.24"
    • Actual ID (V) in:   0.29
    • ID mm:   7.32
    GDULM2025010EK
    		Gasket (8mm) | Mini Series - Metric | EPDM Black (FDA) Mini Series - Metric 8 EPDM Black (FDA) 22.00 0.87" 0.38"
    dimensional image
    View Page → Gasket (8mm) | Mini Series - Metric | EPDM Black (FDA) Legacy Part Number IE:  GK.MS.08 Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   8
    • Actual ID (V) mm:   9.54
    • ID (E) in:   0.31"
    • Actual ID (V) in:   0.38
    • ID mm:   9.54
    GDULM2025012EK
    		Gasket (10mm) | Mini Series - Metric | EPDM Black (FDA) Mini Series - Metric 10 EPDM Black (FDA) 22.00 0.87" 0.45"
    dimensional image
    View Page → Gasket (10mm) | Mini Series - Metric | EPDM Black (FDA) Legacy Part Number IE:  GK.MS.10 Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   10
    • Actual ID (V) mm:   11.32
    • ID (E) in:   0.39"
    • Actual ID (V) in:   0.45
    • ID mm:   11.32
    GDULM2025014EK
    		Gasket (12mm) | Mini Series - Metric | EPDM Black (FDA) Mini Series - Metric 12 EPDM Black (FDA) 22.00 0.87" 0.53"
    dimensional image
    View Page → Gasket (12mm) | Mini Series - Metric | EPDM Black (FDA) Legacy Part Number IE:  GK.MS.12 Legacy Part Number UK:  GK.MS.12.EK - MINI SERIES 12mm EPDM BLACK Legacy Part Number DK:  GKMS12EK Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   12
    • Actual ID (V) mm:   13.34
    • ID (E) in:   0.47"
    • Actual ID (V) in:   0.53
    • ID mm:   13.34
    GDULM2025016EK
    		Gasket (14mm) | Mini Series - Metric | EPDM Black (FDA) Mini Series - Metric 14 EPDM Black (FDA) 22.00 0.87" 0.61"
    dimensional image
    View Page → Gasket (14mm) | Mini Series - Metric | EPDM Black (FDA) Legacy Part Number IE:  GK.MS.14 Legacy Part Number UK:  GK.MS.14.EK - MINI SERIES 14mm EPDM BLACK Legacy Part Number DK:  GKMS14EK/GKIS1D010EK Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   16
    • Actual ID (V) mm:   15.61
    • ID (E) in:   0.63"
    • Actual ID (V) in:   0.61
    • ID mm:   15.61
    GDULM2025018EK
    		Gasket (16mm) | Mini Series - Metric | EPDM Black (FDA) Mini Series - Metric 16 EPDM Black (FDA) 22.00 0.87" 0.65"
    dimensional image
    View Page → Gasket (16mm) | Mini Series - Metric | EPDM Black (FDA) Legacy Part Number IE:  GK.MS.16 Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   16
    • Actual ID (V) mm:   16.49
    • ID (E) in:   0.63"
    • Actual ID (V) in:   0.65
    • ID mm:   16.49
    GDULM2025635EK
    		Gasket (1/4") | Mini Series - Imperial | EPDM Black (FDA) Mini Series - Imperial 1/4" EPDM Black (FDA) 22.00 0.87" 0.25"
    dimensional image
    View Page → Gasket (1/4") | Mini Series - Imperial | EPDM Black (FDA) Legacy Part Number IE:  GK.MSI.025 Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   4.57
    • Actual ID (V) mm:   6.32
    • ID (E) in:   0.18"
    • Actual ID (V) in:   0.25
    • ID mm:   6.32
    GDULM2025952EK
    		Gasket (3/8") | Mini Series - Imperial | EPDM Black (FDA) Mini Series - Imperial 3/8" EPDM Black (FDA) 22.00 0.87" 0.38"
    dimensional image
    View Page → Gasket (3/8") | Mini Series - Imperial | EPDM Black (FDA) Legacy Part Number IE:  GK.MSI.038 Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   7.71
    • Actual ID (V) mm:   9.54
    • ID (E) in:   0.3"
    • Actual ID (V) in:   0.38
    • ID mm:   9.54
    GDULM2025127EK
    		Gasket (1/2") | Mini Series - Imperial | EPDM Black (FDA) Mini Series - Imperial 1/2" EPDM Black (FDA) 22.00 0.87" 0.44"
    dimensional image
    View Page → Gasket (1/2") | Mini Series - Imperial | EPDM Black (FDA) Legacy Part Number IE:  GK.MSI.050 Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   9.52
    • Actual ID (V) mm:   11.21
    • ID (E) in:   0.37"
    • Actual ID (V) in:   0.44
    • ID mm:   11.21
    GDULM2025195EK
    		Gasket (3/4") | Mini Series - Imperial | EPDM Black (FDA) Mini Series - Imperial 3/4" EPDM Black (FDA) 22.00 0.87" 0.65"
    dimensional image
    View Page → Gasket (3/4") | Mini Series - Imperial | EPDM Black (FDA) Legacy Part Number IE:  GK.MSI.075 Dimensional Image Key:
    • Flange (A) mm:   22
    • Flange (A) in:   0.87"
    • ID (E) mm:   15.87
    • Actual ID (V) mm:   16.49
    • ID (E) in:   0.62"
    • Actual ID (V) in:   0.65
    • ID mm:   16.49
    GPULM2025006EK
    		Gasket (4mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Mini Series - Metric 4 EPDM Black (FDA USP VI) 22.00 0.87" 0.25"
    dimensional image
    View Page → Gasket (4mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MS.04 Legacy Part Number UK:  GK.MS.04.EK6 - MINI SERIES 4mm EPDM BLACK Legacy Part Number DK:  GKMS04EK6 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   4
    • Actual ID (V) mm:   6.32
    • ID (E) in:   0.16"
    • Actual ID (V) in:   0.25
    • ID mm:   6.32
    GPULM2025008EK
    		Gasket (6mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Mini Series - Metric 6 EPDM Black (FDA USP VI) 22.00 0.87" 0.29"
    dimensional image
    View Page → Gasket (6mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MS.06 Legacy Part Number UK:  GK.MS.06.EK6 - MINI SERIES 6mm EPDM BLACK Legacy Part Number DK:  GKMS06EK6 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   6
    • Actual ID (V) mm:   7.32
    • ID (E) in:   0.24"
    • Actual ID (V) in:   0.29
    • ID mm:   7.32
    GPULM2025010EK
    		Gasket (8mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Mini Series - Metric 8 EPDM Black (FDA USP VI) 22.00 0.87" 0.38"
    dimensional image
    View Page → Gasket (8mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MS.08 Legacy Part Number UK:  GK.MS.08.EK6 - MINI SERIES 8mm EPDM BLACK Legacy Part Number DK:  GKMS08EK6 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   8
    • Actual ID (V) mm:   9.54
    • ID (E) in:   0.31"
    • Actual ID (V) in:   0.38
    • ID mm:   9.54
    GPULM2025012EK
    		Gasket (10mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Mini Series - Metric 10 EPDM Black (FDA USP VI) 22.00 0.87" 0.45"
    dimensional image
    View Page → Gasket (10mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MS.10 Legacy Part Number UK:  GK.MS.10.EK6 - MINI SERIES 10mm EPDM BLACK Legacy Part Number DK:  GKMS10EK6 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   10
    • Actual ID (V) mm:   11.32
    • ID (E) in:   0.39"
    • Actual ID (V) in:   0.45
    • ID mm:   11.32
    GPULM2025014EK
    		Gasket (12mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Mini Series - Metric 12 EPDM Black (FDA USP VI) 22.00 0.87" 0.53"
    dimensional image
    View Page → Gasket (12mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MS.12 Legacy Part Number UK:  GK.MS.12.EK6 - MINI SERIES 12mm EPDM BLACK Legacy Part Number DK:  GKMS12EK6 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   12
    • Actual ID (V) mm:   13.34
    • ID (E) in:   0.47"
    • Actual ID (V) in:   0.53
    • ID mm:   13.34
    GPULM2025016EK
    		Gasket (14mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Mini Series - Metric 14 EPDM Black (FDA USP VI) 22.00 0.87" 0.61"
    dimensional image
    View Page → Gasket (14mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MS.14 Legacy Part Number UK:  GK.MS.14.EK6 - MINI SERIES 14mm EPDM BLACK Legacy Part Number DK:  GKMS14EK6 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   16
    • Actual ID (V) mm:   15.61
    • ID (E) in:   0.63"
    • Actual ID (V) in:   0.61
    • ID mm:   15.61
    GPULM2025018EK
    		Gasket (16mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Mini Series - Metric 16 EPDM Black (FDA USP VI) 22.00 0.87" 0.65"
    dimensional image
    View Page → Gasket (16mm) | Mini Series - Metric | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MS.16 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   16
    • Actual ID (V) mm:   16.49
    • ID (E) in:   0.63"
    • Actual ID (V) in:   0.65
    • ID mm:   16.49
    GPULM2025635EK
    		Gasket (1/4") | Mini Series - Imperial | EPDM Black (FDA USP VI) Mini Series - Imperial 1/4" EPDM Black (FDA USP VI) 22.00 0.87" 0.25"
    dimensional image
    View Page → Gasket (1/4") | Mini Series - Imperial | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MSI.025 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   4.57
    • Actual ID (V) mm:   6.32
    • ID (E) in:   0.18"
    • Actual ID (V) in:   0.25
    • ID mm:   6.32
    GPULM2025952EK
    		Gasket (3/8") | Mini Series - Imperial | EPDM Black (FDA USP VI) Mini Series - Imperial 3/8" EPDM Black (FDA USP VI) 22.00 0.87" 0.38"
    dimensional image
    View Page → Gasket (3/8") | Mini Series - Imperial | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MSI.038 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   7.71
    • Actual ID (V) mm:   9.54
    • ID (E) in:   0.3"
    • Actual ID (V) in:   0.38
    • ID mm:   9.54
    GPULM2025127EK
    		Gasket (1/2") | Mini Series - Imperial | EPDM Black (FDA USP VI) Mini Series - Imperial 1/2" EPDM Black (FDA USP VI) 22.00 0.87" 0.44"
    dimensional image
    View Page → Gasket (1/2") | Mini Series - Imperial | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MSI.050 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   9.52
    • Actual ID (V) mm:   11.21
    • ID (E) in:   0.37"
    • Actual ID (V) in:   0.44
    • ID mm:   11.21
    GPULM2025195EK
    		Gasket (3/4") | Mini Series - Imperial | EPDM Black (FDA USP VI) Mini Series - Imperial 3/4" EPDM Black (FDA USP VI) 22.00 0.87" 0.65"
    dimensional image
    View Page → Gasket (3/4") | Mini Series - Imperial | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.MSI.075 Dimensional Image Key:
    • Flange (A) mm:   22
    • ID (E) mm:   15.87
    • Actual ID (V) mm:   16.49
    • ID (E) in:   0.62"
    • Actual ID (V) in:   0.65
    • ID mm:   16.49
    Gasket (4mm) | Mini Series - Metric | EPDM Black (FDA)
    Gasket (4mm) | Mini Series - Metric | EPDM Black (FDA)
    Hygienic
    GDULM2025006EK
    Gasket (6mm) | Mini Series - Metric | EPDM Black (FDA)
    Gasket (6mm) | Mini Series - Metric | EPDM Black (FDA)
    Hygienic
    GDULM2025008EK
    Gasket (8mm) | Mini Series - Metric | EPDM Black (FDA)
    Gasket (8mm) | Mini Series - Metric | EPDM Black (FDA)
    Hygienic
    GDULM2025010EK
    Gasket (10mm) | Mini Series - Metric | EPDM Black (FDA)
    Gasket (10mm) | Mini Series - Metric | EPDM Black (FDA)
    Hygienic
    GDULM2025012EK
    Gasket (12mm) | Mini Series - Metric | EPDM Black (FDA)
    Gasket (12mm) | Mini Series - Metric | EPDM Black (FDA)
    Hygienic
    GDULM2025014EK
    Gasket (14mm) | Mini Series - Metric | EPDM Black (FDA)
    Gasket (14mm) | Mini Series - Metric | EPDM Black (FDA)
    Hygienic
    GDULM2025016EK
    Gasket (16mm) | Mini Series - Metric | EPDM Black (FDA)
    Gasket (16mm) | Mini Series - Metric | EPDM Black (FDA)
    Hygienic
    GDULM2025018EK
    Gasket (1/4
    Gasket (1/4") | Mini Series - Imperial | EPDM Black (FDA)
    Hygienic
    GDULM2025635EK
    Gasket (3/8
    Gasket (3/8") | Mini Series - Imperial | EPDM Black (FDA)
    Hygienic
    GDULM2025952EK
    Gasket (1/2
    Gasket (1/2") | Mini Series - Imperial | EPDM Black (FDA)
    Hygienic
    GDULM2025127EK
    Gasket (3/4
    Gasket (3/4") | Mini Series - Imperial | EPDM Black (FDA)
    Hygienic
    GDULM2025195EK
    Gasket (4mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Gasket (4mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025006EK
    Gasket (6mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Gasket (6mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025008EK
    Gasket (8mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Gasket (8mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025010EK
    Gasket (10mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Gasket (10mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025012EK
    Gasket (12mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Gasket (12mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025014EK
    Gasket (14mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Gasket (14mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025016EK
    Gasket (16mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Gasket (16mm) | Mini Series - Metric | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025018EK
    Gasket (1/4
    Gasket (1/4") | Mini Series - Imperial | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025635EK
    Gasket (3/8
    Gasket (3/8") | Mini Series - Imperial | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025952EK
    Gasket (1/2
    Gasket (1/2") | Mini Series - Imperial | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025127EK
    Gasket (3/4
    Gasket (3/4") | Mini Series - Imperial | EPDM Black (FDA USP VI)
    Pharmaceutical
    Data Center
    GPULM2025195EK
