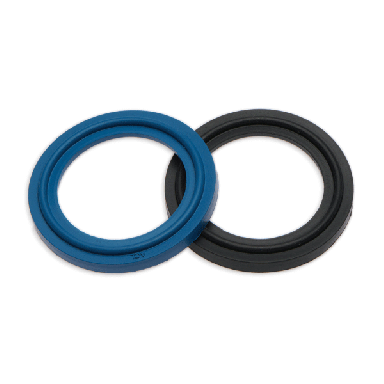

    Metal Detectable (EPDM Blue / EPDM Black)


    Metal Detectable (EPDM Blue / EPDM Black)
    Description

    Advanced Couplings Ltd are delighted to offer a Metal Detectable gasket – fully produced in the UK from UK sourced compound – to FDA grade.

    The inclusion of ferrites in the compound make it metal & x-ray detectable so that any fragments of rubber, for example by abrasion or breakdown of the seal, can be identified by standard metal detectable software in use in Food & Pharmaceutical production lines.

    Please choose a size and material to see relevant gaskets.

    Specifications
    • BS / DIN / SMS / ISO – all standards are available
    • All gaskets are FDA tested. Some are USP VI <87> <88> ​

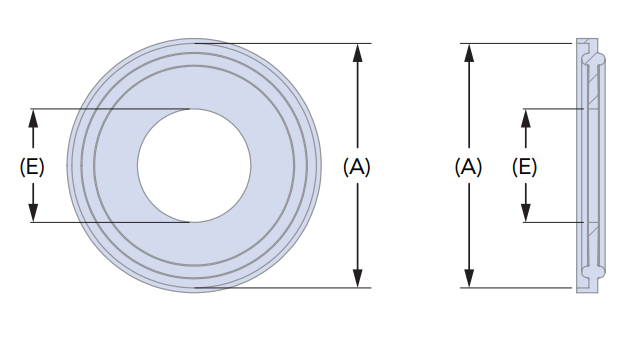

    Dimensional Image
    Features
    • Mesh gaskets inners are interchangeable (reducing end user cost)​
    • Full range of common materials and colours are available​
    • Unlipped gaskets are available for all stock items​
    • Full range of temperatures and chemical compatibility can be covered​
    Additional Material Codes

    Not finding what you're looking for? These material codes are available on request, contact us to inquire:

    Material Type Ordering Code
    EPDM BlueEU
    EPDM BlackEK
    Silicone WhiteSW
    Silicone TranslucentST
    FKM GreenVG
    FKM BlackFB
    PTFE SolidPS
    PTFE Envelope (Viton®)PE
    PTFE Envelope (EPDM)PZ
    NitrileNT
    Tri-Clamp Gaskets / Metal Detectable (EPDM Blue / EPDM Black)
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets
    Metal Detectable (EPDM Blue / EPDM Black) Metal Detectable (EPDM Blue / EPDM Black)
    BS 4825 BS 4825 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 DIN 32676 DIN 32676 ISO 1127 Standard ISO 1127 Standard ISO 2037 Series 1 & 2 ISO 2037 Series 1 & 2 Mini Series (Metric & Imperial) Mini Series (Metric & Imperial) ISO 1127 Variations ISO 1127 Variations
    Total: 12
    Industry
    PART#    		 Product
    Name    		 Standard Type Size (in) Size (DN) Size (mm) Material Grade Flange A (mm) Flange A (in) ID (mm) ID (in)
    GDLPB4050025UX
    		Gasket (1") | BS 4825 Part 3 | EPDM Blue (FDA) BS 4825 Part 3 1" EPDM Blue (FDA) 50.50 1.99" 0.87"
    dimensional image
    View Page → Gasket (1") | BS 4825 Part 3 | EPDM Blue (FDA) Legacy Part Number IE:  GK.BSM.0100 Legacy Part Number UK:  GK.BSM.0100.EU - 1" EPDM BLUE METAL DETECT Legacy Part Number DK:  GKBSM0100EU Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   22.2
    • ID (E) in:   0.87"
    • Actual ID (V) in:   0
    • ID mm:   22.20
    GDLPB4050038UX
    		Gasket (1 1/2") | BS 4825 Part 3 | EPDM Blue (FDA) BS 4825 Part 3 1 1/2" EPDM Blue (FDA) 50.50 1.99" 1.37"
    dimensional image
    View Page → Gasket (1 1/2") | BS 4825 Part 3 | EPDM Blue (FDA) Legacy Part Number IE:  GK.BSM.0150 Legacy Part Number UK:  GK.BSM.0150.EU-1 1/2 EPDM BLUE METAL Legacy Part Number DK:  GKBSM0150EU Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   34.9
    • ID (E) in:   1.37"
    • Actual ID (V) in:   0
    • ID mm:   34.90
    GDLPB4064051UX
    		Gasket (2") | BS 4825 Part 3 | EPDM Blue (FDA) BS 4825 Part 3 2" EPDM Blue (FDA) 64.00 2.52" 1.87"
    dimensional image
    View Page → Gasket (2") | BS 4825 Part 3 | EPDM Blue (FDA) Legacy Part Number IE:  GK.BSM.0200 Legacy Part Number UK:  GK.BSM.0200.EU-2" EPDM BLUE METAL DETECT - Legacy Part Number DK:  GKBSM0200EU Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   47.6
    • ID (E) in:   1.87"
    • Actual ID (V) in:   0
    • ID mm:   47.60
    GDLPB4077063UX
    		Gasket (2 1/2") | BS 4825 Part 3 | EPDM Blue (FDA) BS 4825 Part 3 2 1/2" EPDM Blue (FDA) 77.50 3.05" 2.37"
    dimensional image
    View Page → Gasket (2 1/2") | BS 4825 Part 3 | EPDM Blue (FDA) Legacy Part Number IE:  GK.BSM.0250 Legacy Part Number UK:  GK.BSM.0250.EU-2 1/2 EPDM BLUE METAL Legacy Part Number DK:  GKBSM0250EU Dimensional Image Key:
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • ID (E) mm:   60.3
    • ID (E) in:   2.37"
    • Actual ID (V) in:   0
    • ID mm:   60.30
    GDLPB4091076UX
    		Gasket (3") | BS 4825 Part 3 | EPDM Blue (FDA) BS 4825 Part 3 3" EPDM Blue (FDA) 91.00 3.58" 2.87"
    dimensional image
    View Page → Gasket (3") | BS 4825 Part 3 | EPDM Blue (FDA) Legacy Part Number IE:  GK.BSM.0300 Legacy Part Number UK:  GK.BSM.0300.EU-3" EPDM BLUE METAL Legacy Part Number DK:  GKBSM0300EU Dimensional Image Key:
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   73
    • ID (E) in:   2.87"
    • Actual ID (V) in:   0
    • ID mm:   73.00
    GDLPB4119101UX
    		Gasket (4") | BS 4825 Part 3 | EPDM Blue (FDA) BS 4825 Part 3 4" EPDM Blue (FDA) 119.00 4.69" 3.84"
    dimensional image
    View Page → Gasket (4") | BS 4825 Part 3 | EPDM Blue (FDA) Legacy Part Number IE:  GK.BSM.0400 Legacy Part Number UK:  GK.BSM.0400.EU-4" EPDM BLUE METAL Legacy Part Number DK:  GKBSM0400EU Dimensional Image Key:
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • ID (E) mm:   97.6
    • ID (E) in:   3.84"
    • Actual ID (V) in:   0
    • ID mm:   97.60
    GDLPB4050025EX
    		Gasket (1") | BS 4825 Part 3 | EPDM Black (FDA) BS 4825 Part 3 1" EPDM Black (FDA) 50.50 1.99" 0.87"
    dimensional image
    View Page → Gasket (1") | BS 4825 Part 3 | EPDM Black (FDA) Legacy Part Number IE:  GK.BSM.0100 Legacy Part Number UK:  GK.BSM.0100.EK - 1" EPDM BLACK METAL Legacy Part Number DK:  GKBSM0100EK Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   22.2
    • ID (E) in:   0.87"
    • Actual ID (V) in:   0
    • ID mm:   22.20
    GDLPB4050038EX
    		Gasket (1 1/2") | BS 4825 Part 3 | EPDM Black (FDA) BS 4825 Part 3 1 1/2" EPDM Black (FDA) 50.50 1.99" 1.37"
    dimensional image
    View Page → Gasket (1 1/2") | BS 4825 Part 3 | EPDM Black (FDA) Legacy Part Number IE:  GK.BSM.0150 Legacy Part Number UK:  GK.BSM.0150.EK-1 1/2"EPDM BLACK METAL Legacy Part Number DK:  GKBSM0150EK Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   34.9
    • ID (E) in:   1.37"
    • Actual ID (V) in:   0
    • ID mm:   34.90
    GDLPB4064051EX
    		Gasket (2") | BS 4825 Part 3 | EPDM Black (FDA) BS 4825 Part 3 2" EPDM Black (FDA) 64.00 2.52" 1.87"
    dimensional image
    View Page → Gasket (2") | BS 4825 Part 3 | EPDM Black (FDA) Legacy Part Number IE:  GK.BSM.0200 Legacy Part Number UK:  GK.BSM.0200.EK - 2" EPDM BLACK METAL Legacy Part Number DK:  GKBSM0200EK Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   47.6
    • ID (E) in:   1.87"
    • Actual ID (V) in:   0
    • ID mm:   47.60
    GDLPB4077063EX
    		Gasket (2 1/2") | BS 4825 Part 3 | EPDM Black (FDA) BS 4825 Part 3 2 1/2" EPDM Black (FDA) 77.50 3.05" 2.37"
    dimensional image
    View Page → Gasket (2 1/2") | BS 4825 Part 3 | EPDM Black (FDA) Legacy Part Number IE:  GK.BSM.0250 Legacy Part Number UK:  GK.BSM.0250.EK-2 1/2"EPDM BLACK METAL Legacy Part Number DK:  GKBSM0250EK Dimensional Image Key:
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • ID (E) mm:   60.3
    • ID (E) in:   2.37"
    • Actual ID (V) in:   0
    • ID mm:   60.30
    GDLPB4091076EX
    		Gasket (3") | BS 4825 Part 3 | EPDM Black (FDA) BS 4825 Part 3 3" EPDM Black (FDA) 91.00 3.58" 2.87"
    dimensional image
    View Page → Gasket (3") | BS 4825 Part 3 | EPDM Black (FDA) Legacy Part Number IE:  GK.BSM.0300 Legacy Part Number UK:  GK.BSM.0300.EK - 3" EPDM BLACK METAL Legacy Part Number DK:  GKBSM0300EK Dimensional Image Key:
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   73
    • ID (E) in:   2.87"
    • Actual ID (V) in:   0
    • ID mm:   73.00
    GDLPB4119101EX
    		Gasket (4") | BS 4825 Part 3 | EPDM Black (FDA) BS 4825 Part 3 4" EPDM Black (FDA) 119.00 4.69" 3.84"
    dimensional image
    View Page → Gasket (4") | BS 4825 Part 3 | EPDM Black (FDA) Legacy Part Number IE:  GK.BSM.0400 Legacy Part Number UK:  GK.BSM.0400.EK - 4" EPDM BLACK METAL Legacy Part Number DK:  GKBSM0400EK Dimensional Image Key:
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • ID (E) mm:   97.6
    • ID (E) in:   3.84"
    • Actual ID (V) in:   0
    • ID mm:   97.60
    Gasket (1
    Gasket (1") | BS 4825 Part 3 | EPDM Blue (FDA)
    Hygienic
    GDLPB4050025UX
    Gasket (1 1/2
    Gasket (1 1/2") | BS 4825 Part 3 | EPDM Blue (FDA)
    Hygienic
    GDLPB4050038UX
    Gasket (2
    Gasket (2") | BS 4825 Part 3 | EPDM Blue (FDA)
    Hygienic
    GDLPB4064051UX
    Gasket (2 1/2
    Gasket (2 1/2") | BS 4825 Part 3 | EPDM Blue (FDA)
    Hygienic
    GDLPB4077063UX
    Gasket (3
    Gasket (3") | BS 4825 Part 3 | EPDM Blue (FDA)
    Hygienic
    GDLPB4091076UX
    Gasket (4
    Gasket (4") | BS 4825 Part 3 | EPDM Blue (FDA)
    Hygienic
    GDLPB4119101UX
    Gasket (1
    Gasket (1") | BS 4825 Part 3 | EPDM Black (FDA)
    Hygienic
    GDLPB4050025EX
    Gasket (1 1/2
    Gasket (1 1/2") | BS 4825 Part 3 | EPDM Black (FDA)
    Hygienic
    GDLPB4050038EX
    Gasket (2
    Gasket (2") | BS 4825 Part 3 | EPDM Black (FDA)
    Hygienic
    GDLPB4064051EX
    Gasket (2 1/2
    Gasket (2 1/2") | BS 4825 Part 3 | EPDM Black (FDA)
    Hygienic
    GDLPB4077063EX
    Gasket (3
    Gasket (3") | BS 4825 Part 3 | EPDM Black (FDA)
    Hygienic
    GDLPB4091076EX
    Gasket (4
    Gasket (4") | BS 4825 Part 3 | EPDM Black (FDA)
    Hygienic
    GDLPB4119101EX
