    DIN 32676


    DIN 32676
    Description

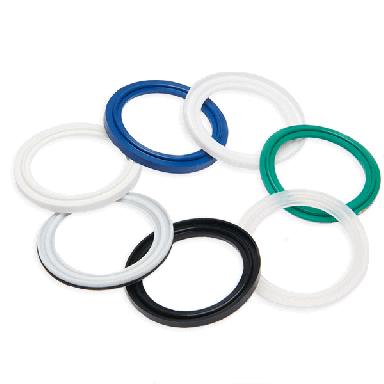

    Acl DIN 32676 gaskets​, create an airtight fit between parts.
    Specifications
    • BS / DIN / SMS / ISO – all standards are available
    • All gaskets are FDA tested. Some are USP VI <87> <88> ​
    Dimensional Image
    Features
    • Mesh gaskets inners are interchangeable (reducing end user cost)​
    • Full range of common materials and colours are available​
    • Gasket are FDA Tested (some are USP <87> <88>)​
    • Unlipped gaskets are available for all stock items​
    • Full range of temperatures and chemical compatibility can be covered​
    • Supplied in Black UV resistant bags​
    Materials
    • EPDM
    • Silicone
    • VITON®
    • PTFE Solid
    • PTFE Envelope
    Additional Material Codes

    Not finding what you're looking for? These material codes are available on request, contact us to inquire:

    Material Type Ordering Code
    EPDM BlueEU
    EPDM BlackEK
    Silicone WhiteSW
    Silicone TranslucentST
    FKM GreenVG
    FKM BlackFB
    PTFE SolidPS
    PTFE Envelope (Viton®)PE
    PTFE Envelope (EPDM)PZ
    NitrileNT
    Tri-Clamp Gaskets / DIN 32676
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets Select Series Tri-Clamps Select Series Tri-Clamps
    DIN 32676 DIN 32676
    BS 4825 BS 4825 BS Schedule 5 BS Schedule 5 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 ISO 1127 Standard ISO 1127 Standard ISO 2037 Series 1 & 2 ISO 2037 Series 1 & 2 Mini Series (Metric & Imperial) Mini Series (Metric & Imperial) Metal Detectable (EPDM Blue / EPDM Black) Metal Detectable (EPDM Blue / EPDM Black) ISO 1127 Variations ISO 1127 Variations
    Total: 36
    Industry
    PART#    		 Product
    Name    		 Standard Type Size (in) Size (DN) Size (mm) Material Grade Flange A (mm) Flange A (in) ID (mm) ID (in)
    GPLPD2034013EK
    		Gasket (DN 10) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 10 EPDM Black (FDA USP VI) 34.00 1.34" 0.39"
    dimensional image
    View Page → Gasket (DN 10) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.010 Legacy Part Number UK:  GK.DN.010.EK6 - DIN 10 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN010EK6 Dimensional Image Key:
    • Flange (A) mm:   34
    • ID (E) mm:   10.01
    • ID (E) in:   0.39"
    • Actual ID (V) in:   0
    • ID mm:   10.00
    GPLPD2034019EK
    		Gasket (DN 15) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 15 EPDM Black (FDA USP VI) 34.00 1.34" 0.63"
    dimensional image
    View Page → Gasket (DN 15) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.015 Legacy Part Number UK:  GK.DN.015.EK6 - DIN 15 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN015EK6 Dimensional Image Key:
    • Flange (A) mm:   34
    • ID (E) mm:   16.01
    • ID (E) in:   0.63"
    • Actual ID (V) in:   0
    • ID mm:   16.00
    GPLPD2034023EK
    		Gasket (DN 20) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 20 EPDM Black (FDA USP VI) 34.00 1.34" 0.79"
    dimensional image
    View Page → Gasket (DN 20) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.020 Legacy Part Number UK:  GK.DN.020.EK6 - DIN 20 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN020EK6 Dimensional Image Key:
    • Flange (A) mm:   34
    • ID (E) mm:   20.01
    • ID (E) in:   0.79"
    • Actual ID (V) in:   0
    • ID mm:   20.00
    GPLPD2050029EK
    		Gasket (DN 25) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 25 EPDM Black (FDA USP VI) 50.50 1.99" 1.02"
    dimensional image
    View Page → Gasket (DN 25) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.025 Legacy Part Number UK:  GK.DN.025.EK6 - DIN 25 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN025EK6 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • ID (E) mm:   26.01
    • ID (E) in:   1.02"
    • Actual ID (V) in:   0
    • ID mm:   26.00
    GPLPD2050035EK
    		Gasket (DN 32) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 32 EPDM Black (FDA USP VI) 50.50 1.99" 1.26"
    dimensional image
    View Page → Gasket (DN 32) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.032 Legacy Part Number UK:  GK.DN.032.EK6 - DIN 32 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN032EK6 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • ID (E) mm:   32.01
    • ID (E) in:   1.26"
    • Actual ID (V) in:   0
    • ID mm:   32.00
    GPLPD2050041EK
    		Gasket (DN 40) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 40 EPDM Black (FDA USP VI) 50.50 1.99" 1.5"
    dimensional image
    View Page → Gasket (DN 40) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.040 Legacy Part Number UK:  GK.DN.040.EK6 - DIN 40 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN040EK6 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • ID (E) mm:   38.01
    • ID (E) in:   1.5"
    • Actual ID (V) in:   0
    • ID mm:   38.00
    GPLPD2064053EK
    		Gasket (DN 50) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 50 EPDM Black (FDA USP VI) 64.00 2.52" 1.97"
    dimensional image
    View Page → Gasket (DN 50) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.050 Legacy Part Number UK:  GK.DN.050.EK6 - DIN 50 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN050EK6 Dimensional Image Key:
    • Flange (A) mm:   64.01
    • ID (E) mm:   50.01
    • ID (E) in:   1.97"
    • Actual ID (V) in:   0
    • ID mm:   50.00
    GPLPD2091070EK
    		Gasket (DN 65) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 65 EPDM Black (FDA USP VI) 91.00 3.58" 2.6"
    dimensional image
    View Page → Gasket (DN 65) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.065 Legacy Part Number UK:  GK.DN.065.EK6 - DIN 65 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN065EK6 Dimensional Image Key:
    • Flange (A) mm:   91.01
    • ID (E) mm:   66.01
    • ID (E) in:   2.6"
    • Actual ID (V) in:   0
    • ID mm:   66.00
    GPLPD2106085EK
    		Gasket (DN 80) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 80 EPDM Black (FDA USP VI) 106.00 4.17" 3.19"
    dimensional image
    View Page → Gasket (DN 80) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.080 Legacy Part Number UK:  GK.DN.080.EK6 - DIN 80 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN080EK6 Dimensional Image Key:
    • Flange (A) mm:   106.01
    • ID (E) mm:   81.01
    • ID (E) in:   3.19"
    • Actual ID (V) in:   0
    • ID mm:   81.00
    GPLPD2119104EK
    		Gasket (DN 100) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 100 EPDM Black (FDA USP VI) 119.00 4.69" 3.94"
    dimensional image
    View Page → Gasket (DN 100) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.100 Legacy Part Number UK:  GK.DN.100.EK6 - DIN 100 EPDM BLACK LIPPED Legacy Part Number DK:  GKDN100EK6 Dimensional Image Key:
    • Flange (A) mm:   119.01
    • ID (E) mm:   100.01
    • ID (E) in:   3.94"
    • Actual ID (V) in:   0
    • ID mm:   100.00
    GPLPD2155129EK
    		Gasket (DN 125) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 125 EPDM Black (FDA USP VI) 155.00 6.1" 4.92"
    dimensional image
    View Page → Gasket (DN 125) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.125 Dimensional Image Key:
    • Flange (A) mm:   155.01
    • ID (E) mm:   125.01
    • ID (E) in:   4.92"
    • Actual ID (V) in:   0
    • ID mm:   125.00
    GPLPD2183154EK
    		Gasket (DN 150) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 150 EPDM Black (FDA USP VI) 183.00 7.2" 5.91"
    dimensional image
    View Page → Gasket (DN 150) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.150 Dimensional Image Key:
    • Flange (A) mm:   183.01
    • ID (E) mm:   150.01
    • ID (E) in:   5.91"
    • Actual ID (V) in:   0
    • ID mm:   150.00
    GPLPD2233204EK
    		Gasket (DN 200) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 200 EPDM Black (FDA USP VI) 233.50 9.19" 7.87"
    dimensional image
    View Page → Gasket (DN 200) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DN.200 Dimensional Image Key:
    • Flange (A) mm:   233.51
    • ID (E) mm:   200.01
    • ID (E) in:   7.87"
    • Actual ID (V) in:   0
    • ID mm:   200.00
    GPLPD2144127EK
    		Gasket (DN 125) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 125 EPDM Black (FDA USP VI) 144.40 5.69" 4.92"
    dimensional image
    View Page → Gasket (DN 125) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DNX.125 Dimensional Image Key:
    • Flange (A) mm:   144.41
    • ID (E) mm:   125.01
    • ID (E) in:   4.92"
    • Actual ID (V) in:   0
    • ID mm:   125.00
    GPLPD2167154EK
    		Gasket (DN 150) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 150 EPDM Black (FDA USP VI) 167.00 6.57" 5.91"
    dimensional image
    View Page → Gasket (DN 150) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DNX.150 Dimensional Image Key:
    • Flange (A) mm:   167.01
    • ID (E) mm:   150.01
    • ID (E) in:   5.91"
    • Actual ID (V) in:   0
    • ID mm:   150.00
    GPLPD2217204EK
    		Gasket (DN 200) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 200 EPDM Black (FDA USP VI) 217.40 8.56" 7.87"
    dimensional image
    View Page → Gasket (DN 200) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DNX.200 Dimensional Image Key:
    • Flange (A) mm:   217.41
    • ID (E) mm:   200.01
    • ID (E) in:   7.87"
    • Actual ID (V) in:   0
    • ID mm:   200.00
    GPLPD2268254EK
    		Gasket (DN 250) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 250 EPDM Black (FDA USP VI) 268.00 10.55" 9.84"
    dimensional image
    View Page → Gasket (DN 250) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DNX.250 Dimensional Image Key:
    • Flange (A) mm:   268.01
    • ID (E) mm:   250.01
    • ID (E) in:   9.84"
    • Actual ID (V) in:   0
    • ID mm:   250.00
    GPLPD2319304EK
    		Gasket (DN 300) | DIN 32676 Lipped | EPDM Black (FDA USP VI) DIN 32676 Lipped DN 300 EPDM Black (FDA USP VI) 319.00 12.56" 11.81"
    dimensional image
    View Page → Gasket (DN 300) | DIN 32676 Lipped | EPDM Black (FDA USP VI) Legacy Part Number IE:  GK.DNX.300 Dimensional Image Key:
    • Flange (A) mm:   319.01
    • ID (E) mm:   300.01
    • ID (E) in:   11.81"
    • Actual ID (V) in:   0
    • ID mm:   300.00
    GDLPD2034013EK
    		Gasket (DN 10) | DIN 32676 Lipped | EPDM Black (FDA) DIN 32676 Lipped DN 10 EPDM Black (FDA) 34.00 1.34" 0.39"
    dimensional image
    View Page → Gasket (DN 10) | DIN 32676 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.DN.010 Dimensional Image Key:
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • ID (E) mm:   10
    • ID (E) in:   0.39"
    • ID mm:   10.00
    GDLPD2034019EK
    		Gasket (DN 15) | DIN 32676 Lipped | EPDM Black (FDA) DIN 32676 Lipped DN 15 EPDM Black (FDA) 34.00 1.34" 0.63"
    dimensional image
    View Page → Gasket (DN 15) | DIN 32676 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.DN.015 Dimensional Image Key:
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • ID (E) mm:   16
    • ID (E) in:   0.63"
    • ID mm:   16.00
    GDLPD2034023EK
    		Gasket (DN 20) | DIN 32676 Lipped | EPDM Black (FDA) DIN 32676 Lipped DN 20 EPDM Black (FDA) 34.00 1.34" 0.79"
    dimensional image
    View Page → Gasket (DN 20) | DIN 32676 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.DN.020 Dimensional Image Key:
    • Flange (A) mm:   34
    • Flange (A) in:   1.34"
    • ID (E) mm:   20
    • ID (E) in:   0.79"
    • ID mm:   20.00
    GDLPD2050029EK
    		Gasket (DN 25) | DIN 32676 Lipped | EPDM Black (FDA) DIN 32676 Lipped DN 25 EPDM Black (FDA) 50.50 1.99" 1.02"
    dimensional image
    View Page → Gasket (DN 25) | DIN 32676 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.DN.025 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   26
    • ID (E) in:   1.02"
    • ID mm:   26.00
    GDLPD2050035EK
    		Gasket (DN 32) | DIN 32676 Lipped | EPDM Black (FDA) DIN 32676 Lipped DN 32 EPDM Black (FDA) 50.50 1.99" 1.26"
    dimensional image
    View Page → Gasket (DN 32) | DIN 32676 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.DN.032 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   32
    • ID (E) in:   1.26"
    • ID mm:   32.00
    GDLPD2050041EK
    		Gasket (DN 40) | DIN 32676 Lipped | EPDM Black (FDA) DIN 32676 Lipped DN 40 EPDM Black (FDA) 50.50 1.99" 1.5"
    dimensional image
    View Page → Gasket (DN 40) | DIN 32676 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.DN.040 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   38
    • ID (E) in:   1.5"
    • ID mm:   38.00
