    BS Schedule 10


    BS Schedule 10
    Description

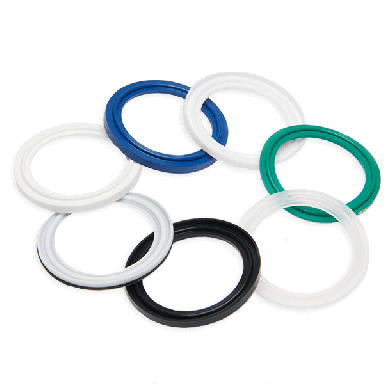

    Acl BS schedule 10 gaskets, sizes ½” – 12 5/8” ​, create an airtight fit between parts.
    Installation
    Ease of Installation​: outer lip wraps itself around the flange​.
    Specifications
    • BS / DIN / SMS / ISO – all standards are available
    • All gaskets are FDA tested. Some are USP VI <87> <88> ​
    Dimensional Image
    Features
    • Mesh gaskets inners are interchangeable (reducing end user cost)​
    • Full range of common materials and colours are available​
    • Gasket are FDA Tested (some are USP <87> <88>)​
    • Unlipped gaskets are available for all stock items​
    • Full range of temperatures and chemical compatibility can be covered​
    • Supplied in Black UV resistant bags​
    Materials
    • EPDM
    • Silicone
    • VITON®
    • EPDM USP Class VI
    • Silicone USP Class VI
    • PTFE Solid
    • PTFE Envelope
    Additional Material Codes

    Not finding what you're looking for? These material codes are available on request, contact us to inquire:

    Material Type Ordering Code
    EPDM BlueEU
    EPDM BlackEK
    Silicone WhiteSW
    Silicone TranslucentST
    FKM GreenVG
    FKM BlackFB
    PTFE SolidPS
    PTFE Envelope (Viton®)PE
    PTFE Envelope (EPDM)PZ
    NitrileNT
    Tri-Clamp Gaskets / BS Schedule 10
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets Select Series Tri-Clamps Select Series Tri-Clamps
    BS Schedule 10 BS Schedule 10
    BS 4825 BS 4825 BS Schedule 5 BS Schedule 5 BS Schedule 40 BS Schedule 40 DIN 32676 DIN 32676 ISO 1127 Standard ISO 1127 Standard ISO 2037 Series 1 & 2 ISO 2037 Series 1 & 2 Mini Series (Metric & Imperial) Mini Series (Metric & Imperial) Metal Detectable (EPDM Blue / EPDM Black) Metal Detectable (EPDM Blue / EPDM Black) ISO 1127 Variations ISO 1127 Variations
    Total: 30
    Industry
    PART#    		 Product
    Name    		 Standard Type Size (in) Size (DN) Size (mm) Material Grade Flange A (mm) Flange A (in) ID (mm) ID (in)
    GPLPB2050021EK
    		Gasket (1/2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 1/2" EPDM Black (FDA USP VI) 50.50 1.99" 0.67"
    dimensional image
    View Page → Gasket (1/2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   50.5
    • ID (E) mm:   17.1
    • ID (E) in:   0.67"
    • Actual ID (V) in:   0
    • ID mm:   17.10
    GPLPB2050026EK
    		Gasket (3/4") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 3/4" EPDM Black (FDA USP VI) 50.50 1.99" 0.88"
    dimensional image
    View Page → Gasket (3/4") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   50.5
    • ID (E) mm:   22.45
    • ID (E) in:   0.88"
    • Actual ID (V) in:   0
    • ID mm:   22.45
    GPLPB2050033EK
    		Gasket (1") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 1" EPDM Black (FDA USP VI) 50.50 1.99" 1.1"
    dimensional image
    View Page → Gasket (1") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   50.5
    • ID (E) mm:   27.86
    • ID (E) in:   1.1"
    • Actual ID (V) in:   0
    • ID mm:   27.86
    GPLPB2064042EK
    		Gasket (1 1/4") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 1 1/4" EPDM Black (FDA USP VI) 64.00 2.52" 1.44"
    dimensional image
    View Page → Gasket (1 1/4") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   64
    • ID (E) mm:   36.62
    • ID (E) in:   1.44"
    • Actual ID (V) in:   0
    • ID mm:   36.62
    GPLPB2064048EK
    		Gasket (1 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 1 1/2" EPDM Black (FDA USP VI) 64.00 2.52" 1.68"
    dimensional image
    View Page → Gasket (1 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   64
    • ID (E) mm:   42.72
    • ID (E) in:   1.68"
    • Actual ID (V) in:   0
    • ID mm:   42.72
    GPLPB2077060EK
    		Gasket (2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 2" EPDM Black (FDA USP VI) 77.50 3.05" 2.16"
    dimensional image
    View Page → Gasket (2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   77.5
    • ID (E) mm:   54.79
    • ID (E) in:   2.16"
    • Actual ID (V) in:   0
    • ID mm:   54.79
    GPLPB2091073EK
    		Gasket (2 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 2 1/2" EPDM Black (FDA USP VI) 91.00 3.58" 2.64"
    dimensional image
    View Page → Gasket (2 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   91
    • ID (E) mm:   66.93
    • ID (E) in:   2.64"
    • Actual ID (V) in:   0
    • ID mm:   66.93
    GPLPB2106089EK
    		Gasket (3") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 3" EPDM Black (FDA USP VI) 106.00 4.17" 3.26"
    dimensional image
    View Page → Gasket (3") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   106
    • ID (E) mm:   82.8
    • ID (E) in:   3.26"
    • Actual ID (V) in:   0
    • ID mm:   82.80
    GPLPB2119101EK
    		Gasket (3 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 3 1/2" EPDM Black (FDA USP VI) 119.00 4.69" 3.76"
    dimensional image
    View Page → Gasket (3 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   119
    • ID (E) mm:   95.5
    • ID (E) in:   3.76"
    • Actual ID (V) in:   0
    • ID mm:   95.50
    GPLPB2130114EK
    		Gasket (4") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 4" EPDM Black (FDA USP VI) 130.00 5.12" 4.26"
    dimensional image
    View Page → Gasket (4") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   130
    • ID (E) mm:   108.2
    • ID (E) in:   4.26"
    • Actual ID (V) in:   0
    • ID mm:   108.20
    GPLPB2155141EK
    		Gasket (5") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 5" EPDM Black (FDA USP VI) 155.00 6.1" 5.3"
    dimensional image
    View Page → Gasket (5") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   155
    • ID (E) mm:   134.5
    • ID (E) in:   5.3"
    • Actual ID (V) in:   0
    • ID mm:   134.50
    GPLPB2183168EK
    		Gasket (6") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 6" EPDM Black (FDA USP VI) 183.00 7.2" 6.36"
    dimensional image
    View Page → Gasket (6") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   183
    • ID (E) mm:   161.47
    • ID (E) in:   6.36"
    • Actual ID (V) in:   0
    • ID mm:   161.47
    GPLPB2233219EK
    		Gasket (8") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 8" EPDM Black (FDA USP VI) 233.50 9.19" 8.33"
    dimensional image
    View Page → Gasket (8") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   233.5
    • ID (E) mm:   211.56
    • ID (E) in:   8.33"
    • Actual ID (V) in:   0
    • ID mm:   211.56
    GPLPB2286273EK
    		Gasket (10") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 10" EPDM Black (FDA USP VI) 286.10 11.26" 10.42"
    dimensional image
    View Page → Gasket (10") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   286.1
    • ID (E) mm:   264.67
    • ID (E) in:   10.42"
    • Actual ID (V) in:   0
    • ID mm:   264.67
    GPLPB2338324EK
    		Gasket (12") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) BS Schedule 10 Lipped 12" EPDM Black (FDA USP VI) 338.00 13.31" 12.39"
    dimensional image
    View Page → Gasket (12") | BS Schedule 10 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   338
    • ID (E) mm:   314.71
    • ID (E) in:   12.39"
    • Actual ID (V) in:   0
    • ID mm:   314.71
    GDLPB2050021EK
    		Gasket (1/2") | BS Schedule 10 Lipped | EPDM Black (FDA) BS Schedule 10 Lipped 1/2" EPDM Black (FDA) 50.50 1.99" 0.67"
    dimensional image
    View Page → Gasket (1/2") | BS Schedule 10 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS40.0050 Legacy Part Number UK:  GK.BS10.0050.EK - 1/2" SCH 10 EPDM BLACK Legacy Part Number DK:  GKBS100050EK Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   17.1
    • ID (E) in:   0.62"
    • ID mm:   17.10
    GDLPB2050026EK
    		Gasket (3/4") | BS Schedule 10 Lipped | EPDM Black (FDA) BS Schedule 10 Lipped 3/4" EPDM Black (FDA) 50.50 1.99" 0.88"
    dimensional image
    View Page → Gasket (3/4") | BS Schedule 10 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS40.0075 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   22.45
    • ID (E) in:   0.82"
    • ID mm:   22.45
    GDLPB2050033EK
    		Gasket (1") | BS Schedule 10 Lipped | EPDM Black (FDA) BS Schedule 10 Lipped 1" EPDM Black (FDA) 50.50 1.99" 1.1"
    dimensional image
    View Page → Gasket (1") | BS Schedule 10 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS40.0100 Legacy Part Number UK:  GK.BS10.0100.EK - 1" SCH 10 EPDM BLACK Legacy Part Number DK:  GKBS100100EK Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   27.86
    • ID (E) in:   1.05"
    • ID mm:   27.86
    GDLPB2064042EK
    		Gasket (1 1/4") | BS Schedule 10 Lipped | EPDM Black (FDA) BS Schedule 10 Lipped 1 1/4" EPDM Black (FDA) 64.00 2.52" 1.44"
    dimensional image
    View Page → Gasket (1 1/4") | BS Schedule 10 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS40.0125 Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   36.62
    • ID (E) in:   1.38"
    • ID mm:   36.62
    GDLPB2064048EK
    		Gasket (1 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA) BS Schedule 10 Lipped 1 1/2" EPDM Black (FDA) 64.00 2.52" 1.68"
    dimensional image
    View Page → Gasket (1 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS40.0150 Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   42.72
    • ID (E) in:   1.61"
    • ID mm:   42.72
    GDLPB2077060EK
    		Gasket (2") | BS Schedule 10 Lipped | EPDM Black (FDA) BS Schedule 10 Lipped 2" EPDM Black (FDA) 77.50 3.05" 2.16"
    dimensional image
    View Page → Gasket (2") | BS Schedule 10 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS40.0200 Dimensional Image Key:
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • ID (E) mm:   54.79
    • ID (E) in:   2.07"
    • ID mm:   54.79
    GDLPB2091073EK
    		Gasket (2 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA) BS Schedule 10 Lipped 2 1/2" EPDM Black (FDA) 91.00 3.58" 2.64"
    dimensional image
    View Page → Gasket (2 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS40.0250 Dimensional Image Key:
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   66.93
    • ID (E) in:   2.47"
    • ID mm:   66.93
    GDLPB2106089EK
    		Gasket (3") | BS Schedule 10 Lipped | EPDM Black (FDA) BS Schedule 10 Lipped 3" EPDM Black (FDA) 106.00 4.17" 3.26"
    dimensional image
    View Page → Gasket (3") | BS Schedule 10 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS40.0300 Dimensional Image Key:
    • Flange (A) mm:   106
    • Flange (A) in:   4.17"
    • ID (E) mm:   82.8
    • ID (E) in:   3.07"
    • ID mm:   82.80
    GDLPB2119101EK
    		Gasket (3 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA) BS Schedule 10 Lipped 3 1/2" EPDM Black (FDA) 119.00 4.69" 3.76"
    dimensional image
    View Page → Gasket (3 1/2") | BS Schedule 10 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS40.0350 Dimensional Image Key:
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • ID (E) mm:   95.5
    • ID (E) in:   3.55"
    • ID mm:   95.50
