ISO 2037 Series 1 & 2

Description

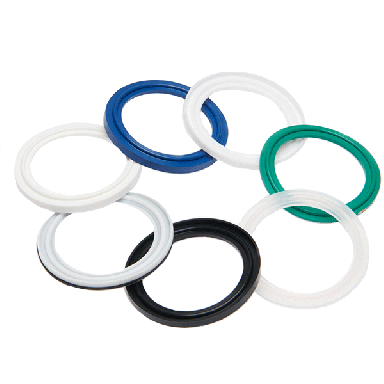

Acl ISO 2037 Gaskets, series 1 & 2, create an airtight fit between parts.

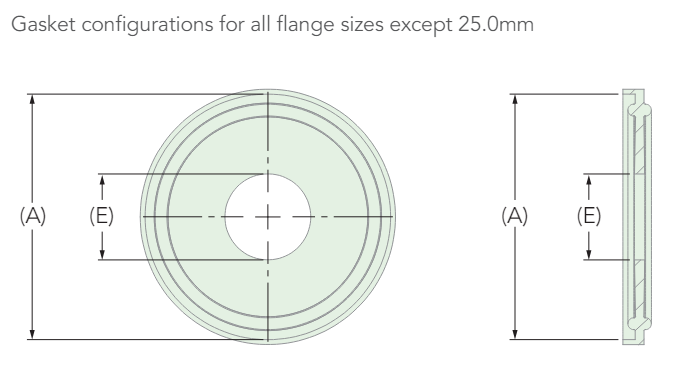

Dimensional Image

Features

BS / DIN / SMS / ISO – all standards are available
Mesh gaskets inners are interchangeable (reducing end user cost)
Full range of common materials and colours are available
Gasket are FDA Tested (some are USP <87> <88>)
Unlipped gaskets are available for all stock items
Full range of temperatures and chemical compatibility can be covered
All gaskets are FDA tested. Some are USP VI <87> <88>
Supplied in Black UV resistant bags

Additional Material Codes

Not finding what you're looking for? These material codes are available on request, contact us to inquire:

Material Type	Ordering Code
EPDM Blue	EU
EPDM Black	EK
Silicone White	SW
Silicone Translucent	ST
FKM Green	VG
FKM Black	FB
PTFE Solid	PS
PTFE Envelope (Viton®)	PE
PTFE Envelope (EPDM)	PZ
Nitrile	NT

Tri-Clamp Gaskets / ISO 2037 Series 1 & 2

Tri-Clamps

Safety Tri-Clamps

Select Series Tri-Clamps

Ferrules

Tri-Clamp Gaskets

ISO 2037 Series 1 & 2

Mini Series (Metric & Imperial)

Metal Detectable (EPDM Blue / EPDM Black)

ISO 1127 Variations

Industry PART#	Product Name	Standard	Size (mm)	Material Grade	Flange A (mm)	Flange A (in)	ID (in)
Pharmaceutical Data Center GPLPI2050195EK	Gasket (20mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 1	20	EPDM Black (FDA USP VI)	50.50	1.99"	0.69"
View Page → Gasket (20mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI) Legacy Part Number UK: GK.IS21.M020 Dimensional Image Key: Flange (A) mm: 50.5 ID (E) mm: 17.6 ID (E) in: 0.69" Actual ID (V) in: 0 ID mm: 17.60
Pharmaceutical Data Center GPLPI2050025EK	Gasket (25mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 1	25	EPDM Black (FDA USP VI)	50.50	1.99"	0.89"
View Page → Gasket (25mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI) Legacy Part Number UK: GK.IS21.M025 Dimensional Image Key: Flange (A) mm: 50.5 ID (E) mm: 22.6 ID (E) in: 0.89" Actual ID (V) in: 0 ID mm: 22.60
Pharmaceutical Data Center GPLPI2050038EK	Gasket (38mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 1	38	EPDM Black (FDA USP VI)	50.50	1.99"	1.4"
View Page → Gasket (38mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI) Legacy Part Number UK: 38mm LIPPED GASKET 50.5 FLANGE ISO2037 SERIES 1 EPDM BLACK Dimensional Image Key: Flange (A) mm: 50.5 ID (E) mm: 35.6 ID (E) in: 1.4" Actual ID (V) in: 0 ID mm: 35.60
Pharmaceutical Data Center GPLPI2050041EK	Gasket (40mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 1	40	EPDM Black (FDA USP VI)	50.50	1.99"	1.48"
View Page → Gasket (40mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI) Legacy Part Number UK: GK.IS21.M040 Dimensional Image Key: Flange (A) mm: 50.5 ID (E) mm: 37.6 ID (E) in: 1.48" Actual ID (V) in: 0 ID mm: 37.60
Pharmaceutical Data Center GPLPI2064051EK	Gasket (51mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 1	51	EPDM Black (FDA USP VI)	64.00	2.52"	1.91"
View Page → Gasket (51mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA USP VI) Legacy Part Number UK: 51mm LIPPED GASKET 64.0 FLANGE ISO2037 SERIES 1 EPDM BLACK Dimensional Image Key: Flange (A) mm: 64 ID (E) mm: 48.6 ID (E) in: 1.91" Actual ID (V) in: 0 ID mm: 48.60
Hygienic GDLPI2050195EK	Gasket (20mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA)	ISO 2037 - Series 1	20	EPDM Black (FDA)	50.50	1.99"	0.69"
View Page → Gasket (20mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 17.6 ID (E) in: 0.69" ID mm: 17.60
Hygienic GDLPI2050025EK	Gasket (25mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA)	ISO 2037 - Series 1	25	EPDM Black (FDA)	50.50	1.99"	0.89"
View Page → Gasket (25mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 22.6 ID (E) in: 0.89" ID mm: 22.60
Hygienic GDLPI2050038EK	Gasket (38mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA)	ISO 2037 - Series 1	38	EPDM Black (FDA)	50.50	1.99"	1.4"
View Page → Gasket (38mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 35.6 ID (E) in: 1.4" ID mm: 35.60
Hygienic GDLPI2050041EK	Gasket (40mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA)	ISO 2037 - Series 1	40	EPDM Black (FDA)	50.50	1.99"	1.48"
View Page → Gasket (40mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 37.6 ID (E) in: 1.48" ID mm: 37.60
Hygienic GDLPI2064051EK	Gasket (51mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA)	ISO 2037 - Series 1	51	EPDM Black (FDA)	64.00	2.52"	1.91"
View Page → Gasket (51mm) \| ISO 2037 - Series 1 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 64 Flange (A) in: 2.52" ID (E) mm: 48.6 ID (E) in: 1.91" ID mm: 48.60
Pharmaceutical Data Center GPLPI3050025EK	Gasket (25mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 2	25	EPDM Black (FDA USP VI)	50.50	1.99"	0.86"
View Page → Gasket (25mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI) Legacy Part Number UK: GK.IS22.M025 Dimensional Image Key: Flange (A) mm: 50.5 ID (E) mm: 21.8 ID (E) in: 0.86" Actual ID (V) in: 0 ID mm: 21.80
Pharmaceutical Data Center GPLPI3050038EK	Gasket (38mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 2	38	EPDM Black (FDA USP VI)	50.50	1.99"	1.37"
View Page → Gasket (38mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI) Legacy Part Number UK: GK.IS22.M038 Dimensional Image Key: Flange (A) mm: 50.5 ID (E) mm: 34.8 ID (E) in: 1.37" Actual ID (V) in: 0 ID mm: 34.80
Pharmaceutical Data Center GPLPI3050041EK	Gasket (40mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 2	40	EPDM Black (FDA USP VI)	50.50	1.99"	1.45"
View Page → Gasket (40mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI) Legacy Part Number UK: GK.IS22.M040 Dimensional Image Key: Flange (A) mm: 50.5 ID (E) mm: 36.8 ID (E) in: 1.45" Actual ID (V) in: 0 ID mm: 36.80
Pharmaceutical Data Center GPLPI3064051EK	Gasket (51mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 2	51	EPDM Black (FDA USP VI)	64.00	2.52"	1.88"
View Page → Gasket (51mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI) Legacy Part Number UK: GK.IS22.M051 Dimensional Image Key: Flange (A) mm: 64 ID (E) mm: 47.8 ID (E) in: 1.88" Actual ID (V) in: 0 ID mm: 47.80
Pharmaceutical Data Center GPLPI3077063EK	Gasket (63.5mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 2	63.5	EPDM Black (FDA USP VI)	77.50	3.05"	2.37"
View Page → Gasket (63.5mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI) Legacy Part Number UK: Joint Clamp EPDM - SMS 63 - 60.3 x 77.5 Dimensional Image Key: Flange (A) mm: 77.5 ID (E) mm: 60.3 ID (E) in: 2.37" Actual ID (V) in: 0 ID mm: 60.30
Pharmaceutical Data Center GPLPI3091070EK	Gasket (70mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 2	70	EPDM Black (FDA USP VI)	91.00	3.58"	2.63"
View Page → Gasket (70mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI) Legacy Part Number UK: GK.IS22.M070 Dimensional Image Key: Flange (A) mm: 91 ID (E) mm: 66.8 ID (E) in: 2.63" Actual ID (V) in: 0 ID mm: 66.80
Pharmaceutical Data Center GPLPI3119101EK	Gasket (101.6mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI)	ISO 2037 - Series 2	101.6	EPDM Black (FDA USP VI)	119.00	4.69"	3.84"
View Page → Gasket (101.6mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA USP VI) Legacy Part Number UK: Joint Clamp EPDM - SMS 101.6 - 97.6 x 119 Dimensional Image Key: Flange (A) mm: 119 ID (E) mm: 97.6 ID (E) in: 3.84" Actual ID (V) in: 0 ID mm: 97.60
Hygienic GDLPI3050025EK	Gasket (25mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA)	ISO 2037 - Series 2	25	EPDM Black (FDA)	50.50	1.99"	0.86"
View Page → Gasket (25mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 21.8 ID (E) in: 0.86" ID mm: 21.80
Hygienic GDLPI3050038EK	Gasket (38mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA)	ISO 2037 - Series 2	38	EPDM Black (FDA)	50.50	1.99"	1.37"
View Page → Gasket (38mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 34.8 ID (E) in: 1.37" ID mm: 34.80
Hygienic GDLPI3050041EK	Gasket (40mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA)	ISO 2037 - Series 2	40	EPDM Black (FDA)	50.50	1.99"	1.45"
View Page → Gasket (40mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 50.5 Flange (A) in: 1.99" ID (E) mm: 36.8 ID (E) in: 1.45" ID mm: 36.80
Hygienic GDLPI3064051EK	Gasket (51mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA)	ISO 2037 - Series 2	51	EPDM Black (FDA)	64.00	2.52"	1.88"
View Page → Gasket (51mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 64 Flange (A) in: 2.52" ID (E) mm: 47.8 ID (E) in: 1.88" ID mm: 47.80
Hygienic GDLPI3077063EK	Gasket (63.5mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA)	ISO 2037 - Series 2	63.5	EPDM Black (FDA)	77.50	3.05"	2.37"
View Page → Gasket (63.5mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 77.5 Flange (A) in: 3.05" ID (E) mm: 60.3 ID (E) in: 2.37" ID mm: 60.30
Hygienic GDLPI3091070EK	Gasket (70mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA)	ISO 2037 - Series 2	70	EPDM Black (FDA)	91.00	3.58"	2.63"
View Page → Gasket (70mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 91 Flange (A) in: 3.58" ID (E) mm: 66.8 ID (E) in: 2.63" ID mm: 66.80
Hygienic GDLPI3119101EK	Gasket (101.6mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA)	ISO 2037 - Series 2	101.6	EPDM Black (FDA)	119.00	4.69"	3.84"
View Page → Gasket (101.6mm) \| ISO 2037 - Series 2 \| EPDM Black (FDA) Dimensional Image Key: Flange (A) mm: 119 Flange (A) in: 4.69" ID (E) mm: 97.6 ID (E) in: 3.84" ID mm: 97.60
