    Description

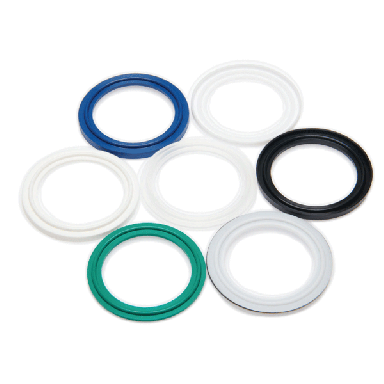

    Acl BS schedule 5 gaskets, sizes ½” – 12 5/8” ​, create an airtight fit between parts.
    Specifications
    • BS / DIN / SMS / ISO – all standards are available
    • All gaskets are FDA tested. Some are USP VI <87> <88> ​
    Dimensional Image
    Features
    • Mesh gaskets inners are interchangeable (reducing end user cost)​
    • Full range of common materials and colours are available​
    • Gasket are FDA Tested (some are USP <87> <88>)​
    • Unlipped gaskets are available for all stock items​
    • Full range of temperatures and chemical compatibility can be covered​
    • Supplied in Black UV resistant bags​
    Materials
    • EPDM
    • Silicone
    • VITON®
    • EPDM USP Class VI
    • Silicone USP Class VI
    • PTFE Solid
    • PTFE Envelope
    Additional Material Codes

    Not finding what you're looking for? These material codes are available on request, contact us to inquire:

    Material Type Ordering Code
    EPDM BlueEU
    EPDM BlackEK
    Silicone WhiteSW
    Silicone TranslucentST
    FKM GreenVG
    FKM BlackFB
    PTFE SolidPS
    PTFE Envelope (Viton®)PE
    PTFE Envelope (EPDM)PZ
    NitrileNT
    Tri-Clamp Gaskets / BS Schedule 5
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets Select Series Tri-Clamps Select Series Tri-Clamps
    BS Schedule 5 BS Schedule 5
    BS 4825 BS 4825 BS Schedule 10 BS Schedule 10 BS Schedule 40 BS Schedule 40 DIN 32676 DIN 32676 ISO 1127 Standard ISO 1127 Standard ISO 2037 Series 1 & 2 ISO 2037 Series 1 & 2 Mini Series (Metric & Imperial) Mini Series (Metric & Imperial) Metal Detectable (EPDM Blue / EPDM Black) Metal Detectable (EPDM Blue / EPDM Black) ISO 1127 Variations ISO 1127 Variations
    Total: 30
    Industry
    PART#    		 Product
    Name    		 Standard Type Size (in) Size (DN) Size (mm) Material Grade Flange A (mm) Flange A (in) ID (mm) ID (in)
    GPLPB1050021EK
    		Gasket (1/2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 1/2" EPDM Black (FDA USP VI) 50.50 1.99" 0.71"
    dimensional image
    View Page → Gasket (1/2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   50.5
    • ID (E) mm:   18.04
    • ID (E) in:   0.71"
    • Actual ID (V) in:   0
    • ID mm:   18.03
    GPLPB1064026EK
    		Gasket (3/4") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 3/4" EPDM Black (FDA USP VI) 50.50 1.99" 0.92"
    dimensional image
    View Page → Gasket (3/4") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   50.5
    • ID (E) mm:   23.38
    • ID (E) in:   0.92"
    • Actual ID (V) in:   0
    • ID mm:   23.37
    GPLPB1077033EK
    		Gasket (1") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 1" EPDM Black (FDA USP VI) 50.50 1.99" 1.19"
    dimensional image
    View Page → Gasket (1") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   50.5
    • ID (E) mm:   30.11
    • ID (E) in:   1.19"
    • Actual ID (V) in:   0
    • ID mm:   30.10
    GPLPB1064042EK
    		Gasket (1 1/4") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 1 1/4" EPDM Black (FDA USP VI) 64.00 2.52" 1.53"
    dimensional image
    View Page → Gasket (1 1/4") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   64
    • ID (E) mm:   38.87
    • ID (E) in:   1.53"
    • Actual ID (V) in:   0
    • ID mm:   38.86
    GPLPB1064048EK
    		Gasket (1 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 1 1/2" EPDM Black (FDA USP VI) 64.00 2.52" 1.77"
    dimensional image
    View Page → Gasket (1 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   64
    • ID (E) mm:   44.97
    • ID (E) in:   1.77"
    • Actual ID (V) in:   0
    • ID mm:   44.96
    GPLPB1091060EK
    		Gasket (2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 2" EPDM Black (FDA USP VI) 77.50 3.05" 2.24"
    dimensional image
    View Page → Gasket (2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   77.51
    • ID (E) mm:   57.03
    • ID (E) in:   2.25"
    • Actual ID (V) in:   0
    • ID mm:   57.02
    GPLPB1091073EK
    		Gasket (2 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 2 1/2" EPDM Black (FDA USP VI) 91.00 3.58" 2.71"
    dimensional image
    View Page → Gasket (2 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   91.01
    • ID (E) mm:   68.82
    • ID (E) in:   2.71"
    • Actual ID (V) in:   0
    • ID mm:   68.81
    GPLPB1106089EK
    		Gasket (3") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 3" EPDM Black (FDA USP VI) 106.00 4.17" 3.33"
    dimensional image
    View Page → Gasket (3") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   106.01
    • ID (E) mm:   84.69
    • ID (E) in:   3.33"
    • Actual ID (V) in:   0
    • ID mm:   84.68
    GPLPB1119101EK
    		Gasket (3 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 3 1/2" EPDM Black (FDA USP VI) 119.00 4.69" 3.83"
    dimensional image
    View Page → Gasket (3 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   119.01
    • ID (E) mm:   97.39
    • ID (E) in:   3.83"
    • Actual ID (V) in:   0
    • ID mm:   97.38
    GPLPB1130114EK
    		Gasket (4") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 4" EPDM Black (FDA USP VI) 130.00 5.12" 4.33"
    dimensional image
    View Page → Gasket (4") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   130.01
    • ID (E) mm:   110.09
    • ID (E) in:   4.33"
    • Actual ID (V) in:   0
    • ID mm:   110.08
    GPLPB1155141EK
    		Gasket (5") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 5" EPDM Black (FDA USP VI) 155.00 6.1" 5.34"
    dimensional image
    View Page → Gasket (5") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   155.01
    • ID (E) mm:   135.77
    • ID (E) in:   5.35"
    • Actual ID (V) in:   0
    • ID mm:   135.76
    GPLPB1183168EK
    		Gasket (6") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 6" EPDM Black (FDA USP VI) 183.00 7.2" 6.41"
    dimensional image
    View Page → Gasket (6") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   183.01
    • ID (E) mm:   162.75
    • ID (E) in:   6.41"
    • Actual ID (V) in:   0
    • ID mm:   162.74
    GPLPB1233219EK
    		Gasket (8") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 8" EPDM Black (FDA USP VI) 233.50 9.19" 8.41"
    dimensional image
    View Page → Gasket (8") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   233.51
    • ID (E) mm:   213.55
    • ID (E) in:   8.41"
    • Actual ID (V) in:   0
    • ID mm:   213.54
    GPLPB1286273EK
    		Gasket (10") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 10" EPDM Black (FDA USP VI) 286.10 11.26" 10.48"
    dimensional image
    View Page → Gasket (10") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   286.11
    • ID (E) mm:   266.26
    • ID (E) in:   10.48"
    • Actual ID (V) in:   0
    • ID mm:   266.25
    GPLPB1338324EK
    		Gasket (12") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) BS Schedule 5 Lipped 12" EPDM Black (FDA USP VI) 338.00 13.31" 12.44"
    dimensional image
    View Page → Gasket (12") | BS Schedule 5 Lipped | EPDM Black (FDA USP VI) Dimensional Image Key:
    • Flange (A) mm:   338.01
    • ID (E) mm:   315.94
    • ID (E) in:   12.44"
    • Actual ID (V) in:   0
    • ID mm:   315.93
    GDLPB1050021EK
    		Gasket (1/2") | BS Schedule 5 Lipped | EPDM Black (FDA) BS Schedule 5 Lipped 1/2" EPDM Black (FDA) 50.50 1.99" 0.71"
    dimensional image
    View Page → Gasket (1/2") | BS Schedule 5 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS05.0050 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   18.03
    • ID (E) in:   0.71"
    • ID mm:   18.03
    GDLPB1064026EK
    		Gasket (3/4") | BS Schedule 5 Lipped | EPDM Black (FDA) BS Schedule 5 Lipped 3/4" EPDM Black (FDA) 50.50 1.99" 0.92"
    dimensional image
    View Page → Gasket (3/4") | BS Schedule 5 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS05.0075 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   23.37
    • ID (E) in:   0.92"
    • ID mm:   23.37
    GDLPB1077033EK
    		Gasket (1") | BS Schedule 5 Lipped | EPDM Black (FDA) BS Schedule 5 Lipped 1" EPDM Black (FDA) 50.50 1.99" 1.19"
    dimensional image
    View Page → Gasket (1") | BS Schedule 5 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS05.0100 Legacy Part Number UK:  GK.BS05.0100.EK - 1" SCH 5 EPDM BLACK Legacy Part Number DK:  GKBS050100EK Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   1.99"
    • ID (E) mm:   30.1
    • ID (E) in:   1.19"
    • ID mm:   30.10
    GDLPB1064042EK
    		Gasket (1 1/4") | BS Schedule 5 Lipped | EPDM Black (FDA) BS Schedule 5 Lipped 1 1/4" EPDM Black (FDA) 64.00 2.52" 1.53"
    dimensional image
    View Page → Gasket (1 1/4") | BS Schedule 5 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS05.0125 Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   38.86
    • ID (E) in:   1.53"
    • ID mm:   38.86
    GDLPB1064048EK
    		Gasket (1 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA) BS Schedule 5 Lipped 1 1/2" EPDM Black (FDA) 64.00 2.52" 1.77"
    dimensional image
    View Page → Gasket (1 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS05.0150 Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2.52"
    • ID (E) mm:   44.96
    • ID (E) in:   1.77"
    • ID mm:   44.96
    GDLPB1091060EK
    		Gasket (2") | BS Schedule 5 Lipped | EPDM Black (FDA) BS Schedule 5 Lipped 2" EPDM Black (FDA) 77.50 3.05" 2.24"
    dimensional image
    View Page → Gasket (2") | BS Schedule 5 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS05.0200 Legacy Part Number UK:  GK.BS05.0200.EK - 2" SCH 5 EPDM BLACK Legacy Part Number DK:  GKBS050200EK Dimensional Image Key:
    • Flange (A) mm:   77.5
    • Flange (A) in:   3.05"
    • ID (E) mm:   57.02
    • ID (E) in:   2.24"
    • ID mm:   57.02
    GDLPB1091073EK
    		Gasket (2 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA) BS Schedule 5 Lipped 2 1/2" EPDM Black (FDA) 91.00 3.58" 2.71"
    dimensional image
    View Page → Gasket (2 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS05.0250 Dimensional Image Key:
    • Flange (A) mm:   91
    • Flange (A) in:   3.58"
    • ID (E) mm:   68.81
    • ID (E) in:   2.71"
    • ID mm:   68.81
    GDLPB1106089EK
    		Gasket (3") | BS Schedule 5 Lipped | EPDM Black (FDA) BS Schedule 5 Lipped 3" EPDM Black (FDA) 106.00 4.17" 3.33"
    dimensional image
    View Page → Gasket (3") | BS Schedule 5 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS05.0300 Legacy Part Number UK:  GK.BS05.0300.EK - 3" SCH 5 EPDM BLACK Legacy Part Number DK:  GKBS050300EK Dimensional Image Key:
    • Flange (A) mm:   106
    • Flange (A) in:   4.17"
    • ID (E) mm:   84.68
    • ID (E) in:   3.33"
    • ID mm:   84.68
    GDLPB1119101EK
    		Gasket (3 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA) BS Schedule 5 Lipped 3 1/2" EPDM Black (FDA) 119.00 4.69" 3.83"
    dimensional image
    View Page → Gasket (3 1/2") | BS Schedule 5 Lipped | EPDM Black (FDA) Legacy Part Number IE:  GK.BS05.0350 Dimensional Image Key:
    • Flange (A) mm:   119
    • Flange (A) in:   4.69"
    • ID (E) mm:   97.38
    • ID (E) in:   3.83"
    • ID mm:   97.38
