    IDF Nuts, Round


    IDF Nuts, Round
    Description

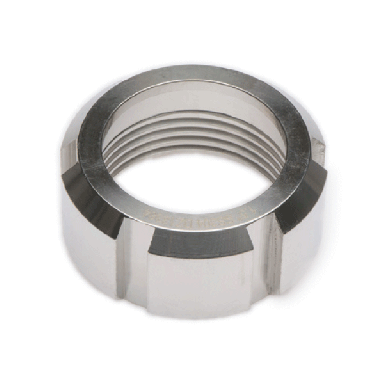

    ACL IDF Round Nuts are manufactured for use in hygienic process systems in the Food & Beverage and Dairy industries. Produced from 316L stainless steel with a high-quality surface finish, these nuts are designed for reliable, easy-to-clean IDF union connections and are fully compatible with the ACL IDF fitting range.

    Specifications
    • Surface finish: 0.8Ra µm minimum
    • Materials comply with AD2000 (PED) and ASME VIII

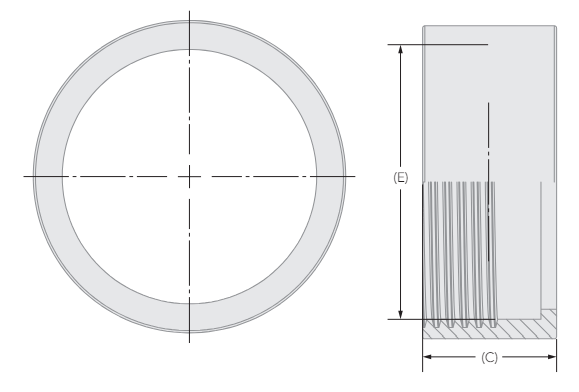

    Dimensional Image
    Features
    • Produced from 316L stainless steel
    • Round nut profile for easy manual assembly
    • High-quality surface finish for hygienic performance
    • Compatible with ACL IDF male and liner fittings
    • Full laser marking for traceability
    • Available in a full range of sizes
    Materials
    • Material: 316L Stainless Steel as standard
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    IDF Fittings / IDF Nuts, Round
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings
    IDF Nuts, Round IDF Nuts, Round
    IDF Male IDF Male IDF Liners IDF Liners IDF Union Gaskets IDF Union Gaskets
    Total: 6
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) ID (mm) ID (in) OD (mm) OD (in) Flange (mm) Flange (in) Neck (mm) Neck (in) Height (mm) Height (in) Face (mm) Face (in) Weight
    NUID000250124L
    		IDF Union (1") | Nut (Round) | 304 IDF Nut - Round 304 1.4301 S30400 1" 1.35" 25.4 1" 0.150000
    dimensional image
    View Page → IDF Union (1") | Nut (Round) | 304 Legacy Part Number IE:  OMID0100 Legacy Part Number UK:  OMID0100 Legacy Part Number DK:  OMID0100 Dimensional Image Key:
    • Length (C) mm:   30
    • ID (E) mm:   34.34
    • OD (H) mm:   25.4
    • ID (D) mm:   34.34
    • ID (E) in:   1.35"
    • Length (C) in:   1.18"
    • OD 2 (H) in:   1"
    • ID (D) in:   1.35"
    • ID mm:   34.34
    NUID000380124L
    		IDF Union (1 1/2") | Nut (Round) | 304 IDF Nut - Round 304 1.4301 S30400 1 1/2" 1.88" 38.1 1.5" 0.180000
    dimensional image
    View Page → IDF Union (1 1/2") | Nut (Round) | 304 Legacy Part Number IE:  OMID0150 Legacy Part Number UK:  OMID0150 Legacy Part Number DK:  OMID0150 Dimensional Image Key:
    • Length (C) mm:   30
    • ID (E) mm:   47.86
    • OD (H) mm:   38.1
    • ID (D) mm:   47.86
    • ID (E) in:   1.88"
    • Length (C) in:   1.18"
    • OD 2 (H) in:   1.5"
    • ID (D) in:   1.88"
    • ID mm:   47.86
    NUID000510124L
    		IDF Union (2") | Nut (Round) | 304 IDF Nut - Round 304 1.4301 S30400 2" 2.44" 50.8 2" 0.220000
    dimensional image
    View Page → IDF Union (2") | Nut (Round) | 304 Legacy Part Number IE:  OMID0200 Legacy Part Number UK:  OMID0200 Legacy Part Number DK:  OMID0200 Dimensional Image Key:
    • Length (C) mm:   30
    • ID (E) mm:   61.87
    • OD (H) mm:   50.8
    • ID (D) mm:   61.87
    • ID (E) in:   2.44"
    • Length (C) in:   1.18"
    • OD 2 (H) in:   2"
    • ID (D) in:   2.44"
    • ID mm:   61.87
    NUID000630164L
    		IDF Union (2 1/2") | Nut (Round) | 304 IDF Nut - Round 304 1.4301 S30400 2 1/2" 2.95" 63.5 2.5" 0.300000
    dimensional image
    View Page → IDF Union (2 1/2") | Nut (Round) | 304 Legacy Part Number IE:  OMID0250 Legacy Part Number UK:  OMID0250 Legacy Part Number DK:  OMID0250 Dimensional Image Key:
    • Length (C) mm:   30
    • ID (E) mm:   74.88
    • OD (H) mm:   63.5
    • ID (D) mm:   74.88
    • ID (E) in:   2.95"
    • Length (C) in:   1.18"
    • OD 2 (H) in:   2.5"
    • ID (D) in:   2.95"
    • ID mm:   74.88
    NUID000760204L
    		IDF Union (3") | Nut (Round) | 304 IDF Nut - Round 304 1.4301 S30400 3" 3.48" 76.2 3" 0.350000
    dimensional image
    View Page → IDF Union (3") | Nut (Round) | 304 Legacy Part Number IE:  OMID0300 Legacy Part Number UK:  OMID0300 Legacy Part Number DK:  OMID0300 Dimensional Image Key:
    • Length (C) mm:   30
    • ID (E) mm:   88.4
    • OD (H) mm:   76.2
    • ID (D) mm:   88.4
    • ID (E) in:   3.48"
    • Length (C) in:   1.18"
    • OD 2 (H) in:   3"
    • ID (D) in:   3.48"
    • ID mm:   88.4
    NUID001010204L
    		IDF Union (4") | Nut (Round) | 304 IDF Nut - Round 304 1.4301 S30400 4" 4.8" 102 4.02" 0.400000
    dimensional image
    View Page → IDF Union (4") | Nut (Round) | 304 Legacy Part Number IE:  OMID0400 Legacy Part Number UK:  OMID0400 Legacy Part Number DK:  OMID0400 Dimensional Image Key:
    • Length (C) mm:   35
    • ID (E) mm:   122
    • OD (H) mm:   102
    • ID (D) mm:   122
    • ID (E) in:   4.8"
    • Length (C) in:   1.38"
    • OD 2 (H) in:   4.02"
    • ID (D) in:   4.8"
    • ID mm:   122
