    Description

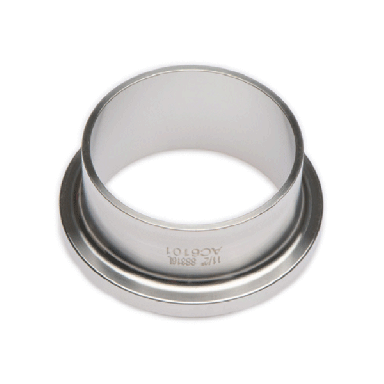

    ACL IDF Liners provide the weld end of the IDF union assembly and are produced from 316L stainless steel bar or tube stock for use in Food & Beverage and Dairy process systems. Surface finishes meet or exceed industry requirements for hygienic applications.

    Specifications
    • Surface finish: 0.8Ra µm minimum (internal)
    • Materials comply with AD2000 (PED) and ASME VIII

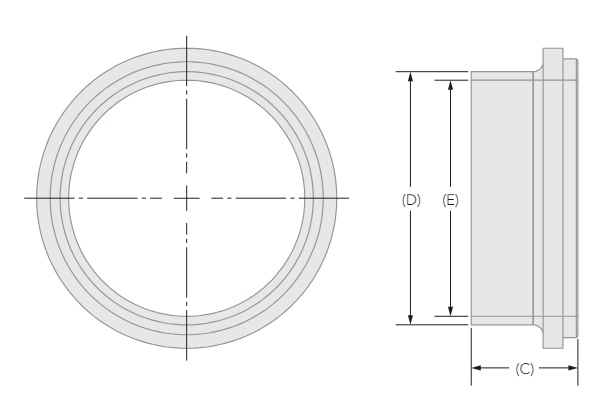

    Dimensional Image
    Features
    • Produced from 316L stainless steel
    • Internal surface finish to 0.8Ra µm or better
    • Flatness and circularity within tight tolerances
    • Full laser marking for traceability
    • Available in a full range of sizes
    Materials
    • Material: 316L Stainless Steel as standard
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    IDF Fittings / IDF Liners
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings
    IDF Liners IDF Liners
    IDF Male IDF Male IDF Nuts, Round IDF Nuts, Round IDF Union Gaskets IDF Union Gaskets
    Total: 6
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) ID (mm) ID (in) OD (mm) OD (in) Flange (mm) Flange (in) Neck (mm) Neck (in) Height (mm) Height (in) Face (mm) Face (in) Weight
    LIID000250126L
    		IDF Union (1") | Liner | 316L IDF Liner 316L 1.4404 S31603 1" 0.87" 25.4 1" 0.300000
    dimensional image
    View Page → IDF Union (1") | Liner | 316L Legacy Part Number IE:  LIID0100 Legacy Part Number UK:  LIID0100 Legacy Part Number DK:  LIID0100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   22.2
    • OD (D) mm:   25.4
    • OD (H) mm:   25.4
    • ID (D) mm:   22.2
    • ID (E) in:   0.87"
    • Length (C) in:   0.85"
    • OD (D) in:   1
    • OD 2 (H) in:   1"
    • ID (D) in:   0.87"
    • ID mm:   22.2
    LIID000380126L
    		IDF Union (1 1/2") | Liner | 316L IDF Liner 316L 1.4404 S31603 1 1/2" 1.37" 38.1 1.5" 0.065000
    dimensional image
    View Page → IDF Union (1 1/2") | Liner | 316L Legacy Part Number IE:  LIID0150 Legacy Part Number UK:  LIID0150 Legacy Part Number DK:  LIID0150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   34.9
    • OD (D) mm:   38.1
    • OD (H) mm:   38.1
    • ID (D) mm:   34.9
    • ID (E) in:   1.37"
    • Length (C) in:   0.85"
    • OD (D) in:   1.5
    • OD 2 (H) in:   1.5"
    • ID (D) in:   1.37"
    • ID mm:   34.9
    LIID000510126L
    		IDF Union (2") | Liner | 316L IDF Liner 316L 1.4404 S31603 2" 1.87" 50.8 2" 0.450000
    dimensional image
    View Page → IDF Union (2") | Liner | 316L Legacy Part Number IE:  LIID0200 Legacy Part Number UK:  LIID0200 Legacy Part Number DK:  LIID0200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   47.6
    • OD (D) mm:   50.8
    • OD (H) mm:   50.8
    • ID (D) mm:   47.6
    • ID (E) in:   1.87"
    • Length (C) in:   0.85"
    • OD (D) in:   2
    • OD 2 (H) in:   2"
    • ID (D) in:   1.87"
    • ID mm:   47.6
    LIID000630166L
    		IDF Union (2 1/2") | Liner | 316L IDF Liner 316L 1.4404 S31603 2 1/2" 2.37" 63.5 2.5" 0.600000
    dimensional image
    View Page → IDF Union (2 1/2") | Liner | 316L Legacy Part Number IE:  LIID0250 Legacy Part Number UK:  LIID0250 Legacy Part Number DK:  LIID0250 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   60.3
    • OD (D) mm:   63.5
    • OD (H) mm:   63.5
    • ID (D) mm:   60.3
    • ID (E) in:   2.37"
    • Length (C) in:   0.85"
    • OD (D) in:   2.5
    • OD 2 (H) in:   2.5"
    • ID (D) in:   2.37"
    • ID mm:   60.3
    LIID000760206L
    		IDF Union (3") | Liner | 316L IDF Liner 316L 1.4404 S31603 3" 2.87" 76.2 3" 0.750000
    dimensional image
    View Page → IDF Union (3") | Liner | 316L Legacy Part Number IE:  LIID0300 Legacy Part Number UK:  LIID0300 Legacy Part Number DK:  LIID0300 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   73
    • OD (D) mm:   76.2
    • OD (H) mm:   76.2
    • ID (D) mm:   73
    • ID (E) in:   2.87"
    • Length (C) in:   0.85"
    • OD (D) in:   3
    • OD 2 (H) in:   3"
    • ID (D) in:   2.87"
    • ID mm:   73
    LIID001010206L
    		IDF Union (4") | Liner | 316L IDF Liner 316L 1.4404 S31603 4" 3.84" 102 4.02" 0.900000
    dimensional image
    View Page → IDF Union (4") | Liner | 316L Legacy Part Number IE:  LIID0400 Legacy Part Number UK:  LIID0400 Legacy Part Number DK:  LIID0400 Dimensional Image Key:
    • Length (C) mm:   30
    • ID (E) mm:   97.6
    • OD (D) mm:   102
    • OD (H) mm:   102
    • ID (D) mm:   97.6
    • ID (E) in:   3.84"
    • Length (C) in:   1.18"
    • OD (D) in:   4.02
    • OD 2 (H) in:   4.02"
    • ID (D) in:   3.84"
    • ID mm:   97.6
