    Description

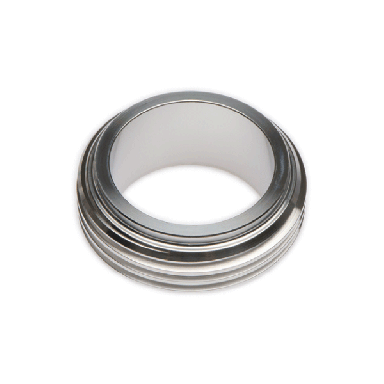

    ACL IDF Male fittings are manufactured for use in Food & Beverage and Dairy process systems. Produced from 316L stainless steel, these fittings provide the male threaded end of the IDF union assembly and are available in a full range of sizes from stock.

    Specifications
    • Surface finish: 0.8Ra µm minimum
    • Materials comply with AD2000 (PED) and ASME VIII

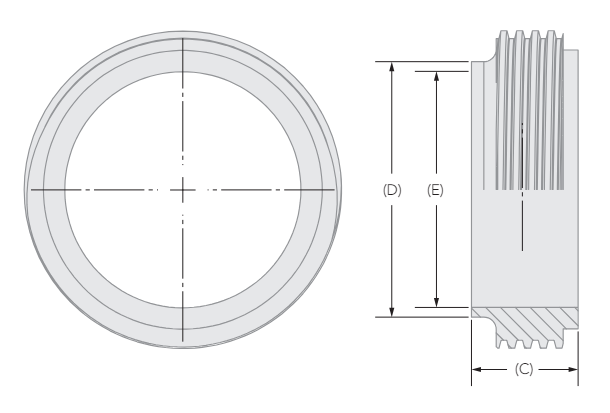

    Dimensional Image
    Features
    • Produced from 316L stainless steel
    • High-quality internal and external surface finish
    • Flatness of sealing face meets or exceeds guidelines
    • Full laser marking for traceability
    • Available in a full range of sizes
    Materials
    • Material: 316L Stainless Steel as standard
    Data Center
    ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.
    IDF Fittings / IDF Male
    Spanner Spanner DS Fittings DS Fittings SMS Fittings SMS Fittings DIN Fittings DIN Fittings RJT Fittings RJT Fittings IDF Fittings IDF Fittings
    IDF Male IDF Male
    IDF Liners IDF Liners IDF Nuts, Round IDF Nuts, Round IDF Union Gaskets IDF Union Gaskets
    Total: 6
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) ID (mm) ID (in) OD (mm) OD (in) Flange (mm) Flange (in) Neck (mm) Neck (in) Height (mm) Height (in) Face (mm) Face (in) Weight
    NIID000250126L
    		IDF Union (1") | Male Thread Liner / Nipple | 316 IDF Male Thread Liner / Nipple 316L 1.4401 S31600 1" 0.87" 25.4 1" 0.300000
    dimensional image
    View Page → IDF Union (1") | Male Thread Liner / Nipple | 316 Legacy Part Number IE:  NIID0100 Legacy Part Number UK:  NIID0100 Legacy Part Number DK:  NIID0100 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   22.2
    • OD (D) mm:   25.4
    • OD (H) mm:   25.4
    • ID (D) mm:   22.2
    • ID (E) in:   0.87"
    • Length (C) in:   0.85"
    • OD (D) in:   1
    • OD 2 (H) in:   1"
    • ID (D) in:   0.87"
    • ID mm:   22.2
    NIID000380126L
    		IDF Union (1 1/2") | Male Thread Liner / Nipple | 316 IDF Male Thread Liner / Nipple 316L 1.4401 S31600 1 1/2" 1.37" 38.1 1.5" 0.075000
    dimensional image
    View Page → IDF Union (1 1/2") | Male Thread Liner / Nipple | 316 Legacy Part Number IE:  NIID0150 Legacy Part Number UK:  NIID0150 Legacy Part Number DK:  NIID0150 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   34.9
    • OD (D) mm:   38.1
    • OD (H) mm:   38.1
    • ID (D) mm:   34.9
    • ID (E) in:   1.37"
    • Length (C) in:   0.85"
    • OD (D) in:   1.5
    • OD 2 (H) in:   1.5"
    • ID (D) in:   1.37"
    • ID mm:   34.9
    NIID000510126L
    		IDF Union (2") | Male Thread Liner / Nipple | 316 IDF Male Thread Liner / Nipple 316L 1.4401 S31600 2" 1.87" 50.8 2" 0.450000
    dimensional image
    View Page → IDF Union (2") | Male Thread Liner / Nipple | 316 Legacy Part Number IE:  NIID0200 Legacy Part Number UK:  NIID0200 Legacy Part Number DK:  NIID0200 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   47.6
    • OD (D) mm:   50.8
    • OD (H) mm:   50.8
    • ID (D) mm:   47.6
    • ID (E) in:   1.87"
    • Length (C) in:   0.85"
    • OD (D) in:   2
    • OD 2 (H) in:   2"
    • ID (D) in:   1.87"
    • ID mm:   47.6
    NIID000630166L
    		IDF Union (2 1/2") | Male Thread Liner / Nipple | 316 IDF Male Thread Liner / Nipple 316L 1.4401 S31600 2 1/2" 2.37" 63.5 2.5" 0.600000
    dimensional image
    View Page → IDF Union (2 1/2") | Male Thread Liner / Nipple | 316 Legacy Part Number IE:  NIID0250 Legacy Part Number UK:  NIID0250 Legacy Part Number DK:  NIID0250 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   60.3
    • OD (D) mm:   63.5
    • OD (H) mm:   63.5
    • ID (D) mm:   60.3
    • ID (E) in:   2.37"
    • Length (C) in:   0.85"
    • OD (D) in:   2.5
    • OD 2 (H) in:   2.5"
    • ID (D) in:   2.37"
    • ID mm:   60.3
    NIID000760206L
    		IDF Union (3") | Male Thread Liner / Nipple | 316 IDF Male Thread Liner / Nipple 316L 1.4401 S31600 3" 2.87" 76.2 3" 0.750000
    dimensional image
    View Page → IDF Union (3") | Male Thread Liner / Nipple | 316 Legacy Part Number IE:  NIID0300 Legacy Part Number UK:  NIID0300 Legacy Part Number DK:  NIID0300 Dimensional Image Key:
    • Length (C) mm:   21.5
    • ID (E) mm:   73
    • OD (D) mm:   76.2
    • OD (H) mm:   76.2
    • ID (D) mm:   73
    • ID (E) in:   2.87"
    • Length (C) in:   0.85"
    • OD (D) in:   3
    • OD 2 (H) in:   3"
    • ID (D) in:   2.87"
    • ID mm:   73
    NIID001010206L
    		IDF Union (4") | Male Thread Liner / Nipple | 316 IDF Male Thread Liner / Nipple 316L 1.4401 S31600 4" 3.84" 102 4.02" 0.900000
    dimensional image
    View Page → IDF Union (4") | Male Thread Liner / Nipple | 316 Legacy Part Number IE:  NIID0400 Legacy Part Number UK:  NIID0400 Legacy Part Number DK:  NIID0400 Dimensional Image Key:
    • Length (C) mm:   30
    • ID (E) mm:   97.6
    • OD (D) mm:   102
    • OD (H) mm:   102
    • ID (D) mm:   97.6
    • ID (E) in:   3.84"
    • Length (C) in:   1.18"
    • OD (D) in:   4.02
    • OD 2 (H) in:   4.02"
    • ID (D) in:   3.84"
    • ID mm:   97.6
