Type Safety SH Shrouded (Single-Bolt | Double-Hinge) 316L

Description

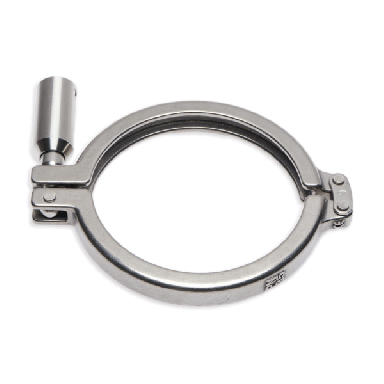

SH safety clamp 316 shrouded, SAFS type, for safety critical applications where removal is limited to a socket tool. Corrosion resistant, high quality surface finish (for cleanability). Sizes ½" to 12 5/8".

Specifications

Material: 316 / 1.4401
BPE / 3A sanitary unions

Dimensional Image

Features

Application: Pharmaceutical
Hinge Layout: Safety Gate, Eye Bolt & Nut
Supplied Assembled
Design optimised for one-handed assembly.

Industry PART#	Product Name	Type	Size Imperial	Size Metric	Size ISO	Flange	Nut Type	Material	Pressure Rating	Length	Closing mechanism	Add To Cart LIST PRICE
Pharmaceutical SHSS0002506	Tri-Clamp (1/4" - 3/4") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	1/4" - 3/4"	DN 6-8(DIN)	DN 8-10(ISO)	25.4(mm)/1"(in)	Shroud	316L	50(MAWP)/725.19(PSI)	75(mm)/2.95"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering

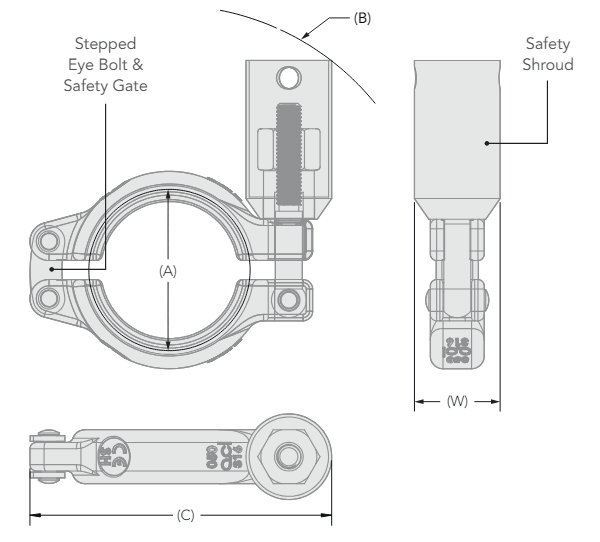

View Page Tri-Clamp (1/4" - 3/4") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0050 Legacy Part Number UK: CL.SAFS.0050 - 1/2" - 3/4" SH SAFETY CLAMP Legacy Part Number DK: CLSAFS0050 Dimensional Image Key: • Flange (A) mm: 25.4 • Flange (A) in: 1" • B in: 2.48" • B mm: 63 • C mm: 75 • C in: 2.95" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0003406	Tri-Clamp (DN 10) \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	DN10	DN 10-15-20(DIN)		34(mm)/1.34"(in)	Shroud	316L	50(MAWP)/725.19(PSI)	75(mm)/2.95"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (DN 10) \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.D010 Legacy Part Number UK: CL.SAFS.D010 - DIN 10/15/20 SH SAFETY Legacy Part Number DK: CLSAFSD010 Dimensional Image Key: • Flange (A) mm: 34 • Flange (A) in: 1 3/8" • B in: 2.36" • B mm: 60 • C mm: 75 • C in: 2.95" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0005006	Tri-Clamp (1" - 1 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	1" - 1 1/2"	DN 25-40(DIN)	DN 15-20-25(ISO)	50.5(mm)/1.99"(in)	Shroud	316L	50(MAWP)/725.19(PSI)	102(mm)/4.02"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (1" - 1 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0100 Legacy Part Number UK: CL.SAFS.0100 - 1" - 1 1/2" SH SAFETY CLAMP Legacy Part Number DK: CLSAFS0100 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 3.03" • B mm: 77 • C mm: 102 • C in: 4.02" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0006406	Tri-Clamp (2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	2"	DN 50(DIN)	DN 32-40(ISO)	64(mm)/2.52"(in)	Shroud	316L	50(MAWP)/725.19(PSI)	123(mm)/4.84"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0200 Legacy Part Number UK: CL.SAFS.0200 - 2" SH SAFETY CLAMP 316 with Legacy Part Number DK: CLSAFS0200 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 3.66" • B mm: 93 • C mm: 123 • C in: 4.84" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0007706	Tri-Clamp (2 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	2 1/2"		DN 50(ISO)	77.5(mm)/3.05"(in)	Shroud	316L	50(MAWP)/725.19(PSI)	140(mm)/5.51"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (2 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0250 Legacy Part Number UK: CL.SAFS.0250 - 2 1/2" SH SAFETY CLAMP 316 Legacy Part Number DK: CLSAFS0250 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 3.94" • B mm: 100 • C mm: 140 • C in: 5.51" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0009106	Tri-Clamp (3") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	3"	DN 65(DIN)	DN 65(ISO)	91(mm)/3.58"(in)	Shroud	316L	40(MAWP)/580.15(PSI)	150(mm)/5.91"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (3") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0300 Legacy Part Number UK: CL.SAFS.0300 - 3" SH SAFETY CLAMP 316 with Legacy Part Number DK: CLSAFS0300 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3 1/2" • B in: 4.13" • B mm: 105 • C mm: 150 • C in: 5.91" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0010606	Tri-Clamp (3 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	3 1/2"	DN 80(DIN)	DN 80(ISO)	106(mm)/4.17"(in)	Shroud	316L	40(MAWP)/580.15(PSI)	165(mm)/6.5"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (3 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0350 Legacy Part Number UK: CL.SAFS.0350 - 3 1/2" SH SAFETY CLAMP 316 Legacy Part Number DK: CLSAFS0350 Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4 1/8" • B in: 4.33" • B mm: 110 • C mm: 165 • C in: 6.50" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0011906	Tri-Clamp (4") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	4"	DN 100(DIN)		119(mm)/4.69"(in)	Shroud	316L	35(MAWP)/507.63(PSI)	185(mm)/7.28"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (4") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0400 Legacy Part Number UK: CL.SAFS.0400 - 4" SH SAFETY CLAMP 316 with Legacy Part Number DK: CLSAFS0400 Dimensional Image Key: • Flange (A) mm: 119 • Flange (A) in: 4 3/4" • B in: 4.69" • B mm: 119 • C mm: 185 • C in: 7.28" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0013006	Tri-Clamp (4 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	4 1/2"		DN 100(ISO)	130(mm)/5.12"(in)	Shroud	316L	30(MAWP)/435.11(PSI)	191(mm)/7.52"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (4 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0450 Legacy Part Number UK: CL.SAFS.0450 - 4 1/2" SH SAFETY CLAMP 316 Legacy Part Number DK: CLSAFS0450 Dimensional Image Key: • Flange (A) mm: 130 • Flange (A) in: 5 1/8" • B in: 4.69" • B mm: 119 • C mm: 191 • C in: 7.52" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0014406	Tri-Clamp (5") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	5"			144.4(mm)/5.69"(in)	Shroud	316L	30(MAWP)/435.11(PSI)	215(mm)/8.46"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (5") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0500 Legacy Part Number UK: CL.SAFS.0500 - 5" SH SAFETY CLAMP 316 with Legacy Part Number DK: CLSAFS0500 Dimensional Image Key: • Flange (A) mm: 144.4 • Flange (A) in: 5 5/8" • B in: 5.16" • B mm: 131 • C mm: 215 • C in: 8.46" • W mm: 27 • W in: 1.06"
Pharmaceutical SHSS0015506	Tri-Clamp (5 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	5 1/2"	DN 125(DIN)	DN 125(ISO)	155(mm)/6.1"(in)	Shroud	316L	30(MAWP)/435.11(PSI)	265(mm)/10.43"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (5 1/2") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0550 Legacy Part Number UK: CL.SAFS.0550 - 5 1/2" SH SAFETY CLAMP 316 Legacy Part Number DK: CLSAFS0550 Dimensional Image Key: • Flange (A) mm: 155 • Flange (A) in: 6 1/8" • B in: 5.83" • B mm: 148 • C mm: 265 • C in: 10.43" • W mm: 33 • W in: 1.30"
Pharmaceutical SHSS0016706	Tri-Clamp (6") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud	SH	6"			167(mm)/6.57"(in)	Shroud	316L	30(MAWP)/435.11(PSI)	277(mm)/10.91"(in)	2-Pin	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (6") \| Type SH (Safety) \| Stainless Steel 316L \| Shroud Legacy Part Number IE: CL.SAFS.0600 Legacy Part Number UK: CL.SAFS.0600 - 6" SH SAFETY CLAMP 316 with Legacy Part Number DK: CLSAFS0600 Dimensional Image Key: • Flange (A) mm: 167 • Flange (A) in: 6 5/8" • B in: 5.98" • B mm: 152 • C mm: 277 • C in: 10.91" • W mm: 33 • W in: 1.30"
