    3 Segment Safety 304


    3 Segment Safety 304
    Description

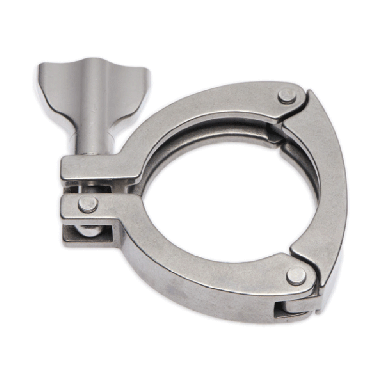

    Acl three segment SAF-type 304 safety clamp for safety critical applications in tight spaces​. Cold formed rivet, single bolt tri clover, tri clamp, barrel polished. Corrosion resistant, high quality surface finish (for cleanability)​. Sizes ½" to 12 5/8"​.
    Specifications
    • Material: 304 / 1.4308
    • BPE / 3A sanitary unions​
    Dimensional Image
    Features
    • Application: Hygienic
    • Hinge Layout: Interlocking Rivets
    • Supplied Assembled
    • Design optimised for one-handed assembly.​
    Safety Tri-Clamps / 3 Segment Safety 304
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets Select Series Tri-Clamps Select Series Tri-Clamps
    3 Segment Safety 304 3 Segment Safety 304
    Type Safety SH (Single-Bolt | Double-Hinge) 316 Type Safety SH (Single-Bolt | Double-Hinge) 316 Type Safety SH (Single-Bolt | Double-Hinge) 316 Type Safety SH (Single-Bolt | Double-Hinge) 316 Type Safety SH Shrouded (Single-Bolt | Double-Hinge) 316 Type Safety SH Shrouded (Single-Bolt | Double-Hinge) 316 Type Safety SH Lockout (Single-Bolt | Double-Hinge) 316 Type Safety SH Lockout (Single-Bolt | Double-Hinge) 316 Type Safety SH (Double Bolt) 316 Type Safety SH (Double Bolt) 316
    Total: 5
    Industry
    PART#    		 Product
    Name    		 Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) Size (ISO) Closing Mechanism Nut Type Safety Pressure Rating (bar) Pressure Rating (psi) Flange A (mm) Flange A (in) OD (mm) OD (in) Width (mm) Width (in) Height (mm) Height (in) Weight
    S3SF0005004
    		Tri-Clamp (1" - 1 1/2") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut 3 SEGMENT 304 1.4308 J92600 1" - 1 1/2" DN 25-40 DN 15-20-25 3-Pin Interlocking Wingnut Yes 21 304.58 50.5 1.99" 19 0.75" 0.364000
    dimensional image

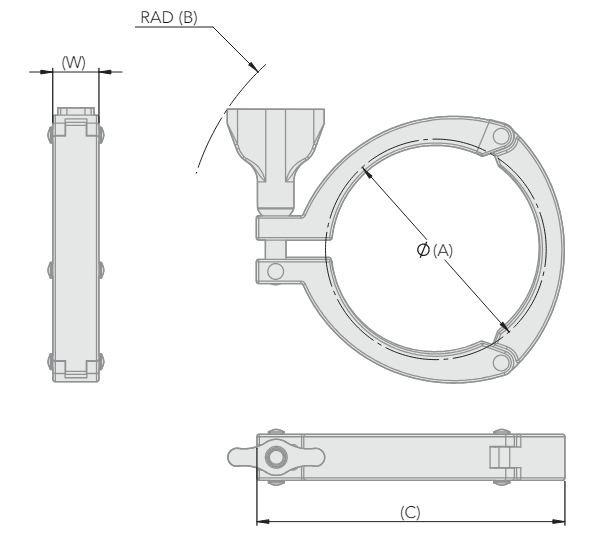

    View Page → Tri-Clamp (1" - 1 1/2") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut Legacy Part Number IE:  CL.SAF3.0100 Legacy Part Number UK:  CL.SAF3.0100 - 1 1/2" 3 SEG SAFETY CLAMP Legacy Part Number DK:  CLSAF30100 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • Flange (A) in:   2"
    • B in:   3.00"
    • B mm:   76.2
    • C mm:   81.7
    • C in:   3.22"
    • W mm:   19
    • W in:   0.75"
    S3SF0006404
    		Tri-Clamp (2") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut 3 SEGMENT 304 1.4308 J92600 2" DN 50 DN 32-40 3-Pin Interlocking Wingnut Yes 19 275.57 64 2.52" 19 0.75" 0.408000
    dimensional image
    View Page → Tri-Clamp (2") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut Legacy Part Number IE:  CL.SAF3.0200 Legacy Part Number UK:  CL.SAF3.0200 - 2" 3 SEG SAFETY CLAMP 304 Legacy Part Number DK:  CLSAF30200 Dimensional Image Key:
    • Flange (A) mm:   64
    • Flange (A) in:   2 1/2"
    • B in:   3.23"
    • B mm:   82
    • C mm:   93.5
    • C in:   3.68"
    • W mm:   19
    • W in:   0.75"
    S3SF0007704
    		Tri-Clamp (2 1/2") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut 3 SEGMENT 304 1.4308 J92600 2 1/2" DN 50 3-Pin Interlocking Wingnut Yes 15 217.56 77.5 3.05" 19.5 0.77" 0.482000
    dimensional image
    View Page → Tri-Clamp (2 1/2") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut Legacy Part Number IE:  CL.SAF3.0250 Legacy Part Number UK:  CL.SAF3.0250 - 2 1/2" 3 SEG SAFETY CLAMP Legacy Part Number DK:  CLSAF30250 Dimensional Image Key:
    • Flange (A) mm:   77.5
    • Flange (A) in:   3"
    • B in:   3.43"
    • B mm:   87
    • C mm:   109
    • C in:   4.29"
    • W mm:   19.5
    • W in:   0.77"
    S3SF0009104
    		Tri-Clamp (3") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut 3 SEGMENT 304 1.4308 J92600 3" DN 65 DN 65 3-Pin Interlocking Wingnut Yes 12 174.05 91 3.58" 19.5 0.77" 0.600000
    dimensional image
    View Page → Tri-Clamp (3") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut Legacy Part Number IE:  CL.SAF3.0300 Legacy Part Number UK:  CL.SAF3.0300 - 3" 3 SEG SAFETY CLAMP 304 Legacy Part Number DK:  CLSAF30300 Dimensional Image Key:
    • Flange (A) mm:   91
    • Flange (A) in:   3 1/2"
    • B in:   3.78"
    • B mm:   96
    • C mm:   126.5
    • C in:   4.98"
    • W mm:   19.5
    • W in:   0.77"
    S3SF0011904
    		Tri-Clamp (4") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut 3 SEGMENT 304 1.4308 J92600 4" DN 100 3-Pin Interlocking Wingnut Yes 12 174.05 119 4.69" 19.5 0.77" 0.738000
    dimensional image
    View Page → Tri-Clamp (4") | Type 3 SEGMENT (Safety) | Stainless Steel 304 | Wingnut Legacy Part Number IE:  CL.SAF3.0400 Legacy Part Number UK:  CL.SAF3.0400 - 4" 3 SEG SAFETY CLAMP 304 Legacy Part Number DK:  CLSAF30400 Dimensional Image Key:
    • Flange (A) mm:   119
    • Flange (A) in:   4 3/4"
    • B in:   4.88"
    • B mm:   124
    • C mm:   150
    • C in:   5.91"
    • W mm:   19.5
    • W in:   0.77"
