    Type Safety SH Lockout (Single-Bolt | Double-Hinge) 316


    Type Safety SH Lockout (Single-Bolt | Double-Hinge) 316
    Description

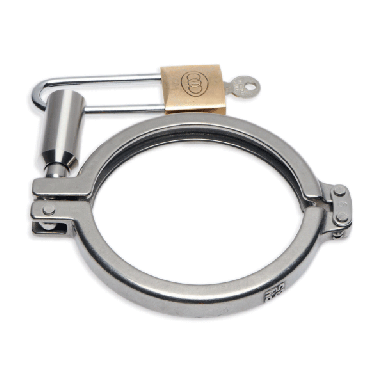

    SH safety clamp, 316 lockout, with eyebolt and padlock, for safety critical applications where removal is prevented by LOTO​. Corrosion resistant, high quality surface finish (for cleanability)​. Sizes ½" to 12 5/8"​.
    Specifications
    • Material: 316 / 1.4401
    • BPE / 3A sanitary unions​

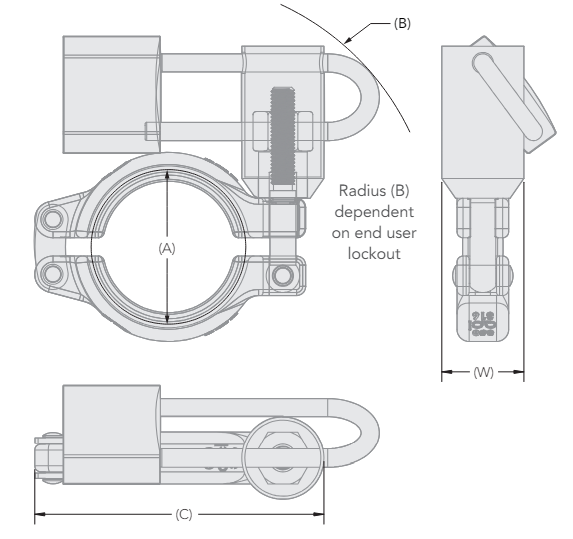

    Dimensional Image
    Features
    • Application: Pharmaceutical
    • Hinge Layout: Safety Gate, Eye Bolt & Padlock
    Safety Tri-Clamps / Type Safety SH Lockout (Single-Bolt | Double-Hinge) 316
    Tri-Clamps Tri-Clamps Safety Tri-Clamps Safety Tri-Clamps Ferrules Ferrules Tri-Clamp Gaskets Tri-Clamp Gaskets
    Type Safety SH Lockout (Single-Bolt | Double-Hinge) 316 Type Safety SH Lockout (Single-Bolt | Double-Hinge) 316
    Type Safety SH (Single-Bolt | Double-Hinge) 316 Type Safety SH (Single-Bolt | Double-Hinge) 316 Type Safety SH (Single-Bolt | Double-Hinge) 316 Type Safety SH (Single-Bolt | Double-Hinge) 316 Type Safety SH Shrouded (Single-Bolt | Double-Hinge) 316 Type Safety SH Shrouded (Single-Bolt | Double-Hinge) 316 Type Safety SH (Double Bolt) 316 Type Safety SH (Double Bolt) 316 3 Segment Safety 304 3 Segment Safety 304
    Total: 19
    Industry
    PART#    		 Product
    Name    		 Type Material Grade EN Standard ASTM Standard Size (in) Size (DIN) Size (ISO) Closing Mechanism Nut Type Safety Pressure Rating (bar) Pressure Rating (psi) Flange A (mm) Flange A (in) OD (mm) OD (in) Width (mm) Width (in) Height (mm) Height (in) Weight
    SHSL0002506
    		Tri-Clamp (1/4" - 3/4") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 1/4" - 3/4" DN 6-8 DN 8-10 2-Pin Eye Bolt & Padlock Yes 50 725.19 25.4 1" 27 1.06" 0.150000
    dimensional image
    View Page → Tri-Clamp (1/4" - 3/4") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0050 Legacy Part Number UK:  CL.SAFL.0050 Dimensional Image Key:
    • Flange (A) mm:   25.4
    • B mm:   63.00
    • C mm:   75.00
    • W mm:   27
    SHSL0003406
    		Tri-Clamp (DN10) | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 DN10 DN 10-15-20 2-Pin Eye Bolt & Padlock Yes 50 725.19 34 1.34" 27 1.06" 0.170000
    dimensional image
    View Page → Tri-Clamp (DN10) | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.D010 Dimensional Image Key:
    • Flange (A) mm:   34
    • B mm:   65.00
    • C mm:   83.00
    • W mm:   27
    SHSL0005006
    		Tri-Clamp (1" - 1 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 1" - 1 1/2" DN 25-40 DN 15-20-25 2-Pin Eye Bolt & Padlock Yes 50 725.19 50.5 1.99" 27 1.06" 0.250000
    dimensional image
    View Page → Tri-Clamp (1" - 1 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0100 Legacy Part Number UK:  CL.SAFL.0100 Dimensional Image Key:
    • Flange (A) mm:   50.5
    • B mm:   77.00
    • C mm:   102.00
    • W mm:   27
    SHSL0006406
    		Tri-Clamp (2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 2" DN 50 DN 32-40 2-Pin Eye Bolt & Padlock Yes 50 725.19 64 2.52" 27 1.06" 0.330000
    dimensional image
    View Page → Tri-Clamp (2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0200 Legacy Part Number UK:  CL.SAFL.0200 Dimensional Image Key:
    • Flange (A) mm:   64
    • B mm:   93.00
    • C mm:   123.00
    • W mm:   27
    SHSL0007706
    		Tri-Clamp (2 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 2 1/2" DN 50 2-Pin Eye Bolt & Padlock Yes 50 725.19 77.5 3.05" 27 1.06" 0.362000
    dimensional image
    View Page → Tri-Clamp (2 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0250 Dimensional Image Key:
    • Flange (A) mm:   77.5
    • B mm:   100.00
    • C mm:   140.00
    • W mm:   27
    SHSL0009106
    		Tri-Clamp (3") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 3" DN 65 DN 65 2-Pin Eye Bolt & Padlock Yes 40 580.15 91 3.58" 27 1.06" 0.402000
    dimensional image
    View Page → Tri-Clamp (3") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0300 Dimensional Image Key:
    • Flange (A) mm:   91
    • B mm:   105.00
    • C mm:   150.00
    • W mm:   27
    SHSL0010606
    		Tri-Clamp (3 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 3 1/2" DN 80 DN 80 2-Pin Eye Bolt & Padlock Yes 40 580.15 106 4.17" 27 1.06" 0.428000
    dimensional image
    View Page → Tri-Clamp (3 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0350 Dimensional Image Key:
    • Flange (A) mm:   106
    • B mm:   110.00
    • C mm:   165.00
    • W mm:   27
    SHSL0011906
    		Tri-Clamp (4") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 4" DN 100 2-Pin Eye Bolt & Padlock Yes 35 507.63 119 4.69" 27 1.06" 0.530000
    dimensional image
    View Page → Tri-Clamp (4") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0400 Legacy Part Number UK:  CL.SAFL.0400 Dimensional Image Key:
    • Flange (A) mm:   119
    • B mm:   119.00
    • C mm:   185.00
    • W mm:   27
    SHSL0013006
    		Tri-Clamp (4 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 4 1/2" DN 100 2-Pin Eye Bolt & Padlock Yes 30 435.11 130 5.12" 27 1.06" 0.568000
    dimensional image
    View Page → Tri-Clamp (4 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0450 Dimensional Image Key:
    • Flange (A) mm:   130
    • B mm:   119.00
    • C mm:   191.00
    • W mm:   27
    SHSL0014406
    		Tri-Clamp (5") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 5" 2-Pin Eye Bolt & Padlock Yes 30 435.11 144 5.67" 27 1.06" 0.734000
    dimensional image
    View Page → Tri-Clamp (5") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0500 Dimensional Image Key:
    • Flange (A) mm:   144
    • B mm:   131.00
    • C mm:   215.00
    • W mm:   27
    SHSL0015506
    		Tri-Clamp (5 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 5 1/2" DN 125 DN 125 2-Pin Eye Bolt & Padlock Yes 30 435.11 155 6.1" 33 1.3" 1.378000
    dimensional image
    View Page → Tri-Clamp (5 1/2") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0550 Dimensional Image Key:
    • Flange (A) mm:   155
    • B mm:   148.00
    • C mm:   265.00
    • W mm:   33
    SHSL0016706
    		Tri-Clamp (6") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 6" 2-Pin Eye Bolt & Padlock Yes 30 435.11 167 6.57" 33 1.3" 1.374000
    dimensional image
    View Page → Tri-Clamp (6") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0600 Legacy Part Number UK:  CL.SAFL.0600 Dimensional Image Key:
    • Flange (A) mm:   167
    • B mm:   152.00
    • C mm:   277.00
    • W mm:   33
    SHSL0018306
    		Tri-Clamp (6 5/8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 6 5/8" DN 150 DN 150 2-Pin Eye Bolt & Padlock Yes 25 362.6 183 7.2" 33 1.3" 1.446000
    dimensional image
    View Page → Tri-Clamp (6 5/8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0658 Dimensional Image Key:
    • Flange (A) mm:   183
    • B mm:   164.00
    • C mm:   297.00
    • W mm:   33
    SHSL0021706
    		Tri-Clamp (8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 8" 2-Pin Eye Bolt & Padlock Yes 20 290.08 217 8.54" 33 1.3" 2.014000
    dimensional image
    View Page → Tri-Clamp (8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0800 Dimensional Image Key:
    • Flange (A) mm:   217
    • B mm:   184.00
    • C mm:   332.00
    • W mm:   33
    SHSL0023306
    		Tri-Clamp (8 5/8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 8 5/8" DN 200 DN 200 2-Pin Eye Bolt & Padlock Yes 20 290.08 233 9.17" 33 1.3" 2.198000
    dimensional image
    View Page → Tri-Clamp (8 5/8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.0858 Dimensional Image Key:
    • Flange (A) mm:   233
    • B mm:   185.00
    • C mm:   333.00
    • W mm:   33
    SHSL0026806
    		Tri-Clamp (10") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 10" DN 250 2-Pin Eye Bolt & Padlock Yes 16 232.06 267 10.51" 33 1.3" 2.730000
    dimensional image
    View Page → Tri-Clamp (10") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.1000 Dimensional Image Key:
    • Flange (A) mm:   267
    • B mm:   205.00
    • C mm:   382.00
    • W mm:   33
    SHSL0028606
    		Tri-Clamp (10 5/8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 10 5/8" DN 250 2-Pin Eye Bolt & Padlock Yes 16 232.06 286 11.26" 33 1.3" 2.874000
    dimensional image
    View Page → Tri-Clamp (10 5/8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.1058 Dimensional Image Key:
    • Flange (A) mm:   286
    • B mm:   213.00
    • C mm:   405.00
    • W mm:   33
    SHSL0031906
    		Tri-Clamp (12") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 12" DN 300 2-Pin Eye Bolt & Padlock Yes 10 145.04 319 12.56" 33 1.3" 3.364000
    dimensional image
    View Page → Tri-Clamp (12") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.1200 Dimensional Image Key:
    • Flange (A) mm:   319
    • B mm:   242.00
    • C mm:   458.00
    • W mm:   33
    SHSL0033806
    		Tri-Clamp (12 5/8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock SH-Lockout 316 1.4408 J92900 12 5/8" DN 300 2-Pin Eye Bolt & Padlock Yes 10 145.04 338 13.31" 33 1.3" 3.204000
    dimensional image
    View Page → Tri-Clamp (12 5/8") | Type SH-Lockout | Stainless Steel 316 | Eye Bolt & Padlock Legacy Part Number IE:  CL.SAFL.1258 Dimensional Image Key:
    • Flange (A) mm:   338
    • B mm:   243.00
    • C mm:   463.00
    • W mm:   33
