    Full View Flow Indicator (FVFI)


    Full View Flow Indicator (FVFI)
    Description

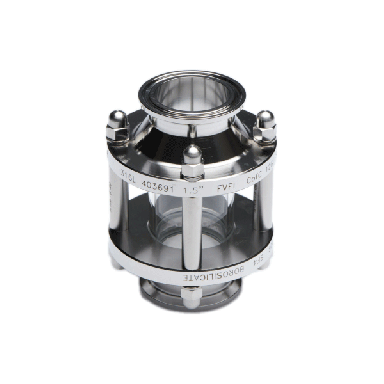

    FVFI Full View Flow Indicator; CT-SVFI is a patented design, controlled O-ring compression​, and glass is precision sized to meet the ID of the tube​.
    Installation
    Assembly / disassembly time is reduced due to use of a clamp connection​.
    Specifications
    • Supplied with full document pack​
    • Each assembly is hydrostatically tested to 1.5x MAWP​
    • Polished to ASME:BPE SF4(internal) SF6 (External) - Electro-polished​

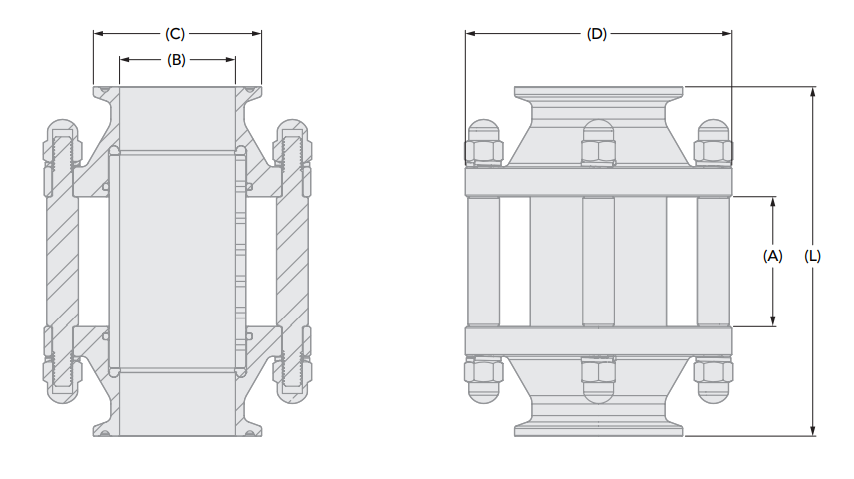

    Dimensional Image
    Features
    • Designed to EHEDG design guidelines for cleanability​
    • Suitable for Pharmaceutical Production​
    • Produced from EU materials​
    • Suitable for SIP
    • ASME BPE / 3A BS4825​ compatible
    Materials
    • EU sourced 1.4404​
    • Boro 3.3​
    • EPDM​
    Sight Glasses / Full View Flow Indicator (FVFI)
    Sight Glasses Sight Glasses Bubble Traps Bubble Traps
    Full View Flow Indicator (FVFI) Full View Flow Indicator (FVFI)
    Clamp Type - Sterile Visual Flow Indicator (CT-SVFI) Clamp Type - Sterile Visual Flow Indicator (CT-SVFI) Sterile Visual Flow Indicator (SVFI) Sterile Visual Flow Indicator (SVFI) DIN 32676 - Sterile Visual Flow Indicator (SVFI) DIN 32676 - Sterile Visual Flow Indicator (SVFI)
    Total: 10
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Standard (EN) Standard (ASTM) Size (in) Size (mm) Pressure Rating (bar) Pressure Rating (psi) Flange (mm) Flange (in) ID (mm) ID (in) Length (mm) Length (in) Window Diameter (mm) Window Diameter (in) Window Area (mm²) Gasket Seal Weight
    SFEKA1025952S46L
    		Full View Flow Indicator (3/8") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 3/8" 9.525 22 319.08 25.4 1" 0.3" 90 3.54" 27.5 0.000000
    dimensional image
    View Page → Full View Flow Indicator (3/8") | ASME BPE | 316L Dimensional Image Key:
    • Window (A) x (W) mm:   27.5
    • ID (B) mm:   7.7
    • Mating Flange (C) mm:   25.4
    • Length (L) mm:   90
    • Minor OD (F) mm:   50
    • Flange (C) mm:   25.4
    • View (A) mm:   27.5
    • OD (D) mm:   50
    • Mating Flange (C) in:   1"
    • ID (B) in:   0.3"
    • Minor OD (F) in:   1.97"
    • Window (A) x (W) in:   1.08"
    • Window Height (A) mm:   27.5
    • Window Height (A) in:   1.08"
    • Length (L) in:   3.54"
    • ID mm:   7.7
    SFEKA1025127S46L
    		Full View Flow Indicator (1/2") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 1/2" 12.7 20 290.08 25.4 1" 0.37" 90 3.54" 27.5 0.410000
    dimensional image
    View Page → Full View Flow Indicator (1/2") | ASME BPE | 316L GTIN:  840384323261 Legacy Part Number UK:  SG.FV.050 - 1/2" FULL VIEW - VISUAL FLOW Legacy Part Number DK:  SGFV050SF4 Dimensional Image Key:
    • Window (A) x (W) mm:   27.5
    • ID (B) mm:   9.5
    • Mating Flange (C) mm:   25.4
    • Length (L) mm:   90
    • Minor OD (F) mm:   50
    • Flange (C) mm:   25.4
    • View (A) mm:   27.5
    • OD (D) mm:   50
    • Mating Flange (C) in:   1"
    • ID (B) in:   0.37"
    • Minor OD (F) in:   1.97"
    • Window (A) x (W) in:   1.08"
    • Window Height (A) mm:   27.5
    • Window Height (A) in:   1.08"
    • Length (L) in:   3.54"
    • ID mm:   9.5
    SFEKA1025195S46L
    		Full View Flow Indicator (3/4") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 3/4" 19.05 17.5 253.82 25.4 1" 0.62" 90 3.54" 27.5 0.380000
    dimensional image
    View Page → Full View Flow Indicator (3/4") | ASME BPE | 316L GTIN:  840384323278 Legacy Part Number UK:  SG.FV.075 - 3/4" FULL VIEW - VISUAL FLOW Legacy Part Number DK:  SGFV075SF4 Dimensional Image Key:
    • Window (A) x (W) mm:   27.5
    • ID (B) mm:   15.8
    • Mating Flange (C) mm:   25.4
    • Length (L) mm:   90
    • Minor OD (F) mm:   50
    • Flange (C) mm:   25.4
    • View (A) mm:   27.5
    • OD (D) mm:   50
    • Mating Flange (C) in:   1"
    • ID (B) in:   0.62"
    • Minor OD (F) in:   1.97"
    • Window (A) x (W) in:   1.08"
    • Window Height (A) mm:   27.5
    • Window Height (A) in:   1.08"
    • Length (L) in:   3.54"
    • ID mm:   15.8
    SFEKA1050025S46L
    		Full View Flow Indicator (1") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 1" 25.4 8.5 123.28 50.5 1.99" 0.87" 105 4.13" 33 0.900000
    dimensional image
    View Page → Full View Flow Indicator (1") | ASME BPE | 316L GTIN:  840384323285 Legacy Part Number UK:  SG.FV.100 - 1" FULL VIEW - VISUAL FLOW Legacy Part Number DK:  SGFV100SF4 Dimensional Image Key:
    • Window (A) x (W) mm:   33
    • ID (B) mm:   22.1
    • Mating Flange (C) mm:   50.5
    • Length (L) mm:   105
    • Minor OD (F) mm:   70
    • Flange (C) mm:   50.5
    • View (A) mm:   33
    • OD (D) mm:   70
    • Mating Flange (C) in:   1.99"
    • ID (B) in:   0.87"
    • Minor OD (F) in:   2.76"
    • Window (A) x (W) in:   1.3"
    • Window Height (A) mm:   33
    • Window Height (A) in:   1.3"
    • Length (L) in:   4.13"
    • ID mm:   22.1
    SFEKA1050038S46L
    		Full View Flow Indicator (1 1/2") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 1 1/2" 38.1 8 116.03 50.5 1.99" 1.37" 105 4.13" 39 0.932100
    dimensional image
    View Page → Full View Flow Indicator (1 1/2") | ASME BPE | 316L GTIN:  840384323292 Legacy Part Number UK:  SG.FV.150 - 1 1/2" FULL VIEW - VISUAL FLOW Legacy Part Number DK:  SGFV150SF4 Dimensional Image Key:
    • Window (A) x (W) mm:   39
    • ID (B) mm:   34.8
    • Mating Flange (C) mm:   50.5
    • Length (L) mm:   105
    • Minor OD (F) mm:   80
    • Flange (C) mm:   50.5
    • View (A) mm:   39
    • OD (D) mm:   80
    • Mating Flange (C) in:   1.99"
    • ID (B) in:   1.37"
    • Minor OD (F) in:   3.15"
    • Window (A) x (W) in:   1.54"
    • Window Height (A) mm:   39
    • Window Height (A) in:   1.54"
    • Length (L) in:   4.13"
    • ID mm:   34.8
    SFEKA1064051S46L
    		Full View Flow Indicator (2") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 2" 50.8 7 101.53 64 2.52" 1.87" 140 5.51" 60 1.560000
    dimensional image
    View Page → Full View Flow Indicator (2") | ASME BPE | 316L GTIN:  840384323308 Legacy Part Number UK:  SG.FV.200 - 2" FULL VIEW - VISUAL FLOW Legacy Part Number DK:  SGFV200SF4 Dimensional Image Key:
    • Window (A) x (W) mm:   60
    • ID (B) mm:   47.5
    • Mating Flange (C) mm:   64
    • Length (L) mm:   140
    • Minor OD (F) mm:   100
    • Flange (C) mm:   64
    • View (A) mm:   60
    • OD (D) mm:   100
    • Mating Flange (C) in:   2.52"
    • ID (B) in:   1.87"
    • Minor OD (F) in:   3.94"
    • Window (A) x (W) in:   2.36"
    • Window Height (A) mm:   60
    • Window Height (A) in:   2.36"
    • Length (L) in:   5.51"
    • ID mm:   47.5
    SFEKA1077063S46L
    		Full View Flow Indicator (2 1/2") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 2 1/2" 63.5 6.5 94.27 77.5 3.05" 2.37" 151 5.94" 86 2.100000
    dimensional image
    View Page → Full View Flow Indicator (2 1/2") | ASME BPE | 316L GTIN:  840384323315 Legacy Part Number UK:  SG.FV.250 - 2 1/2" FULL VIEW - VISUAL FLOW Legacy Part Number DK:  SGFV250SF4 Dimensional Image Key:
    • Window (A) x (W) mm:   86
    • ID (B) mm:   60.3
    • Mating Flange (C) mm:   77.5
    • Length (L) mm:   151
    • Minor OD (F) mm:   115
    • Flange (C) mm:   77.5
    • View (A) mm:   86
    • OD (D) mm:   115
    • Mating Flange (C) in:   3.05"
    • ID (B) in:   2.37"
    • Minor OD (F) in:   4.53"
    • Window (A) x (W) in:   3.39"
    • Window Height (A) mm:   86
    • Window Height (A) in:   3.39"
    • Length (L) in:   5.94"
    • ID mm:   60.3
    SFEKA1091076S46L
    		Full View Flow Indicator (3") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 3" 76.2 6.5 94.27 91 3.58" 2.87" 181 7.13" 90 2.840000
    dimensional image
    View Page → Full View Flow Indicator (3") | ASME BPE | 316L GTIN:  840384323322 Legacy Part Number UK:  SG.FV.300 - 3" FULL VIEW - VISUAL FLOW Legacy Part Number DK:  SGFV300SF4 Dimensional Image Key:
    • Window (A) x (W) mm:   90
    • ID (B) mm:   72.9
    • Mating Flange (C) mm:   91
    • Length (L) mm:   181
    • Minor OD (F) mm:   127
    • Flange (C) mm:   91
    • View (A) mm:   90
    • OD (D) mm:   127
    • Mating Flange (C) in:   3.58"
    • ID (B) in:   2.87"
    • Minor OD (F) in:   5"
    • Window (A) x (W) in:   3.54"
    • Window Height (A) mm:   90
    • Window Height (A) in:   3.54"
    • Length (L) in:   7.13"
    • ID mm:   72.9
    SFEKA1119101S46L
    		Full View Flow Indicator (4") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 4" 101.6 4 58.02 119 4.69" 3.83" 206 8.11" 100 4.280000
    dimensional image
    View Page → Full View Flow Indicator (4") | ASME BPE | 316L GTIN:  840384323339 Legacy Part Number UK:  SG.FV.400 - 4" FULL VIEW - VISUAL FLOW Dimensional Image Key:
    • Window (A) x (W) mm:   100
    • ID (B) mm:   97.4
    • Mating Flange (C) mm:   119
    • Length (L) mm:   206
    • Minor OD (F) mm:   156
    • Flange (C) mm:   119
    • View (A) mm:   100
    • OD (D) mm:   156
    • Mating Flange (C) in:   4.69"
    • ID (B) in:   3.83"
    • Minor OD (F) in:   6.14"
    • Window (A) x (W) in:   3.94"
    • Window Height (A) mm:   100
    • Window Height (A) in:   3.94"
    • Length (L) in:   8.11"
    • ID mm:   97.4
    SFEKA1167152S46L
    		Full View Flow Indicator (6") | ASME BPE | 316L ASME BPE Full View Flow Indicator 316L 1.4404 S31603 6" 152.4 3 43.51 167 6.57" 5.91" 254 10" 150 8.520000
    dimensional image
    View Page → Full View Flow Indicator (6") | ASME BPE | 316L GTIN:  840384323346 Legacy Part Number UK:  SG.FV.600 - 6" FULL VIEW - VISUAL FLOW Dimensional Image Key:
    • Window (A) x (W) mm:   150
    • ID (B) mm:   150
    • Mating Flange (C) mm:   167
    • Length (L) mm:   254
    • Minor OD (F) mm:   214
    • Flange (C) mm:   167
    • View (A) mm:   150
    • OD (D) mm:   214
    • Mating Flange (C) in:   6.57"
    • ID (B) in:   5.91"
    • Minor OD (F) in:   8.43"
    • Window (A) x (W) in:   5.91"
    • Window Height (A) mm:   150
    • Window Height (A) in:   5.91"
    • Length (L) in:   10"
    • ID mm:   150
