    Clamp Type - Sterile Visual Flow Indicator (CT-SVFI)


    Clamp Type - Sterile Visual Flow Indicator (CT-SVFI)
    Description
    CT-SVFI SHX Clamp Type Sterile Visual Flow Indicator for Pharma (F&B / Chem too) applications boasts a patented design, controlled O-ring compression​, and glass is precision sized to meet the ID of the tube​. Sizes from 3/8" to 6" (Stock), and 6.625" to 12" (Bespoke).
    Installation
    Assembly / disassembly time is reduced due to use of a clamp connection​.
    Specifications
    • ASME BPE / 3A BS4825​ compatible
    • Supplied with full document pack​
    • Each assembly is hydrostatically tested to 1.5x MAWP​
    • Polished to ASME:BPE SF4(internal) SF6 (External) - Electro-polished​
    ACL® CT-SVFI – SHX Clamp Type Sterile Visual Flow Indicator Data Sheet Download
    Dimensional Image
    Features
    • Designed to EHEDG design guidelines for cleanability​
    • Suitable for Pharmaceutical Production​
    • Produced from EU materials​
    • Suitable for SIP
    • Assembly / disassembly time is reduced due to use of a clamp connection

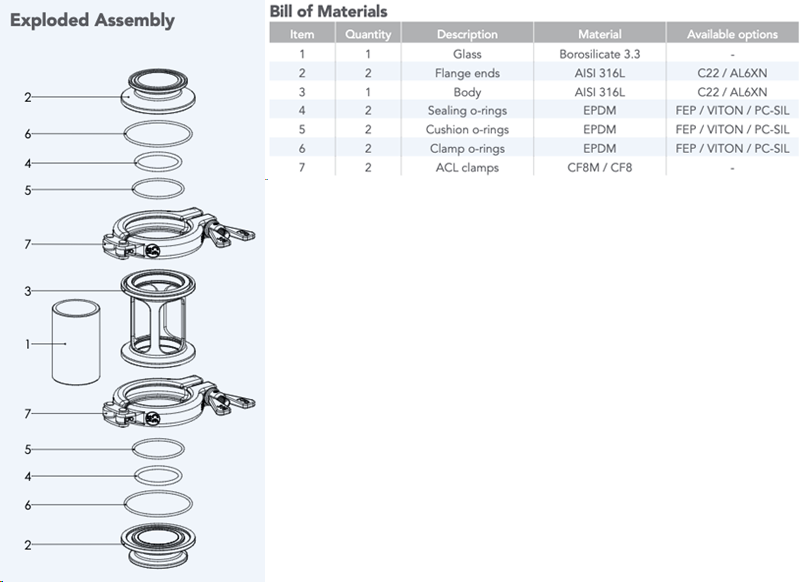

    Materials

    EU sourced 1.4404, Boro 3.3, EPDM

    Sight Glasses / Clamp Type - Sterile Visual Flow Indicator (CT-SVFI)
    Sight Glasses Sight Glasses Bubble Traps Bubble Traps
    Clamp Type - Sterile Visual Flow Indicator (CT-SVFI) Clamp Type - Sterile Visual Flow Indicator (CT-SVFI)
    Sterile Visual Flow Indicator (SVFI) Sterile Visual Flow Indicator (SVFI) DIN 32676 - Sterile Visual Flow Indicator (SVFI) DIN 32676 - Sterile Visual Flow Indicator (SVFI) Full View Flow Indicator (FVFI) Full View Flow Indicator (FVFI)
    Total: 8
    Industry
    PART#    		 Product
    Name    		 Standard Type Material Grade Standard (EN) Standard (ASTM) Size (in) Size (mm) Pressure Rating (bar) Pressure Rating (psi) Flange (mm) Flange (in) Flange 2 (mm) Flange 2 (in) ID (mm) ID (in) Body (mm) Body (in) Width (mm) Width (in) Length (mm) Length (in) Window Height (mm) Window Height (in) Window Width (mm) Window Width (in) Window Area (mm²) Gasket Seal Weight
    SCEKA1025127S46L
    		Clamp Type Sterile Visual Flow Indicator (1/2") | ASME BPE | 316L ASME BPE Clamp Type Sterile Visual Flow Indicator 316L 1.4404 S31603 1/2" 12.7 20 290.08 25 0.98" 34 1.34" 0.37" 85 3.35" 76 2.99" 24 0.94" 8 0.31" 24 x 8 0.570000
    dimensional image
    View Page → Clamp Type Sterile Visual Flow Indicator (1/2") | ASME BPE | 316L Legacy Part Number IE:  SG.SC.050 Legacy Part Number UK:  SG.SC.050 - 1/2" CLAMP TYPE SVFI - 316L Legacy Part Number DK:  CTSVFI0050SF4 Dimensional Image Key:
    • Width (W) mm:   8
    • Window (A) x (W) mm:   24 x 8
    • ID (B) mm:   9.4
    • Mating Flange (C) mm:   25
    • Integral Flange (D) mm:   34
    • Length (L) mm:   76
    • Width (E) mm:   85
    • Minor OD (F) mm:   46.3
    • Major OD (G) mm:   136
    • Width (W) in:   0.31"
    • Mating Flange (C) in:   0.98"
    • Integral Flange (D) in:   1.34"
    • ID (B) in:   0.37"
    • Minor OD (F) in:   1.82"
    • Major OD (G) in:   5.35"
    • Window (A) x (W) in:   0.94" x 0.31"
    • Window Height (A) mm:   24
    • Window Height (A) in:   0.94"
    • Width (E) in:   3.35"
    • Length (L) in:   2.99"
    • ID mm:   9.4
    SCEKA1025195S46L
    		Clamp Type Sterile Visual Flow Indicator (3/4") | ASME BPE | 316L ASME BPE Clamp Type Sterile Visual Flow Indicator 316L 1.4404 S31603 3/4" 19.05 17.5 253.82 25 0.98" 50.5 1.99" 0.62" 102 4.02" 87 3.43" 29 1.14" 13 0.51" 29 x 13 0.890000
    dimensional image
    View Page → Clamp Type Sterile Visual Flow Indicator (3/4") | ASME BPE | 316L Legacy Part Number IE:  SG.SC.075 Legacy Part Number UK:  SG.SC.075 - 3/4" CLAMP TYPE SVFI - 316L Legacy Part Number DK:  SCEKA1025195S46L Dimensional Image Key:
    • Width (W) mm:   13
    • Window (A) x (W) mm:   29 x 13
    • ID (B) mm:   15.75
    • Mating Flange (C) mm:   25
    • Integral Flange (D) mm:   50.5
    • Length (L) mm:   87
    • Width (E) mm:   102
    • Minor OD (F) mm:   62.2
    • Major OD (G) mm:   154
    • Width (W) in:   0.51"
    • Mating Flange (C) in:   0.98"
    • Integral Flange (D) in:   1.99"
    • ID (B) in:   0.62"
    • Minor OD (F) in:   2.45"
    • Major OD (G) in:   6.06"
    • Window (A) x (W) in:   1.14" x 0.51"
    • Window Height (A) mm:   29
    • Window Height (A) in:   1.14"
    • Width (E) in:   4.02"
    • Length (L) in:   3.43"
    • ID mm:   15.75
    SCEKA1050025S46L
    		Clamp Type Sterile Visual Flow Indicator (1") | ASME BPE | 316L ASME BPE Clamp Type Sterile Visual Flow Indicator 316L 1.4404 S31603 1" 25.4 8.5 123.28 50.5 1.99" 50.5 1.99" 0.87" 102 4.02" 90 3.54" 34 1.34" 16 0.63" 34 x 16 1.025000
    dimensional image
    View Page → Clamp Type Sterile Visual Flow Indicator (1") | ASME BPE | 316L Legacy Part Number IE:  SG.SC.100 Legacy Part Number UK:  SG.SC.100 - 1" CLAMP TYPE SVFI - 316L Legacy Part Number DK:  SCEKA1050025S46L Dimensional Image Key:
    • Width (W) mm:   16
    • Window (A) x (W) mm:   34 x 16
    • ID (B) mm:   22.1
    • Mating Flange (C) mm:   50.5
    • Integral Flange (D) mm:   50.5
    • Length (L) mm:   90
    • Width (E) mm:   102
    • Minor OD (F) mm:   62.2
    • Major OD (G) mm:   154
    • Width (W) in:   0.63"
    • Mating Flange (C) in:   1.99"
    • Integral Flange (D) in:   1.99"
    • ID (B) in:   0.87"
    • Minor OD (F) in:   2.45"
    • Major OD (G) in:   6.06"
    • Window (A) x (W) in:   1.34" x 0.63"
    • Window Height (A) mm:   34
    • Window Height (A) in:   1.34"
    • Width (E) in:   4.02"
    • Length (L) in:   3.54"
    • ID mm:   22.1
    SCEKA1050038S46L
    		Clamp Type Sterile Visual Flow Indicator (1 1/2") | ASME BPE | 316L ASME BPE Clamp Type Sterile Visual Flow Indicator 316L 1.4404 S31603 1 1/2" 38.1 8 116.03 50.5 1.99" 64 2.52" 1.37" 123 4.84" 105 4.13" 48 1.89" 26 1.02" 48 x 26 1.170000
    dimensional image
    View Page → Clamp Type Sterile Visual Flow Indicator (1 1/2") | ASME BPE | 316L Legacy Part Number IE:  SG.SC.150 Legacy Part Number UK:  SG.SC.150 - 1 1/2" CLAMP TYPE SVFI - 316L Legacy Part Number DK:  SCEKA1050038S46L Dimensional Image Key:
    • Width (W) mm:   26
    • Window (A) x (W) mm:   48 x 26
    • ID (B) mm:   34.8
    • Mating Flange (C) mm:   50.5
    • Integral Flange (D) mm:   64
    • Length (L) mm:   105
    • Width (E) mm:   123
    • Minor OD (F) mm:   77.7
    • Major OD (G) mm:   186
    • Width (W) in:   1.02"
    • Mating Flange (C) in:   1.99"
    • Integral Flange (D) in:   2.52"
    • ID (B) in:   1.37"
    • Minor OD (F) in:   3.06"
    • Major OD (G) in:   7.32"
    • Window (A) x (W) in:   1.89" x 1.02"
    • Window Height (A) mm:   48
    • Window Height (A) in:   1.89"
    • Width (E) in:   4.84"
    • Length (L) in:   4.13"
    • ID mm:   34.8
    SCEKA1050051S46L
    		Clamp Type Sterile Visual Flow Indicator (2") | ASME BPE | 316L ASME BPE Clamp Type Sterile Visual Flow Indicator 316L 1.4404 S31603 2" 50.8 7 101.53 64 2.52" 77.5 3.05" 1.87" 140 5.51" 120 4.72" 55 2.17" 36 1.42" 55 x 36 1.510000
    dimensional image
    View Page → Clamp Type Sterile Visual Flow Indicator (2") | ASME BPE | 316L Legacy Part Number IE:  SG.SC.200 Legacy Part Number UK:  SG.SC.200 - 2" CLAMP TYPE SVFI - 316L Legacy Part Number DK:  SCEKA1050051S46L Dimensional Image Key:
    • Width (W) mm:   36
    • Window (A) x (W) mm:   55 x 36
    • ID (B) mm:   47.5
    • Mating Flange (C) mm:   64
    • Integral Flange (D) mm:   77.5
    • Length (L) mm:   120
    • Width (E) mm:   140
    • Minor OD (F) mm:   91.2
    • Major OD (G) mm:   200
    • Width (W) in:   1.42"
    • Mating Flange (C) in:   2.52"
    • Integral Flange (D) in:   3.05"
    • ID (B) in:   1.87"
    • Minor OD (F) in:   3.59"
    • Major OD (G) in:   7.87"
    • Window (A) x (W) in:   2.17" x 1.42"
    • Window Height (A) mm:   55
    • Window Height (A) in:   2.17"
    • Width (E) in:   5.51"
    • Length (L) in:   4.72"
    • ID mm:   47.5
    SCEKA1077063S46L
    		Clamp Type Sterile Visual Flow Indicator (2 1/2") | ASME BPE | 316L ASME BPE Clamp Type Sterile Visual Flow Indicator 316L 1.4404 S31603 2 1/2" 63.5 6.5 94.27 77.5 3.05" 91 3.58" 2.37" 150 5.91" 151 5.94" 72 2.83" 33 1.3" 72 x 33 1.880000
    dimensional image
    View Page → Clamp Type Sterile Visual Flow Indicator (2 1/2") | ASME BPE | 316L Legacy Part Number IE:  SG.SC.250 Legacy Part Number UK:  SG.SC.250 - 2 1/2" CLAMP TYPE SVFI - 316L Legacy Part Number DK:  SCEKA1077063S46L Dimensional Image Key:
    • Width (W) mm:   33
    • Window (A) x (W) mm:   72 x 33
    • ID (B) mm:   60.2
    • Mating Flange (C) mm:   77.5
    • Integral Flange (D) mm:   91
    • Length (L) mm:   151
    • Width (E) mm:   150
    • Minor OD (F) mm:   104.7
    • Major OD (G) mm:   212
    • Width (W) in:   1.3"
    • Mating Flange (C) in:   3.05"
    • Integral Flange (D) in:   3.58"
    • ID (B) in:   2.37"
    • Minor OD (F) in:   4.12"
    • Major OD (G) in:   8.35"
    • Window (A) x (W) in:   2.83" x 1.3"
    • Window Height (A) mm:   72
    • Window Height (A) in:   2.83"
    • Width (E) in:   5.91"
    • Length (L) in:   5.94"
    • ID mm:   60.2
    SCEKA1091076S46L
    		Clamp Type Sterile Visual Flow Indicator (3") | ASME BPE | 316L ASME BPE Clamp Type Sterile Visual Flow Indicator 316L 1.4404 S31603 3" 76.2 6.5 94.27 91 3.58" 106 4.17" 2.87" 165 6.5" 175 6.89" 108 4.25" 36 1.42" 108 x 36 2.480000
    dimensional image
    View Page → Clamp Type Sterile Visual Flow Indicator (3") | ASME BPE | 316L Legacy Part Number IE:  SG.SC.300 Legacy Part Number UK:  SG.SC.300 - 3" CLAMP TYPE SVFI - 316L Legacy Part Number DK:  SCEKA1091076S46L Dimensional Image Key:
    • Width (W) mm:   36
    • Window (A) x (W) mm:   108 x 36
    • ID (B) mm:   72.9
    • Mating Flange (C) mm:   91
    • Integral Flange (D) mm:   106
    • Length (L) mm:   175
    • Width (E) mm:   165
    • Minor OD (F) mm:   119.7
    • Major OD (G) mm:   226
    • Width (W) in:   1.42"
    • Mating Flange (C) in:   3.58"
    • Integral Flange (D) in:   4.17"
    • ID (B) in:   2.87"
    • Minor OD (F) in:   4.71"
    • Major OD (G) in:   8.9"
    • Window (A) x (W) in:   4.25" x 1.42"
    • Window Height (A) mm:   108
    • Window Height (A) in:   4.25"
    • Width (E) in:   6.5"
    • Length (L) in:   6.89"
    • ID mm:   72.9
    SCEKA1119101S46L
    		Clamp Type Sterile Visual Flow Indicator (4") | ASME BPE | 316L ASME BPE Clamp Type Sterile Visual Flow Indicator 316L 1.4404 S31603 4" 101.6 4 58.02 119 4.69" 130 5.12" 3.83" 191 7.52" 200 7.87" 135 5.31" 48 1.89" 135 x 48 3.380000
    dimensional image
    View Page → Clamp Type Sterile Visual Flow Indicator (4") | ASME BPE | 316L Legacy Part Number IE:  SG.SC.400 Legacy Part Number UK:  SG.SC.400 - 4" CLAMP TYPE SVFI - 316L Legacy Part Number DK:  SCEKA1119101S46L Dimensional Image Key:
    • Width (W) mm:   48
    • Window (A) x (W) mm:   135 x 48
    • ID (B) mm:   97.38
    • Mating Flange (C) mm:   119
    • Integral Flange (D) mm:   130
    • Length (L) mm:   200
    • Width (E) mm:   191
    • Minor OD (F) mm:   143.7
    • Major OD (G) mm:   256
    • Width (W) in:   1.89"
    • Mating Flange (C) in:   4.69"
    • Integral Flange (D) in:   5.12"
    • ID (B) in:   3.83"
    • Minor OD (F) in:   5.66"
    • Major OD (G) in:   10.08"
    • Window (A) x (W) in:   5.31" x 1.89"
    • Window Height (A) mm:   135
    • Window Height (A) in:   5.31"
    • Width (E) in:   7.52"
    • Length (L) in:   7.87"
    • ID mm:   97.38
