DIN 32676 - Sterile Visual Flow Indicator (SVFI)

Description

DIN 32676 Sterile Visual Flow Indicators; CT-SVFI is a patented design, controlled O-ring compression, and glass is precision sized to meet the ID of the tube.

Installation

Assembly / disassembly time is reduced due to use of a clamp connection.

Specifications

Supplied with full document pack
Each assembly is hydrostatically tested to 1.5x MAWP
Polished to ASME:BPE SF4(internal) SF6 (External) - Electro-polished

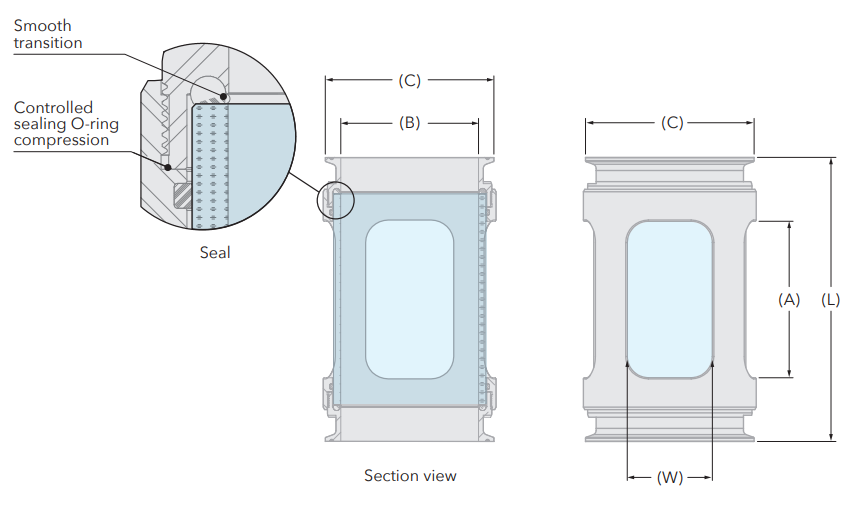

Dimensional Image

Features

Designed to EHEDG design guidelines for cleanability
Suitable for Pharmaceutical Production
Produced from EU materials
Suitable for SIP
ASME BPE / 3A BS4825 compatible

Materials

EU sourced 1.4404
Boro 3.3
EPDM

Sight Glasses / DIN 32676 - Sterile Visual Flow Indicator (SVFI)

Sight Glasses

Bubble Traps

DIN 32676 - Sterile Visual Flow Indicator (SVFI)

Clamp Type - Sterile Visual Flow Indicator (CT-SVFI)

Sterile Visual Flow Indicator (SVFI)

Full View Flow Indicator (FVFI)

Industry PART#	Product Name	Standard	Type	Material Grade	Standard (EN)	Standard (ASTM)	Size DN	Pressure Rating (bar)	Pressure Rating (psi)	Flange (mm)	Flange (in)	ID (in)	Length (mm)	Length (in)	Window Height (mm)	Window Height (in)	Window Width (mm)	Window Width (in)	Window Area (mm²)	Weight
Pharmaceutical SVEKDA034013S46L	Sterile Visual Flow Indicator (DN 10) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 10	28	406.11	34	1.34"	0.39"	80	3.15"	10	0.39"	20	0.79"	10 x 20	0.190000
View Page → Sterile Visual Flow Indicator (DN 10) \| DIN 32676 Table A \| 316L GTIN: 840384323735 Legacy Part Number UK: SG.SV.D010 - DIN 10 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD010 Dimensional Image Key: Width (W) mm: 20 Window (A) x (W) mm: 10 x 20 ID (B) mm: 10 Mating Flange (C) mm: 34 Length (L) mm: 80 Flange (C) mm: 34 Width (W) in: 0.79" Mating Flange (C) in: 1.34" ID (B) in: 0.39" Window (A) x (W) in: 0.39" x 0.79" Window Height (A) mm: 10 Window Height (A) in: 0.39" Length (L) in: 3.15" ID mm: 10
Pharmaceutical SVEKDA034019S46L	Sterile Visual Flow Indicator (DN 15) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 15	18	261.07	34	1.34"	0.63"	87	3.43"	12.5	0.49"	27	1.06"	12.5 x 27	0.210000
View Page → Sterile Visual Flow Indicator (DN 15) \| DIN 32676 Table A \| 316L GTIN: 840384323759 Legacy Part Number UK: SG.SV.D015 - DIN 15 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD015 Dimensional Image Key: Width (W) mm: 27 Window (A) x (W) mm: 12.5 x 27 ID (B) mm: 16 Mating Flange (C) mm: 34 Length (L) mm: 87 Flange (C) mm: 34 Width (W) in: 1.06" Mating Flange (C) in: 1.34" ID (B) in: 0.63" Window (A) x (W) in: 0.49" x 1.06" Window Height (A) mm: 12.5 Window Height (A) in: 0.49" Length (L) in: 3.43" ID mm: 16
Pharmaceutical SVEKDA034023S46L	Sterile Visual Flow Indicator (DN 20) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 20	15	217.56	34	1.34"	0.79"	90	3.54"	15	0.59"	30	1.18"	15 x 30	0.210000
View Page → Sterile Visual Flow Indicator (DN 20) \| DIN 32676 Table A \| 316L GTIN: 840384323773 Legacy Part Number UK: SG.SV.D020 - DIN 20 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD020 Dimensional Image Key: Width (W) mm: 30 Window (A) x (W) mm: 15 x 30 ID (B) mm: 20 Mating Flange (C) mm: 34 Length (L) mm: 90 Flange (C) mm: 34 Width (W) in: 1.18" Mating Flange (C) in: 1.34" ID (B) in: 0.79" Window (A) x (W) in: 0.59" x 1.18" Window Height (A) mm: 15 Window Height (A) in: 0.59" Length (L) in: 3.54" ID mm: 20
Pharmaceutical SVEKDA050029S46L	Sterile Visual Flow Indicator (DN 25) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 25	12.9	187.1	50.5	1.99"	1.02"	95	3.74"	19	0.75"	38	1.5"	19 x 38	0.366000
View Page → Sterile Visual Flow Indicator (DN 25) \| DIN 32676 Table A \| 316L GTIN: 840384323797 Legacy Part Number UK: SG.SV.D025 - DIN 25 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD025 Dimensional Image Key: Width (W) mm: 38 Window (A) x (W) mm: 19 x 38 ID (B) mm: 26 Mating Flange (C) mm: 50.5 Length (L) mm: 95 Flange (C) mm: 50.5 Width (W) in: 1.5" Mating Flange (C) in: 1.99" ID (B) in: 1.02" Window (A) x (W) in: 0.75" x 1.5" Window Height (A) mm: 19 Window Height (A) in: 0.75" Length (L) in: 3.74" ID mm: 26
Pharmaceutical SVEKDA050035S46L	Sterile Visual Flow Indicator (DN 32) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 32	10.9	158.09	50.5	1.99"	1.26"	102	4.02"	23.5	0.93"	42	1.65"	23.5 x 42	0.340000
View Page → Sterile Visual Flow Indicator (DN 32) \| DIN 32676 Table A \| 316L GTIN: 840384323810 Legacy Part Number UK: SG.SV.D032 - DIN 32 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD032 Dimensional Image Key: Width (W) mm: 42 Window (A) x (W) mm: 23.5 x 42 ID (B) mm: 32 Mating Flange (C) mm: 50.5 Length (L) mm: 102 Flange (C) mm: 50.5 Width (W) in: 1.65" Mating Flange (C) in: 1.99" ID (B) in: 1.26" Window (A) x (W) in: 0.93" x 1.65" Window Height (A) mm: 23.5 Window Height (A) in: 0.93" Length (L) in: 4.02" ID mm: 32
Pharmaceutical SVEKDA050041S46L	Sterile Visual Flow Indicator (DN 40) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 40	10.9	158.09	50.5	1.99"	1.5"	108	4.25"	28	1.1"	51	2.01"	28 x 51	0.380000
View Page → Sterile Visual Flow Indicator (DN 40) \| DIN 32676 Table A \| 316L GTIN: 840384323834 Legacy Part Number UK: SG.SV.D040 - DIN 40 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD040 Dimensional Image Key: Width (W) mm: 51 Window (A) x (W) mm: 28 x 51 ID (B) mm: 38 Mating Flange (C) mm: 50.5 Length (L) mm: 108 Flange (C) mm: 50.5 Width (W) in: 2.01" Mating Flange (C) in: 1.99" ID (B) in: 1.5" Window (A) x (W) in: 1.1" x 2.01" Window Height (A) mm: 28 Window Height (A) in: 1.1" Length (L) in: 4.25" ID mm: 38
Pharmaceutical SVEKDA064053S46L	Sterile Visual Flow Indicator (DN 50) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 50	9	130.53	64	2.52"	1.97"	124	4.88"	38	1.5"	64	2.52"	38 x 64	0.700000
View Page → Sterile Visual Flow Indicator (DN 50) \| DIN 32676 Table A \| 316L GTIN: 840384323858 Legacy Part Number UK: SG.SV.D050 - DIN 50 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD050 Dimensional Image Key: Width (W) mm: 64 Window (A) x (W) mm: 38 x 64 ID (B) mm: 50 Mating Flange (C) mm: 64 Length (L) mm: 124 Flange (C) mm: 64 Width (W) in: 2.52" Mating Flange (C) in: 2.52" ID (B) in: 1.97" Window (A) x (W) in: 1.5" x 2.52" Window Height (A) mm: 38 Window Height (A) in: 1.5" Length (L) in: 4.88" ID mm: 50
Pharmaceutical SVEKDA091070S46L	Sterile Visual Flow Indicator (DN 65) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 65	9.8	142.14	91	3.58"	2.6"	162	6.38"	51	2.01"	83	3.27"	51 x 83	1.310000
View Page → Sterile Visual Flow Indicator (DN 65) \| DIN 32676 Table A \| 316L GTIN: 840384323872 Legacy Part Number UK: SG.SV.D065 - DIN 65 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD065 Dimensional Image Key: Width (W) mm: 83 Window (A) x (W) mm: 51 x 83 ID (B) mm: 66 Mating Flange (C) mm: 91 Length (L) mm: 162 Flange (C) mm: 91 Width (W) in: 3.27" Mating Flange (C) in: 3.58" ID (B) in: 2.6" Window (A) x (W) in: 2.01" x 3.27" Window Height (A) mm: 51 Window Height (A) in: 2.01" Length (L) in: 6.38" ID mm: 66
Pharmaceutical SVEKDA106085S46L	Sterile Visual Flow Indicator (DN 80) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 80	8.1	117.48	106	4.17"	3.19"	183	7.2"	58	2.28"	98	3.86"	58 x 98	1.890000
View Page → Sterile Visual Flow Indicator (DN 80) \| DIN 32676 Table A \| 316L GTIN: 840384323896 Legacy Part Number UK: SG.SV.D080 - DIN 80 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD080 Dimensional Image Key: Width (W) mm: 98 Window (A) x (W) mm: 58 x 98 ID (B) mm: 81 Mating Flange (C) mm: 106 Length (L) mm: 183 Flange (C) mm: 106 Width (W) in: 3.86" Mating Flange (C) in: 4.17" ID (B) in: 3.19" Window (A) x (W) in: 2.28" x 3.86" Window Height (A) mm: 58 Window Height (A) in: 2.28" Length (L) in: 7.2" ID mm: 81
Pharmaceutical SVEKDA119104S46L	Sterile Visual Flow Indicator (DN 100) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 100	6.7	97.18	119	4.69"	3.94"	202	7.95"	71	2.8"	107	4.21"	71 x 107	2.120000
View Page → Sterile Visual Flow Indicator (DN 100) \| DIN 32676 Table A \| 316L GTIN: 840384323919 Legacy Part Number UK: SG.SV.D100 - DIN 100 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD100 Dimensional Image Key: Width (W) mm: 107 Window (A) x (W) mm: 71 x 107 ID (B) mm: 100 Mating Flange (C) mm: 119 Length (L) mm: 202 Flange (C) mm: 119 Width (W) in: 4.21" Mating Flange (C) in: 4.69" ID (B) in: 3.94" Window (A) x (W) in: 2.8" x 4.21" Window Height (A) mm: 71 Window Height (A) in: 2.8" Length (L) in: 7.95" ID mm: 100
Pharmaceutical SVEKDA155129S46L	Sterile Visual Flow Indicator (DN 125) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 125	7.2	104.43	155	6.1"	4.92"	225	8.86"	82	3.23"	127	5"	82 x 127	3.940000
View Page → Sterile Visual Flow Indicator (DN 125) \| DIN 32676 Table A \| 316L GTIN: 840384323933 Legacy Part Number UK: SG.SV.D125 - DIN 125 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD125 Dimensional Image Key: Width (W) mm: 127 Window (A) x (W) mm: 82 x 127 ID (B) mm: 125 Mating Flange (C) mm: 155 Length (L) mm: 225 Flange (C) mm: 155 Width (W) in: 5" Mating Flange (C) in: 6.1" ID (B) in: 4.92" Window (A) x (W) in: 3.23" x 5" Window Height (A) mm: 82 Window Height (A) in: 3.23" Length (L) in: 8.86" ID mm: 125
Pharmaceutical SVEKDA183154S46L	Sterile Visual Flow Indicator (DN 150) \| DIN 32676 Table A \| 316L	DIN 32676 Table A	Sterile Visual Flow Indicator	316L	1.4404	S31603	DN 150	6.1	88.47	183	7.2"	5.91"	251	9.88"	95	3.74"	148	5.83"	95 x 148	7.010000
View Page → Sterile Visual Flow Indicator (DN 150) \| DIN 32676 Table A \| 316L GTIN: 840384323957 Legacy Part Number UK: SG.SV.D150 - DIN 150 STERILE VISUAL FLOW Legacy Part Number DK: SGSVD150 Dimensional Image Key: Width (W) mm: 148 Window (A) x (W) mm: 95 x 148 ID (B) mm: 150 Mating Flange (C) mm: 183 Length (L) mm: 251 Flange (C) mm: 183 Width (W) in: 5.83" Mating Flange (C) in: 7.2" ID (B) in: 5.91" Window (A) x (W) in: 3.74" x 5.83" Window Height (A) mm: 95 Window Height (A) in: 3.74" Length (L) in: 9.88" ID mm: 150
