    Equal Cross


    Equal Cross
    Description

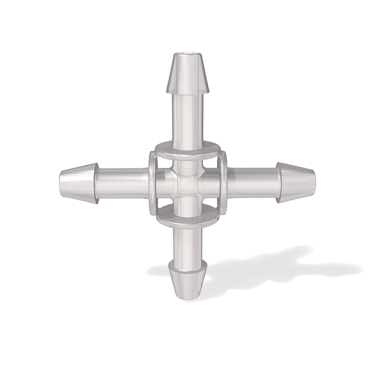

    ACL Equal Cross Connectors are designed for use in single-use process systems in the Pharmaceutical and Biotech industries. The four-way equal-bore configuration allows multi-directional flow distribution in single-use tubing assemblies. Manufactured from bioprocess-compatible polypropylene.

    Specifications
    • Compatible with standard single-use tubing sizes
    • Suitable for single-use bioprocess applications
    Features
    • Four equal-bore connections for multi-directional flow distribution
    • Designed for single-use pharmaceutical and biotech process systems
    • Manufactured from bioprocess-compatible materials
    • Smooth internal bore for hygienic fluid handling
    • Available in a range of sizes
    Materials
    • Material: Bioprocess-compatible polymer
    Single Use Connectors / Equal Cross
    Single Use Connectors Single Use Connectors QuickSecure Tri-Clamp QuickSecure Tri-Clamp Luer Lock Luer Lock Pinch Clamps Pinch Clamps Quick Connector Quick Connector
    Equal Cross Equal Cross
    Y-Hose Connector Y-Hose Connector T-Hose Connector T-Hose Connector End Plug End Plug Straight Straight Single Use Reducers Single Use Reducers Hosetail Hosetail Tri-Clamp Equal Tee Tri-Clamp Equal Tee Tri-Clamp End Cap Tri-Clamp End Cap
    Total: 4
    Industry
    PART#    		 Product
    Name    		 Type Material Grade Size (in) Size 2 (in) ID (mm) ID (in) ID 2 (mm) ID 2 (in) OD (mm) OD (in) Length (mm) Length (in) Length 2 (mm) Length 2 (in) Weight
    SFXEHB635PP-A
    		Equal Cross - Hose Connection (1/4") | Single Use | Polypropylene Equal Cross - Hose Connection Polypropylene 1/4" 0.19" 9.4 0.37" 57 2.24" 57 2.24" 0.0072
    View Page → Equal Cross - Hose Connection (1/4") | Single Use | Polypropylene
    SFXEHB127PP-A
    		Equal Cross - Hose Connection (1/2") | Single Use | Polypropylene Equal Cross - Hose Connection Polypropylene 1/2" 0.42" 15.6 0.61" 111.2 4.38" 111.2 4.38" 0.022
    View Page → Equal Cross - Hose Connection (1/2") | Single Use | Polypropylene
    SFXEHB195PP-A
    		Equal Cross - Hose Connection (3/4") | Single Use | Polypropylene Equal Cross - Hose Connection Polypropylene 3/4" 0.67" 22 0.87" 147.1 5.79" 147.1 5.79" 0.03
    View Page → Equal Cross - Hose Connection (3/4") | Single Use | Polypropylene
    SFXEHB952PP-A
    		Equal Cross - Hose Connection (3/8") | Single Use | Polypropylene Equal Cross - Hose Connection Polypropylene 3/8" 0.3" 12.5 0.49" 75 2.95" 75 2.95" 0.016
    View Page → Equal Cross - Hose Connection (3/8") | Single Use | Polypropylene
    Equal Cross - Hose Connection (1/4
    Equal Cross - Hose Connection (1/4") | Single Use | Polypropylene
    Pharmaceutical
    SFXEHB635PP-A
    Equal Cross - Hose Connection (1/2
    Equal Cross - Hose Connection (1/2") | Single Use | Polypropylene
    Pharmaceutical
    SFXEHB127PP-A
    Equal Cross - Hose Connection (3/4
    Equal Cross - Hose Connection (3/4") | Single Use | Polypropylene
    Pharmaceutical
    SFXEHB195PP-A
    Equal Cross - Hose Connection (3/8
    Equal Cross - Hose Connection (3/8") | Single Use | Polypropylene
    Pharmaceutical
    SFXEHB952PP-A
