Description

ACL manufactures a comprehensive range of hygienic clamps and sealing products for use in the Data Center, Hygienic, and Pharmaceutical industries. The range includes standard clamps, safety clamps and a full selection of gaskets and ferrules designed to provide secure, leak-free connections across all common hygienic tube and pipe standards.

All ACL clamps and sealing products are manufactured to the highest standards of quality and precision, with surface finishes and materials that meet or exceed the requirements of ASME, BS, DIN and ISO standards. Quality and consistency are maintained through rigorous testing and batch sizing.

Specifications

Clamp MAWP calculated to ASME VIII APP 24
Surface finish: 0.8Ra µm minimum (external)
Gaskets comply with FDA and USP Class VI requirements
Ferrule surface finish: 0.8Ra µm or better

Features

Comprehensive range of clamps, gaskets and ferrules
Manufactured to ASME, BS, DIN and ISO standards
High-quality surface finishes as standard
Rigorous quality testing and batch consistency
Full range of gasket materials including EPDM, Silicone, Viton and PTFE
Safety clamp options available for high-risk process lines
Coloured wing nut options for easy line identification

Materials

Clamp material: Investment cast 316L stainless steel (ASME SA 351)
Gasket materials: EPDM, Silicone, Viton, PTFE, PEEK, TFM
Ferrule material: 316L stainless steel machined bar stock

Data Center

ACL products deliver strength, scalability, and long-term performance to meet the growing demands of advanced cooling and mechanical systems. Modular and configurable, our components support evolving data center layouts. Visit idealtridongroup.com/datacenters to explore ITG's full range of solutions. Use the contact form to reach our sales and engineering teams for product information, technical support, or a project quote.

Industry PART#	Product Name	Type	Size Imperial	Size Metric	Size ISO	Flange	Nut Type	Material	Pressure Rating	Length	Closing mechanism	Add To Cart LIST PRICE
Pharmaceutical SHWNDW21706	Tri-Clamp (8") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut	SH	8"			217.4(mm)/8.56"(in)	Wingnut	316L	20(MAWP)/290.08(PSI)	332(mm)/13.07"(in)	2-Bolt	Contact Customer Service For Access To Availability & Ordering

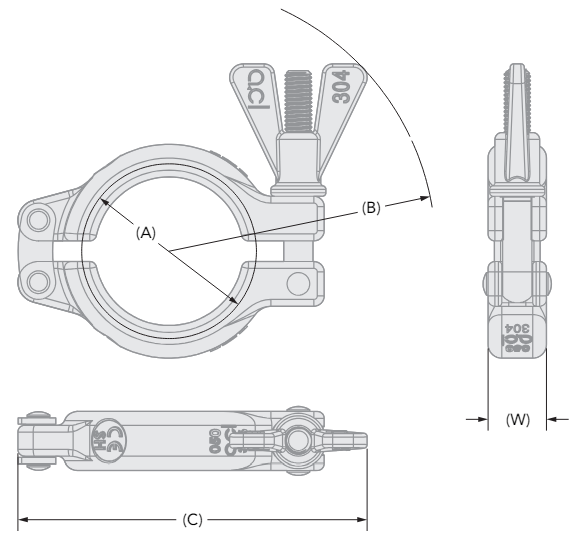

View Page Tri-Clamp (8") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut Legacy Part Number IE: CL.SHD.0800 Legacy Part Number UK: CL.SHD.0800 - 8" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD0800 Dimensional Image Key: • Flange (A) mm: 217.4 • Flange (A) in: 8 1/2" • B in: 7.24" • B mm: 184 • C mm: 332 • C in: 13.07" • W mm: 24 • W in: 0.94"
Pharmaceutical SHWNDW23306	Tri-Clamp (8 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut	SH	8 5/8"	DN 200(DIN)	DN 200(ISO)	233.5(mm)/9.19"(in)	Wingnut	316L	20(MAWP)/290.08(PSI)	353(mm)/13.9"(in)	2-Bolt	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (8 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut Legacy Part Number IE: CL.SHD.0858 Legacy Part Number UK: CL.SHD.0858 - 8 5/8" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD0858 Dimensional Image Key: • Flange (A) mm: 233.5 • Flange (A) in: 9 1/8" • B in: 7.28" • B mm: 185 • C mm: 353 • C in: 13.90" • W mm: 24 • W in: 0.94"
Pharmaceutical SHWNDW26806	Tri-Clamp (10") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut	SH	10"	DN 250(DIN)		268(mm)/10.55"(in)	Wingnut	316L	16(MAWP)/232.06(PSI)	382(mm)/15.04"(in)	2-Bolt	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (10") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut Legacy Part Number IE: CL.SHD.1000 Legacy Part Number UK: CL.SHD.1000 - 10" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD1000 Dimensional Image Key: • Flange (A) mm: 268 • Flange (A) in: 10 1/2" • B in: 8.07" • B mm: 205 • C mm: 382 • C in: 15.04" • W mm: 24 • W in: 0.94"
Pharmaceutical SHWNDW28606	Tri-Clamp (10 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut	SH	10 5/8"		DN 250(ISO)	286.1(mm)/11.26"(in)	Wingnut	316L	16(MAWP)/232.06(PSI)	405(mm)/15.94"(in)	2-Bolt	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (10 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut Legacy Part Number IE: CL.SHD.1058 Legacy Part Number UK: CL.SHD.1058 - 10 5/8" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD1058 Dimensional Image Key: • Flange (A) mm: 286.1 • Flange (A) in: 11 1/4" • B in: 8.39" • B mm: 213 • C mm: 405 • C in: 15.94" • W mm: 24 • W in: 0.94"
Pharmaceutical SHWNDW31906	Tri-Clamp (12") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut	SH	12"	DN 300(DIN)		319(mm)/12.56"(in)	Wingnut	316L	10(MAWP)/145.04(PSI)	458(mm)/18.03"(in)	2-Bolt	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (12") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut Legacy Part Number IE: CL.SHD.1200 Legacy Part Number UK: CL.SHD.1200 - 12" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD1200 Dimensional Image Key: • Flange (A) mm: 319 • Flange (A) in: 12 1/2" • B in: 9.53" • B mm: 242 • C mm: 458 • C in: 18.03" • W mm: 24 • W in: 0.94"
Pharmaceutical SHWNDW33806	Tri-Clamp (12 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut	SH	12 5/8"		DN 300(ISO)	338(mm)/13.31"(in)	Wingnut	316L	10(MAWP)/145.04(PSI)	463(mm)/18.23"(in)	2-Bolt	Contact Customer Service For Access To Availability & Ordering
View Page Tri-Clamp (12 5/8") \| Type SH (Double Bolt) \| Stainless Steel 316L \| Wingnut Legacy Part Number IE: CL.SHD.1258 Legacy Part Number UK: CL.SHD.1258 - 12 5/8" SH CLAMP 316 (DOUBLE Legacy Part Number DK: CLSHD1258 Dimensional Image Key: • Flange (A) mm: 338 • Flange (A) in: 13 1/4" • B in: 9.57" • B mm: 243 • C mm: 463 • C in: 18.23" • W mm: 24 • W in: 0.94"
Hygienic SHWN0002504	Hygienic Tri-Clamp (1/4" - 3/4") \| Type SH \| Stainless Steel 304L \| Wingnut	SH					Wingnut	304L	50(MAWP)/725.1886887(PSI)		2-Pin	Log In or Create a Free Account to Purchase $11.72
View Page Hygienic Tri-Clamp (1/4" - 3/4") \| Type SH \| Stainless Steel 304L \| Wingnut Legacy Part Number UK: CL.SH4.0050 - 1/2" Legacy Part Number DK: CLSH40050 Dimensional Image Key: • Flange (A) mm: 25.4 • Flange (A) in: 1" • B in: 2.56" • B mm: 65 • C mm: 75 • C in: 2.95" • W mm: 17 • W in: 0.67"
Hygienic SHWN0005004	Hygienic Tri-Clamp (1" - 1 1/2") \| Type SH \| Stainless Steel 304L \| Wingnut	SH					Wingnut	304L	50(MAWP)/725.1886887(PSI)		2-Pin	Log In or Create a Free Account to Purchase $15.17
View Page Hygienic Tri-Clamp (1" - 1 1/2") \| Type SH \| Stainless Steel 304L \| Wingnut Legacy Part Number UK: CL.SH4.0100 - 1" - 1 1/2" SH CLAMP 304 Legacy Part Number DK: CLSH40100 Dimensional Image Key: • Flange (A) mm: 50.5 • Flange (A) in: 2" • B in: 3.03" • B mm: 77 • C mm: 102 • C in: 4.02" • W mm: 17 • W in: 0.67"
Hygienic SHWN0006404	Hygienic Tri-Clamp (2") \| Type SH \| Stainless Steel 304L \| Wingnut	SH					Wingnut	304L	50(MAWP)/725.1886887(PSI)		2-Pin	Log In or Create a Free Account to Purchase $17.79
View Page Hygienic Tri-Clamp (2") \| Type SH \| Stainless Steel 304L \| Wingnut Legacy Part Number UK: CL.SH4.0200 - 2" SH CLAMP 304 Legacy Part Number DK: CLSH40200 Dimensional Image Key: • Flange (A) mm: 64 • Flange (A) in: 2 1/2" • B in: 3.66" • B mm: 93 • C mm: 123 • C in: 4.84" • W mm: 17 • W in: 0.67"
Hygienic SHWN0007704	Hygienic Tri-Clamp (2 1/2") \| Type SH \| Stainless Steel 304L \| Wingnut	SH					Wingnut	304L	50(MAWP)/725.1886887(PSI)		2-Pin	Log In or Create a Free Account to Purchase $19.73
View Page Hygienic Tri-Clamp (2 1/2") \| Type SH \| Stainless Steel 304L \| Wingnut Legacy Part Number UK: CL.SH4.0250 - 2 1/2" SH CLAMP 304 Legacy Part Number DK: CLSH40250 Dimensional Image Key: • Flange (A) mm: 77.5 • Flange (A) in: 3" • B in: 3.94" • B mm: 100 • C mm: 140 • C in: 5.51" • W mm: 17 • W in: 0.67"
Hygienic SHWN0009104	Hygienic Tri-Clamp (3") \| Type SH \| Stainless Steel 304L \| Wingnut	SH					Wingnut	304L	40(MAWP)/580.1509509(PSI)		2-Pin	Log In or Create a Free Account to Purchase $21.87
View Page Hygienic Tri-Clamp (3") \| Type SH \| Stainless Steel 304L \| Wingnut Legacy Part Number UK: CL.SH4.0300 - 3" SH CLAMP 304 Legacy Part Number DK: CLSH40300 Dimensional Image Key: • Flange (A) mm: 91 • Flange (A) in: 3 1/2" • B in: 4.13" • B mm: 105 • C mm: 150 • C in: 5.91" • W mm: 17 • W in: 0.67"
Hygienic SHWN0010604	Hygienic Tri-Clamp (3 1/2") \| Type SH \| Stainless Steel 304L \| Wingnut	SH					Wingnut	304L	40(MAWP)/580.1509509(PSI)		2-Pin	Log In or Create a Free Account to Purchase $22.89
View Page Hygienic Tri-Clamp (3 1/2") \| Type SH \| Stainless Steel 304L \| Wingnut Legacy Part Number UK: 3 1/2" SH CLAMP 304 Legacy Part Number DK: CLSH40350 Dimensional Image Key: • Flange (A) mm: 106 • Flange (A) in: 4 1/8" • B in: 4.33" • B mm: 110 • C mm: 165 • C in: 6.50" • W mm: 17 • W in: 0.67"
